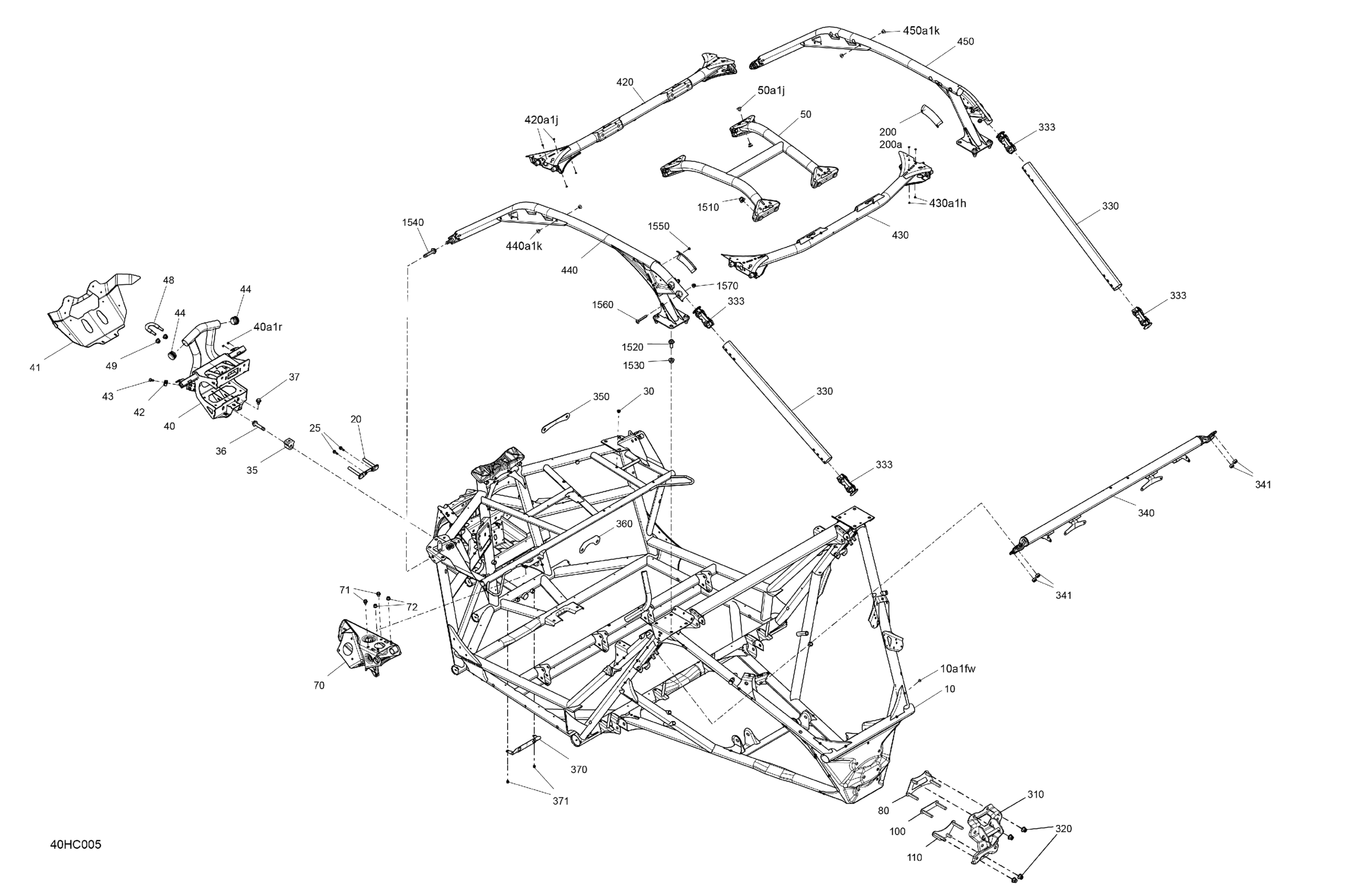

Can-Am Maverick Turbo RR - XMR - 2023 Frame - System Diagram

#

Description
Price

10

Black, Frame Kit

715009098

$3,459.99

10

Liquid Titan, Frame Kit

715009100

$3,459.99

10a1fw

Pop Rivet 3/16"

390402200

$0.26

20

Front Plate

705207424

$17.88

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

30

Insert Half Hex Body M6 x 1.0

250100199

$2.54

35

Bumper Link

705206992

$14.90

36

Flange Screw M12 X 60

250000857

$6.08

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

40

Front Bumper Kit | Model Width 72 in.

715007603

$342.51

40a1r

Pop Rivet 3/16"

390402200

$0.26

41

Front Master Plate

715006996

$188.78

42

Panel Nut M6 X 1.0

250100198

$1.73

43

Torx Screw M6 X 20

250000722

$1.34

44

Cap

705202455

$4.27

48

U-Clamp

705206983

$35.04

49

Hex. Flange Elastic Nut M10

233201436

$1.74

50

Liquid Titan, Reinforcement Cage | Includes 50 to 50a1j

705209864

$91.99

50

Deep Black, Reinforcement Cage | Includes 50 to 50a1j

705210064

$91.99

50a1j

Pop Rivet 3/16"

390402200

$0.26

70

DPS Support

705206924

$64.15

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

72

Hex. Elastic Flange Nut M8

233281416

$1.25

80

Rear Upper Plate

705211557

$17.13

100

Rear Central Plate

705211558

$17.13

110

Rear Lower Plate

705211556

$16.39

200

Deep Black, Upper Plate Kit

705211599

$23.10

200

Liquid Titan, Upper Plate Kit

705211601

$24.60

200a

Black, LH Link Plate | Except Model Gold

705205926

$23.10

200a

Liquid Titan, Connecting Plate

705209866

$24.60

310

Junction Plate Kit

715008492

$40.27

320

Elastic Flange Nut M12

250001195

$2.15

330

Liquid Titan, Rear Pillar

705209861

$24.99

330

Deep Black, Rear Pillar

705210066

$24.99

333

Sleeve

705210648

$8.42

340

Safety Belt Anchorage

705210001

$112.66

341

Elastic Stop Nut M12

232521416

$1.40

350

Connecting Plate

705211552

$4.81

360

Retaining Plate

705210249

$4.72

370

Support

706203122

$10.67

371

Pop Rivet 3/16"

390402200

$0.26

420

Liquid Titan, Front Cross Member | Includes 420 to 420a1j

705209868

$204.99

420

Deep Black, Front Cross Member | Includes 420 to 420a1j

705210068

$194.74

420a1j

Pop Rivet 3/16"

390402200

$0.26

430

Liquid Titan, Rear Cross Member | Includes 430 to 430a1h

705209870

$194.74

430

Deep Black, Rear Cross Member | Includes 430 to 430a1h

705210070

$204.99

430a1h

Pop Rivet 3/16"

390402200

$0.26

440

Black, LH Cage Kit

715008442

$399.99

440

Liquid Titan, LH Cage Kit

715008446

$399.99

440a1k

Pop Rivet 3/16"

390402200

$0.26

450

Black, RH Cage Kit

715008456

$399.99

450

Liquid Titan, RH Cage Kit

715008460

$399.99

450a1k

Pop Rivet 3/16"

390402200

$0.26

1510

Elastic Flange Nut M12

250001195

$2.15

1520

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

1530

Elastic Flange Nut M12

250001195

$2.15

1540

Flange Screw M12 X 60

250000857

$6.08

1550

Rivet 3/16"

293150102

$0.69

1560

Torx Truss M8 X 65

250000901

$1.56

1570

Elastic Flange Nut M8

250100025

$1.25
