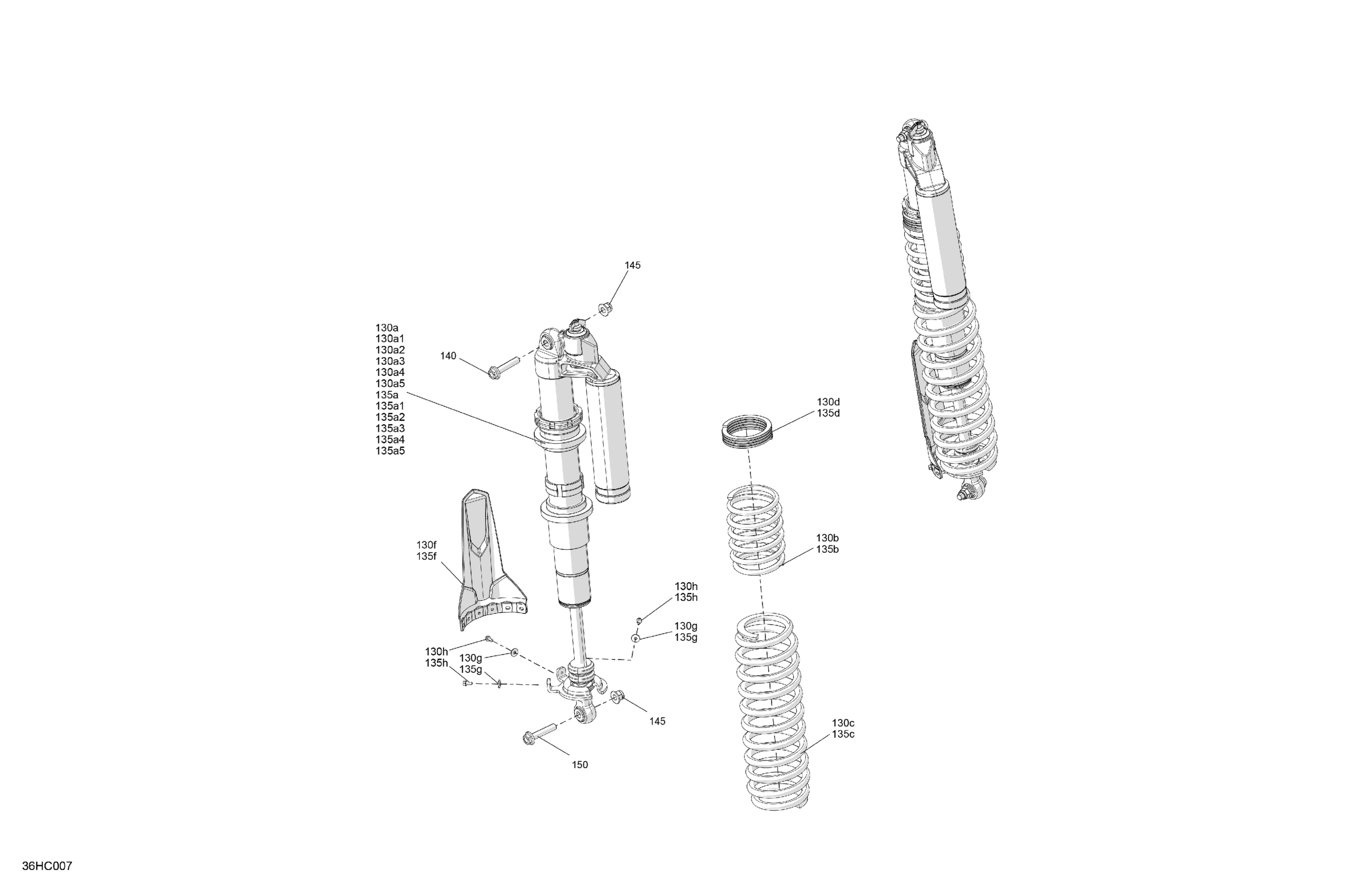

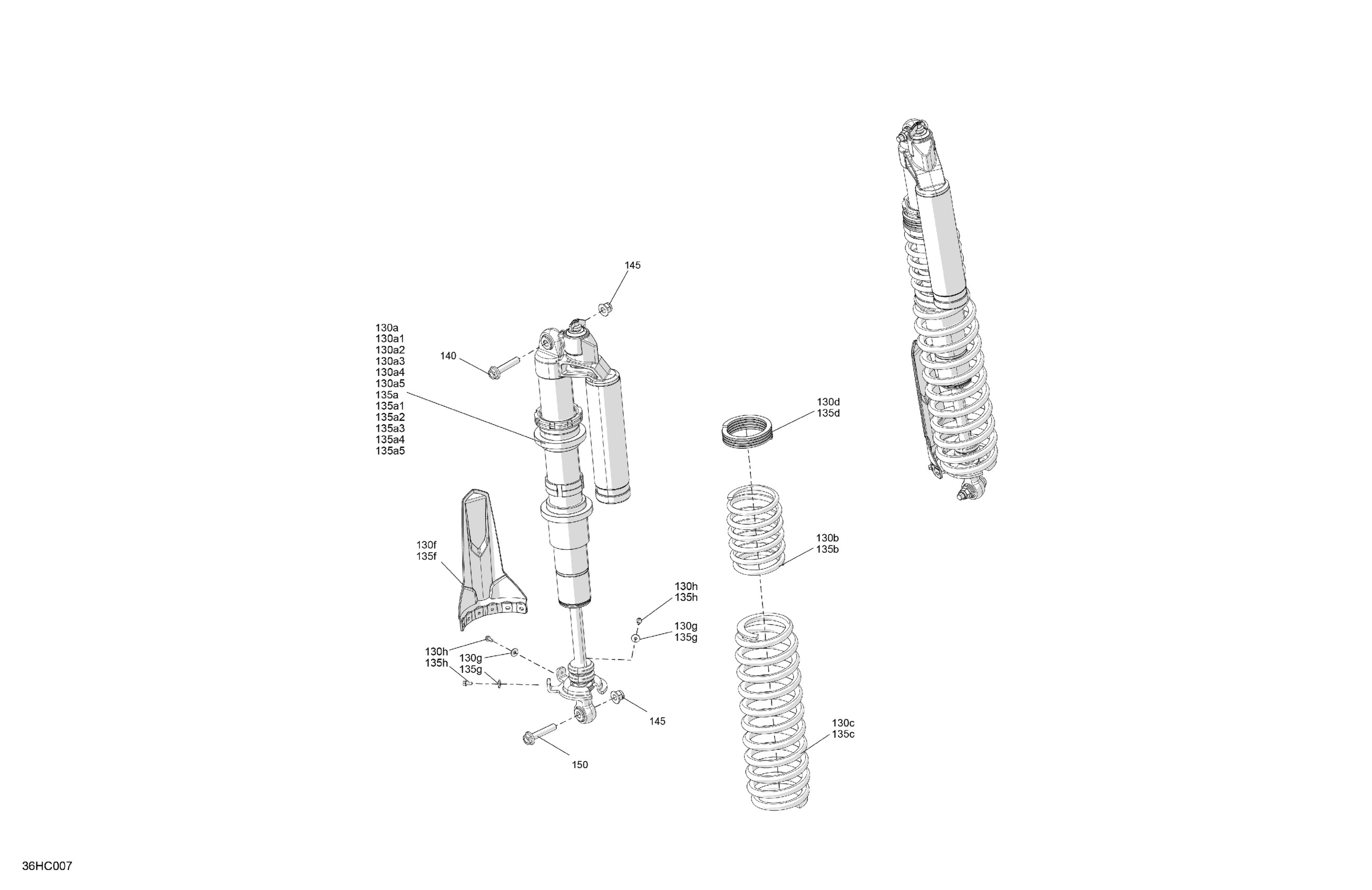

Can-Am Maverick Turbo RR - XMR - 2023 Suspension - Rear Shocks - 64in Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a5

706004808

$905.19

130a1

Spherical Bearing

715900337

$79.07

130a2

Ball Joint

706004078

$44.00

130a3

O-Ring Bushing

715900338

$10.55

130a4

Circlip

715900480

$10.24

130a5

Reducer

715900481

$24.60

130b

Magma Red, Compression Spring

706005119

$87.28

130c

Magma Red, Compression Spring

706005147

$130.57

130d

Magma Red, Compression Spring

706005115

$64.90

130f

Protector

706202215

$8.66

130g

Washer M5

250200025

$0.61

130h

Hex Flange Screw M5 X 11

210251150

$1.74

135a

RH Rear Adjustable Shock Absorber

706004809

$895.49

135a1

Spherical Bearing

715900337

$79.07

135a2

Ball Joint

706004078

$44.00

135a3

O-Ring Bushing

715900338

$10.55

135a4

Circlip

715900480

$10.24

135a5

Reducer

715900481

$24.60

135b

Magma Red, Compression Spring

706005119

$87.28

135c

Magma Red, Compression Spring

706005147

$130.57

135d

Magma Red, Compression Spring

706005115

$64.90

135f

Protector

706202215

$8.66

135g

Washer M5

250200025

$0.61

135h

Hex Flange Screw M5 X 11

210251150

$1.74

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

250001195

$2.15

150

Flange Screw M12 X 60

250000857

$6.08
