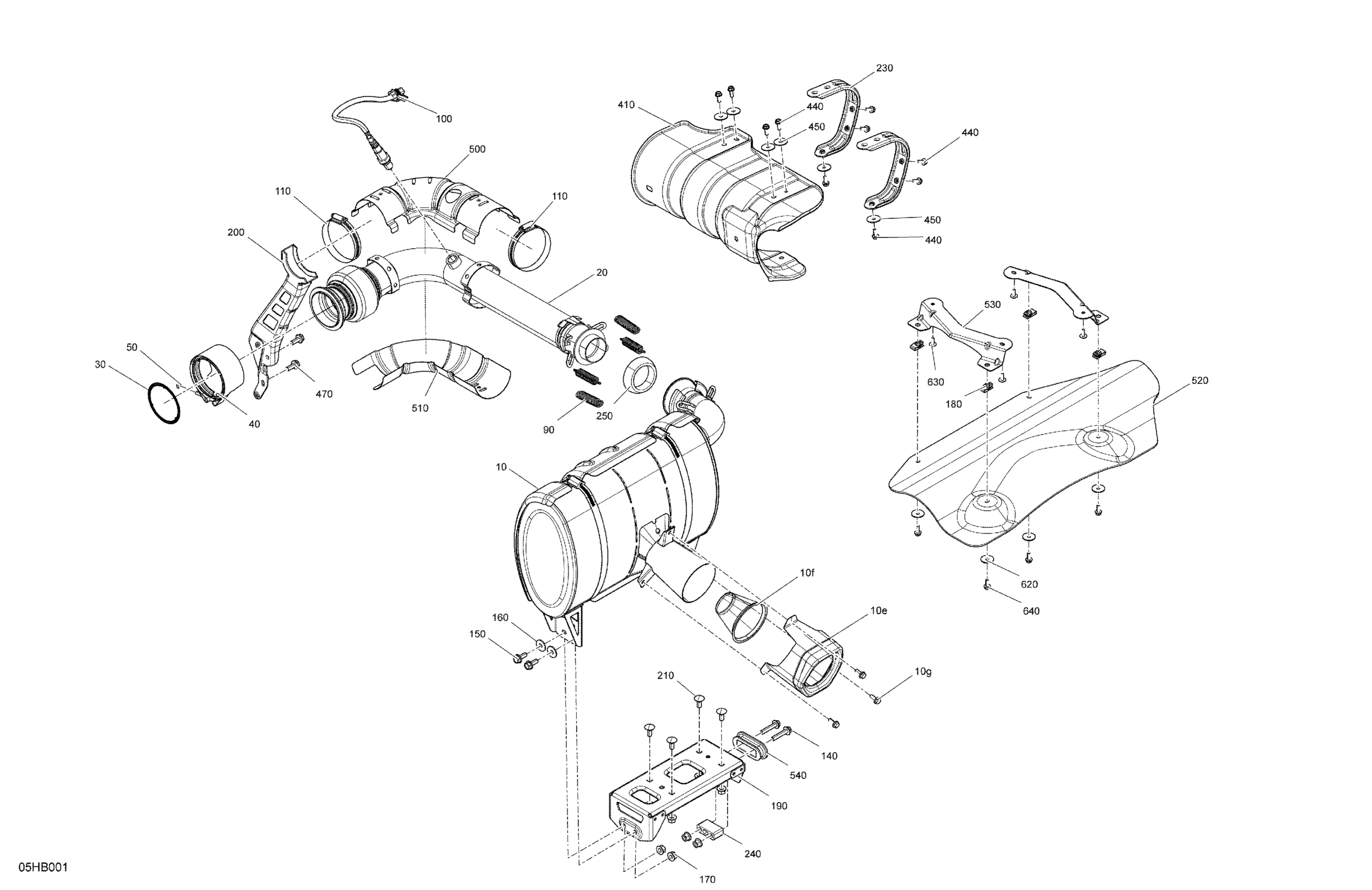

Can-Am Maverick MAX Turbo - DS - 2022 Engine - Exhaust Diagram

#

Description
Price

10

Exhaust Muffler Ass'y | Includes 10 to 10h

707602827

$819.99

10e

Heat Shield | Includes 10f to 10f2

707602046

$30.99

10f

Spark Arrestor | Not Shown

707602087

$35.99

10g

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

20

Exhaust Pipe

707603333

$174.99

30

Seal

707601835

$38.99

40

V Clamp

707602570

$59.99

50

Nut

707602143

$6.19

90

Spring

707601834

$6.35

100

Oxygen Sensor

707600872

$144.99

110

Gear Clamp

293650255

$12.71

140

Hex. Flange Screw M8 X 40

207684044

$1.48

150

Hex. Flange Screw M8 X 20

207682046

$1.90

160

Flat Washer 8 mm

234082410

$1.47

170

Hex. Flange Nut

233081436

$2.00

180

Panel Nut M6 X 1.0

250100198

$2.11

190

Muffler Support

707601765

$30.49

200

Exhaust Mount | Includes 200 to 200c

707602815

$30.49

210

Carriage Bolt, M8 X 20

207782044

$1.90

230

C Support

707601896

$30.49

240

Muffler Stopper

707601897

$3.29

250

Gasket

707601908

$23.99

410

Lateral Heat Shield

707601768

$22.49

440

Hex. Flange Screw M6 X 12

210261250

$1.90

450

Washer | Not Shown

503193995

$4.54

470

Hex Screw Washer Head M8 X 20

207582054

$3.17

500

Upper Heat Shield

707601795

$27.99

510

Lower Heat Shield

707601796

$27.99

520

Heat Shield

707602771

$114.99

530

Support

707602773

$5.40

540

Rubber Stopper

707601845

$20.99

620

Washer

224060251

$0.58

630

Screw PT Type K-50 X 16

250000959

$2.11

640

Hex. Flange Screw M6 X 16

210261650

$1.67
