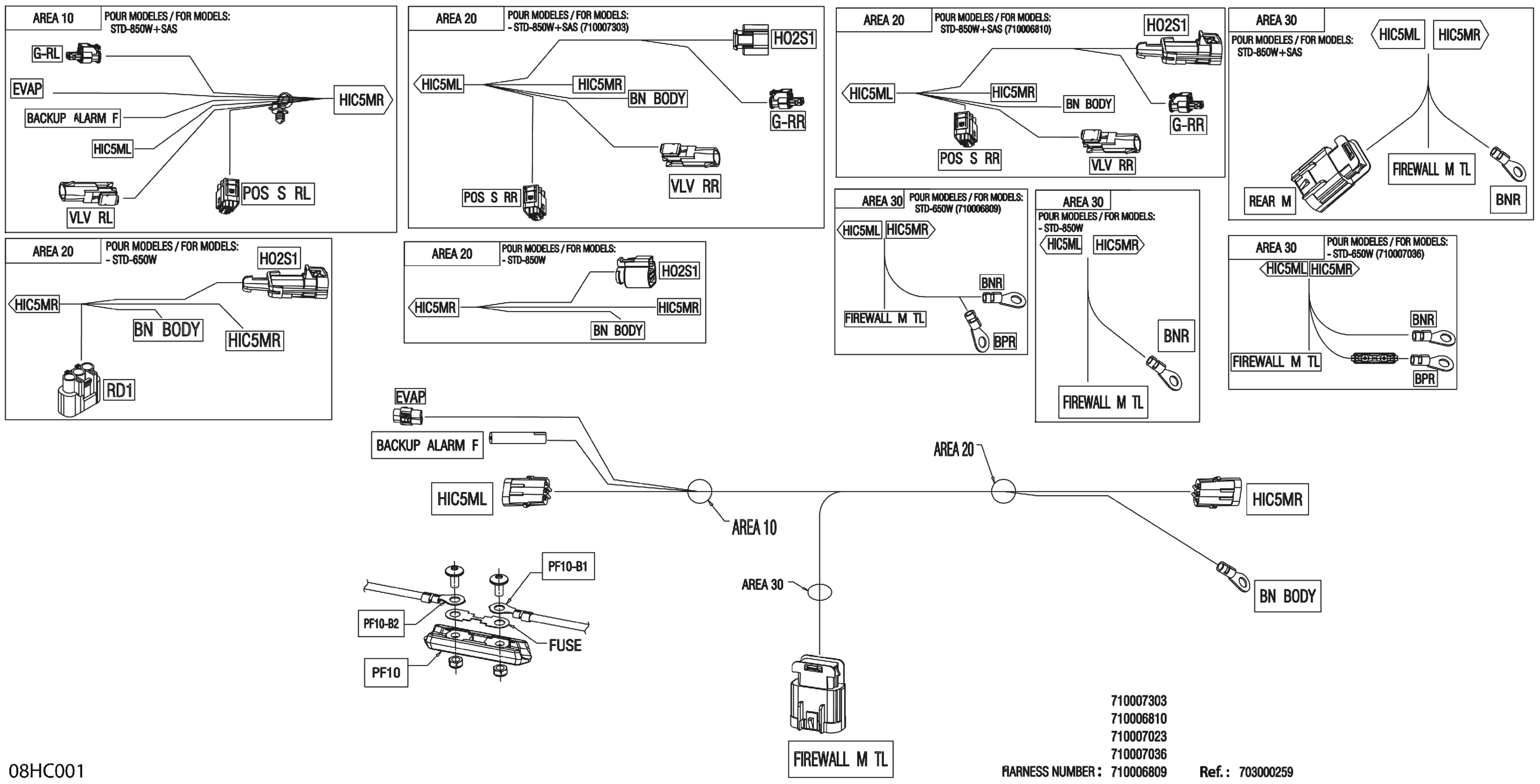

Can-Am Maverick Turbo - DS - 2023 Electric - Junction Wiring Harness - 710007036 Diagram

Description

Price

Junction Wiring Harness

710007036

$87.28

BACKUP ALARM F

Insulated Sheath

278001007

$3.12

BACKUP ALARM F

Female Terminal

710000421

$5.30

BN BODY

Open Barrel Terminal

278001392

$4.00

BNR

Terminal

710000913

$5.30

BPR

Open Barrel Terminal

278001392

$4.00

EVAP

Wire Seal

710000402

$4.28

EVAP

Female Terminal

409012100

$3.73

FIREWALL M TL

Clip

710000992

$3.88

FIREWALL M TL

Housing

710001952

$10.12

FIREWALL M TL

Lock

710006361

$0.73

FIREWALL M TL

Cap

710001225

$7.27

FIREWALL M TL

Seal

710001233

$2.55

FIREWALL M TL

Terminal

710001224

$2.93

HIC5ML

Clip

710000992

$3.88

HIC5ML

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

HIC5ML

Wire Seal

278001065

$5.85

HIC5ML

Male Terminal | XT Models

278000222

$2.55

HIC5MR

Clip

710000992

$3.88

HIC5MR

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

HIC5MR

Wire Seal

278001065

$5.85

HIC5MR

Male Terminal | XT Models

278000222

$2.55

HO2S1

Clip

710001343

$6.88

HO2S1

Housing

710002466

$2.90

HO2S1

Holder | XMR

710002006

$2.84

HO2S1

Lock

710002469

$1.93

HO2S1

Seal

278001482

$2.55

HO2S1

Gold Terminal

710002597

$2.90

PF10

Fuse Holder Support

710007204

$8.26

PF10-B1

Terminal Ring

515177799

$7.24

PF10-B2

Terminal Ring

515177799

$7.24

PF10-F1

50A Fuse

710007318

$18.82

RD1

Female Housing, 3 Circuits

710000879

$21.42

RD1

Cap

710000882

$9.19

RD1

Seal

710001932

$3.06

RD1

Terminal

710001934

$4.51
