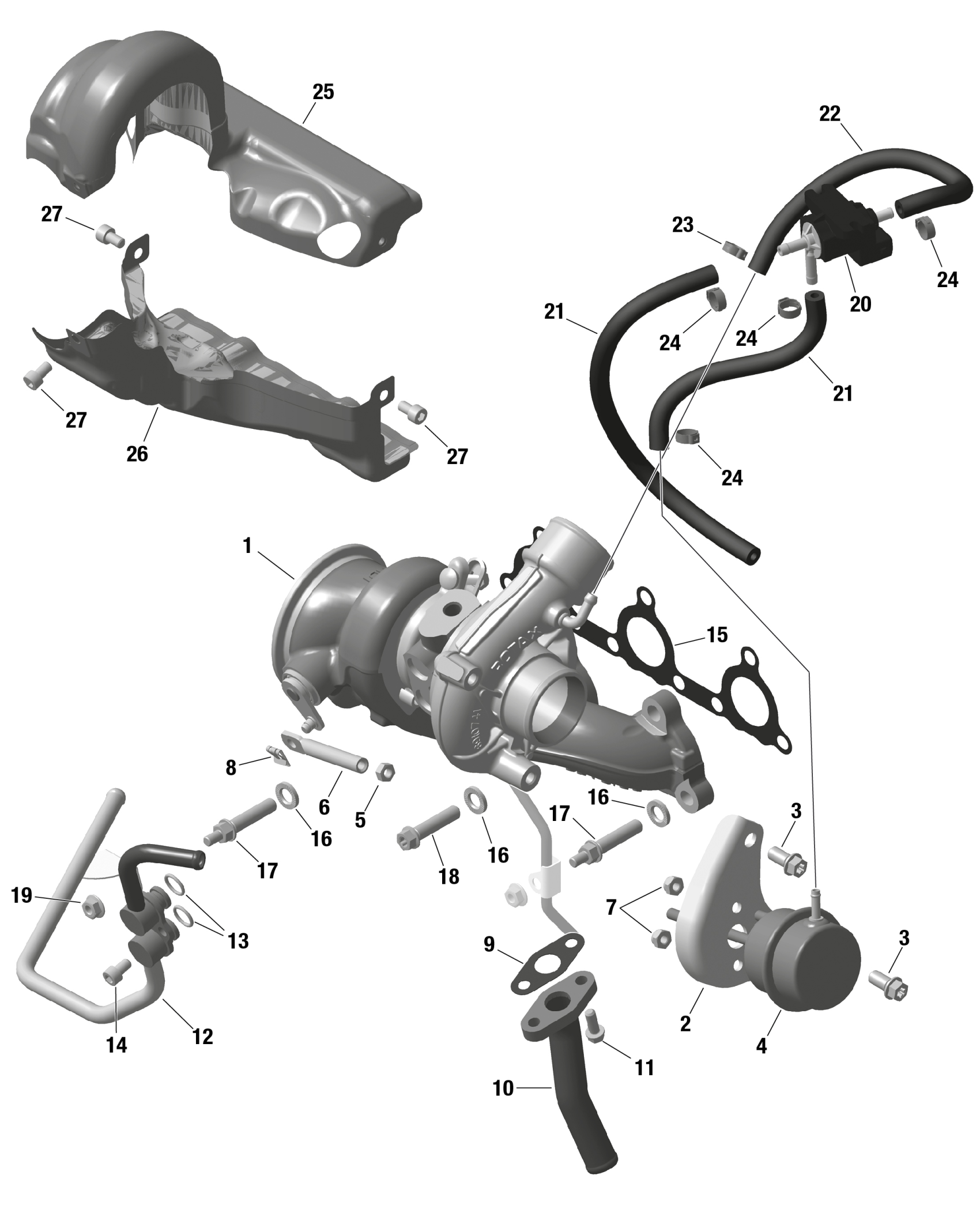

Can-Am Maverick Turbo - DS - 2023 ROTAX - Turbocharger Diagram

#

Description
Price

1

TC2 Turbocharger Ass'y | Includes no. 1-11 Engine version 35903390; 35903395;

420893745

$1,869.97

8

Circlip

420845000

$0.98

9

Gasket | Included in gasket kit

420631205

$3.43

10

Oil Return Line

420456455

$58.43

11

Torx Flange Screw M6 X 16

420440164

$1.72

12

Water Cooling Tube

420822842

$149.97

13

O-Ring | Included in gasket kit

420650929

$3.11

14

Allen Screw M6 X 10

420241081

$1.74

15

Gasket | Included in gasket kit

420431850

$15.19

16

Washer

420827521

$5.35

17

Collar Screw M8 X 35

420440693

$4.51

18

Torx Flange Screw M8 X 35

420641188

$6.11

19

Hex Nut M6-10

420842890

$1.82

20

Solenoid Valve

420664636

$120.74

21

Hose 640mm

420260283

$22.79

22

Hose 640mm

420260283

$22.79

23

Gear Clamp

420851463

$7.14

24

Clamp 9.2-10.9 mm

420853133

$2.95

25

Upper Heat Shield

420975120

$210.74

26

Lower Heat Shield

420975125

$243.82

27

Allen Screw M6 X 10

420241081

$1.74
