Description

Price

1

Counter Shaft

420637506

$370.49

2

Main Shaft | Includes no. 2-6

420637778

$919.99

7

Thrust Washer

420427082

$20.99

8

Intermediate Shaft

420637546

$360.49

9

Intermediate Gear Ass'y | Includes no. 9-12

420435875

$99.49

13

Shifting Drum | Includes no. 10-11

420657547

$309.99

14

Needle Pin

420932780

$7.41

15

Fork Spindle

420657432

$38.99

16

Shifting Block

420657476

$25.99

17

Spring

420638077

$2.68

18

Shift Fork Ass'y

420257001

$36.99

19

Gearshift Fork Ass'y

420657559

$164.99

20

Spring

420638072

$2.68

21

Spring Seat

420427140

$2.59

22

Retaining Ring

420945470

$5.50

23

Shift Shaft With Gear

420637569

$119.99

24

Drive Gear 48T

420934080

$349.99

28

Shifting Sleeve

420257674

$129.99

29

Shifting Fork

420257606

$48.99

30

Needle Pin

420832650

$7.73

31

Hex Screw M6 X 8

420841581

$1.15

32

Spring

420638075

$3.98

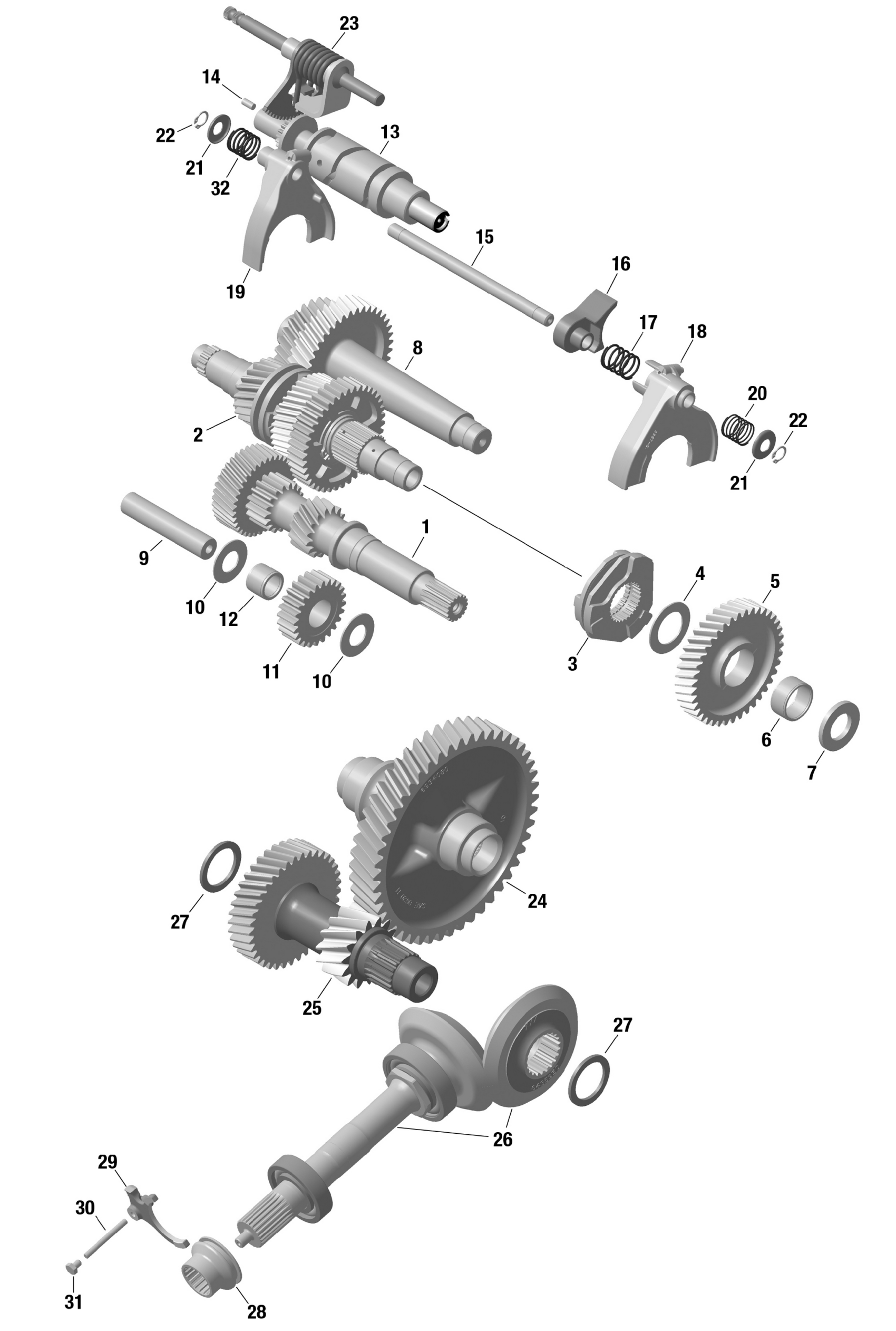

Can-Am Maverick Turbo - DS - 2023 ROTAX - GEARBOX 2 Diagram

Counter Shaft

Main Shaft | Includes no. 2-6

Thrust Washer

Intermediate Shaft

Intermediate Gear Ass'y | Includes no. 9-12

Shifting Drum | Includes no. 10-11

Needle Pin

Fork Spindle

Shifting Block

Spring

Shift Fork Ass'y

Gearshift Fork Ass'y

Spring

Spring Seat

Retaining Ring

Shift Shaft With Gear

Drive Gear 48T

Shifting Sleeve

Shifting Fork

Needle Pin

Hex Screw M6 X 8

Spring
