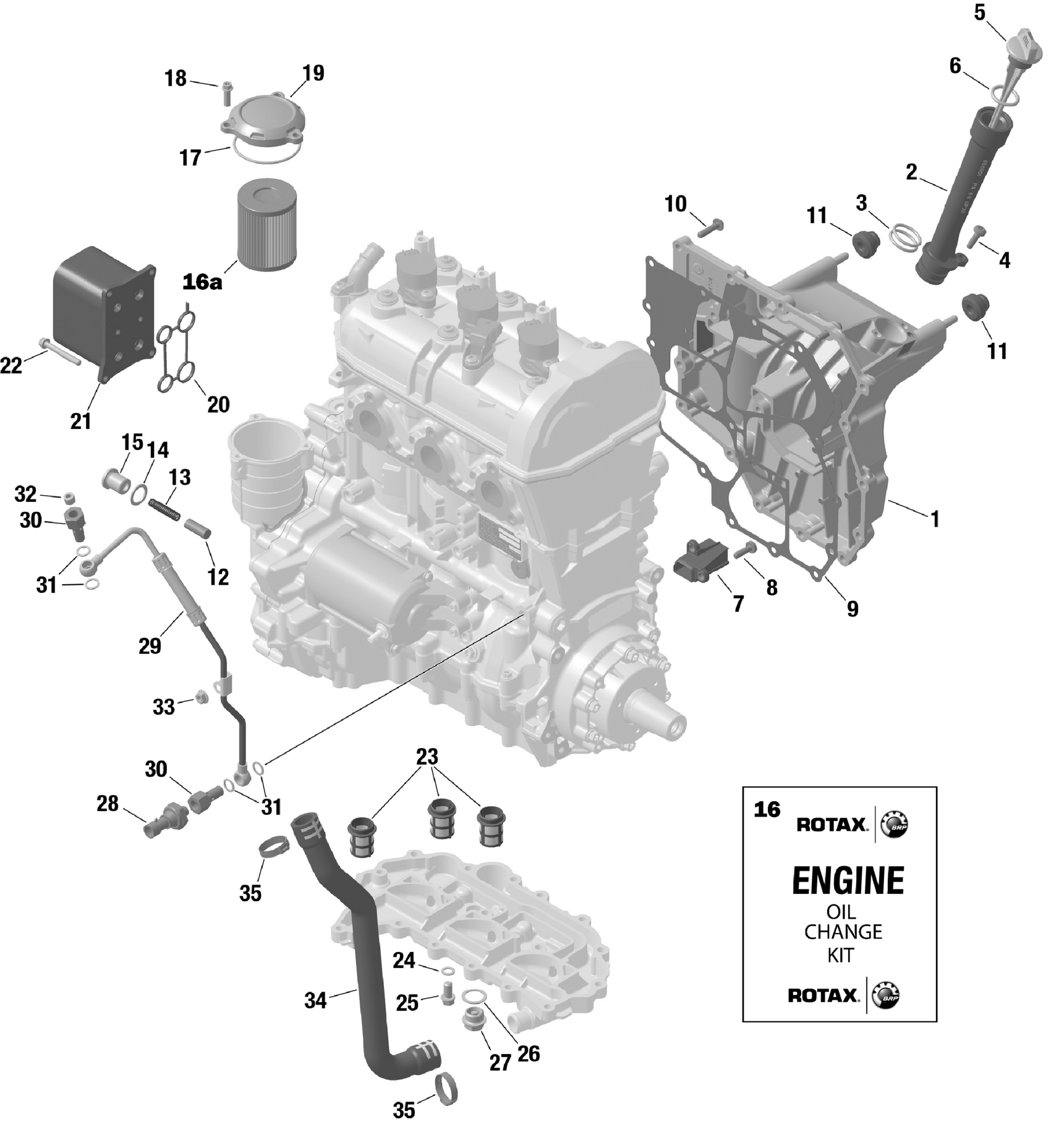

Can-Am Maverick Turbo - DS - 2023 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$90.97

2

Oil Filler Tube

420656901

$9.19

3

O-Ring

420430440

$3.49

4

Torx Flange Screw M6 X 20

420441383

$4.39

5

Oil Dipstick

420856668

$12.34

6

O-Ring

420631640

$2.00

7

Oil Suction Pipe

420456260

$11.33

8

Torx Flange Screw M6 X 20

420441383

$4.39

9

Oil Sump Cover Gasket | Included in gasket kit

420431848

Unavailable

10

Torx Flange Screw M6 X 25

420841548

$4.39

11

Rubber Grommet

420860150

$4.41

12

Pressure Regulating Piston

420256591

$10.58

13

Spring

420239445

$10.58

14

Gasket Ring

420430624

$1.51

15

Plug Screw

420441373

$11.01

16

CAN-AM Oil CHange Kit 5W40 900 CC

9779260

$92.51

16

CAN-AM Oil CHange Kit 10W50 900 CC

9779261

$82.52

16a

Oil Filter

420956123

$11.14

17

O-Ring

420230923

$2.59

18

Torx Flange Screw M6 X 20

420440207

$2.54

19

Oil Filter cover

420612135

$10.78

20

Gasket

420431871

$8.83

21

Oil Water Heat Exchanger

420656689

$148.48

22

Torx Flange Screw M6 X 45

420440324

$0.81

23

Oil Sieve

420656680

$8.72

24

Sealing Ring

420950141

$1.64

25

Torx Flange Screw M8 X 16

420440852

$3.88

26

Crush Washer

420552280

$2.99

27

Drain Plug M18 X 1.5

420840278

$22.36

28

Oil Pressure Switch

420256915

$37.28

29

Pressure Oil Line

420456451

$147.73

30

Spacer

420947580

$11.33

31

Oil Seal

420230154

$2.85

32

Plug Screw M10 X 1

420641323

$11.48

33

Hex Nut M6-10

420842890

$1.76

34

Molded Hose

420201743

$41.01

35

Clamp

420251578

$7.05
