Description

Price

1

O-Ring

420450431

$5.29

2

O-Ring

420450520

$3.19

3

CVT Air Guide Ass'y | Includes no. 3-6

420212707

$249.99

4

CVT Cover

420827502

$9.26

5

O-Ring

420950815

$5.82

6

Torx Screw M5 X 12

420640086

$2.11

7

Gasket

420450405

$31.99

8

Hex.Screw M6 X 20

420441311

$5.18

9

Variator Cover

420212508

$190.49

10

Insulating Mat

420897385

$42.49

11

Trim Button

420651816

$1.04

12

Cap

420441820

$11.63

13

O-Ring

420250052

$10.43

14

Torx Screw 6X30

420441575

$3.06

15

P-Drive Pulley Ass'y | Includes no. 15-40

420686871

$1,069.99

15a

Governor Cup Ass'y | Includes no. 10-16

420280761

$289.99

16

Stopper Spring

417224910

$10.16

17

Spring Support

420427801

$11.99

18

Roller Thrust Set | Includes no. 13-16

420629237

$132.49

19

Thrust Washer

420626233

$7.39

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Outer Half Ass'y | no. 17. 21-24 included

420280816

$359.99

22a

Roller Set | Includes no. 21-24

420629224

$169.49

23

Back Torque Roller

417224153

$16.99

24

Ext Roller Pulley

420629222

$35.99

25

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

26

Pin

417224510

$9.95

27

Roller Lever Ass'y

420248734

$35.99

28

Pin Ramp

417224694

$10.49

29

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

30

Compression Spring, Drive Pulley

420638133

$30.49

31

Spring Support

420427809

$11.99

32

Seat Spring

420427354

$10.49

33

Circlip

293370116

$3.28

34

Governor Cup Torque Flange

420280275

$58.99

35

Hex Screw M8 X 2

420841085

$1.90

36

Flasque Fixe Ass.

420280811

$209.99

37

Washer

420427220

$4.86

38

Needle Roller Bearing With Sleeves

420832351

$49.99

39

Stop Sleeve

420660284

$18.49

40

Retaining Ring 35 x 1.5

420845741

$7.99

41

Washer

420245690

$4.86

42

Hexagonal Screw M14X 165

420841161

$29.49

43

Drive Belt

422280652

$239.99

44

Sliding Pulley Ass'y

420280636

$349.99

44

Driven Pulley | Includes no. 44-53

420686533

$679.99

45

Outer Half Pulley Ass'y

420280626

$349.99

46

Pulley Roller

417127016

$24.49

47

Thrust Washer

420227946

$2.51

48

Bearing Pin

420629192

$16.34

49

Torx Screw M4 X 20

420841531

$2.09

50

Spring Support

420427805

$11.17

51

Compression Spring

420638135

$35.99

52

Cam 48/52 Ass'y

420280846

$169.49

53

Torx Flange Screw M10 X 40

420841711

$2.09

54

Collar Washer

420427243

$16.40

55

Hexagonal Screw M10X 61

420441990

$19.49

56

Washer

420245690

$4.86

57

Not Available As Spare Parts

XXX

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable

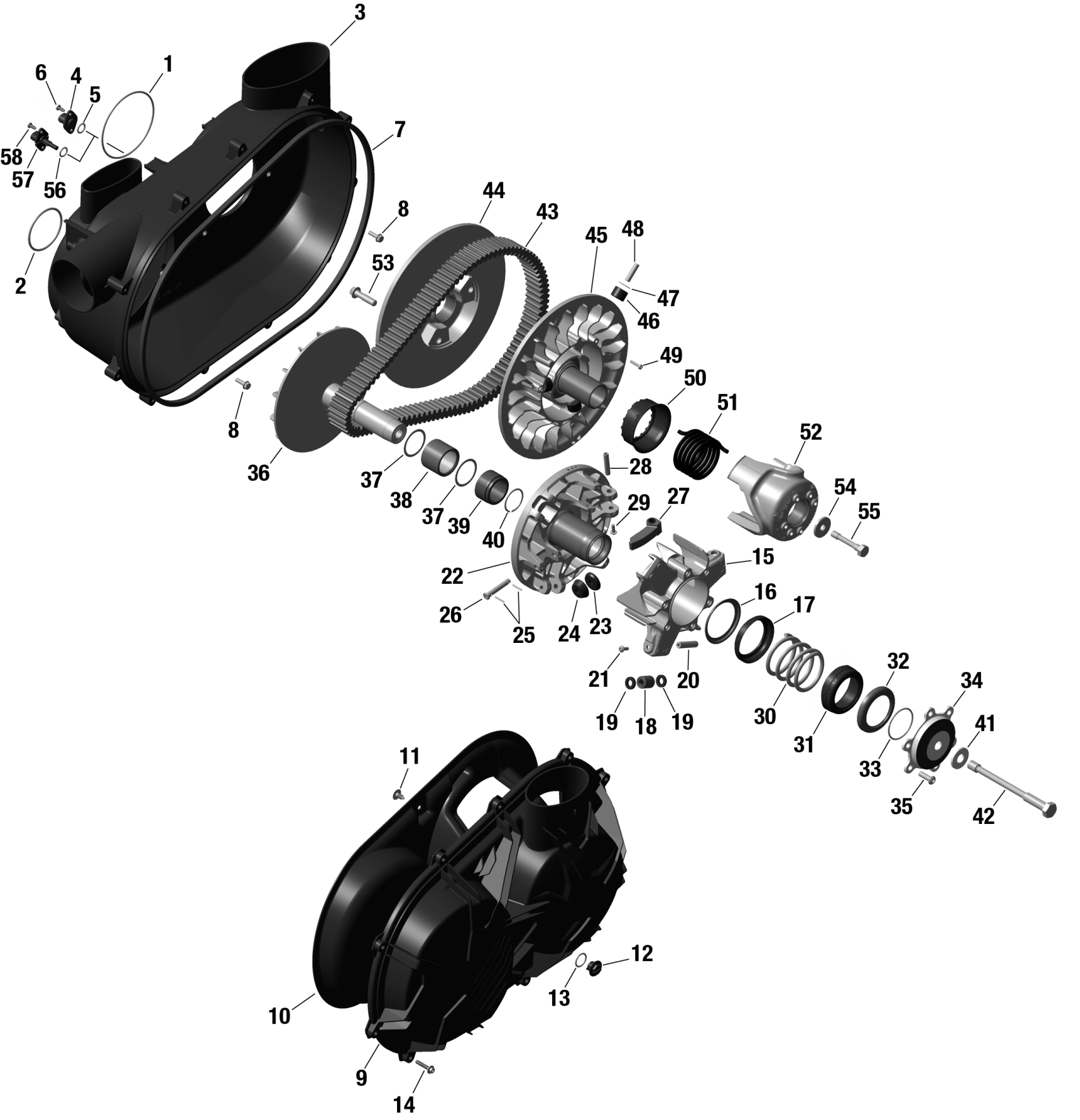

Can-Am 008 - Maverick MAX Turbo - DS - International, 2023 01- ROTAX - CVT Diagram

O-Ring

O-Ring

CVT Air Guide Ass'y | Includes no. 3-6

CVT Cover

O-Ring

Torx Screw M5 X 12

Gasket

Hex.Screw M6 X 20

Variator Cover

Insulating Mat

Trim Button

Cap

O-Ring

Torx Screw 6X30

P-Drive Pulley Ass'y | Includes no. 15-40

Governor Cup Ass'y | Includes no. 10-16

Stopper Spring

Spring Support

Roller Thrust Set | Includes no. 13-16

Thrust Washer

Not Available As Spare Parts

Not Available As Spare Parts

Outer Half Ass'y | no. 17. 21-24 included

Roller Set | Includes no. 21-24

Back Torque Roller

Ext Roller Pulley

Spring Pin 2.6MM X 20.5MM

Pin

Roller Lever Ass'y

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

Compression Spring, Drive Pulley

Spring Support

Seat Spring

Circlip

Governor Cup Torque Flange

Hex Screw M8 X 2

Flasque Fixe Ass.

Washer

Needle Roller Bearing With Sleeves

Stop Sleeve

Retaining Ring 35 x 1.5

Washer

Hexagonal Screw M14X 165

Drive Belt

Sliding Pulley Ass'y

Driven Pulley | Includes no. 44-53

Outer Half Pulley Ass'y

Pulley Roller

Thrust Washer

Bearing Pin

Torx Screw M4 X 20

Spring Support

Compression Spring

Cam 48/52 Ass'y

Torx Flange Screw M10 X 40

Collar Washer

Hexagonal Screw M10X 61

Washer

Not Available As Spare Parts

Not Available As Spare Parts
