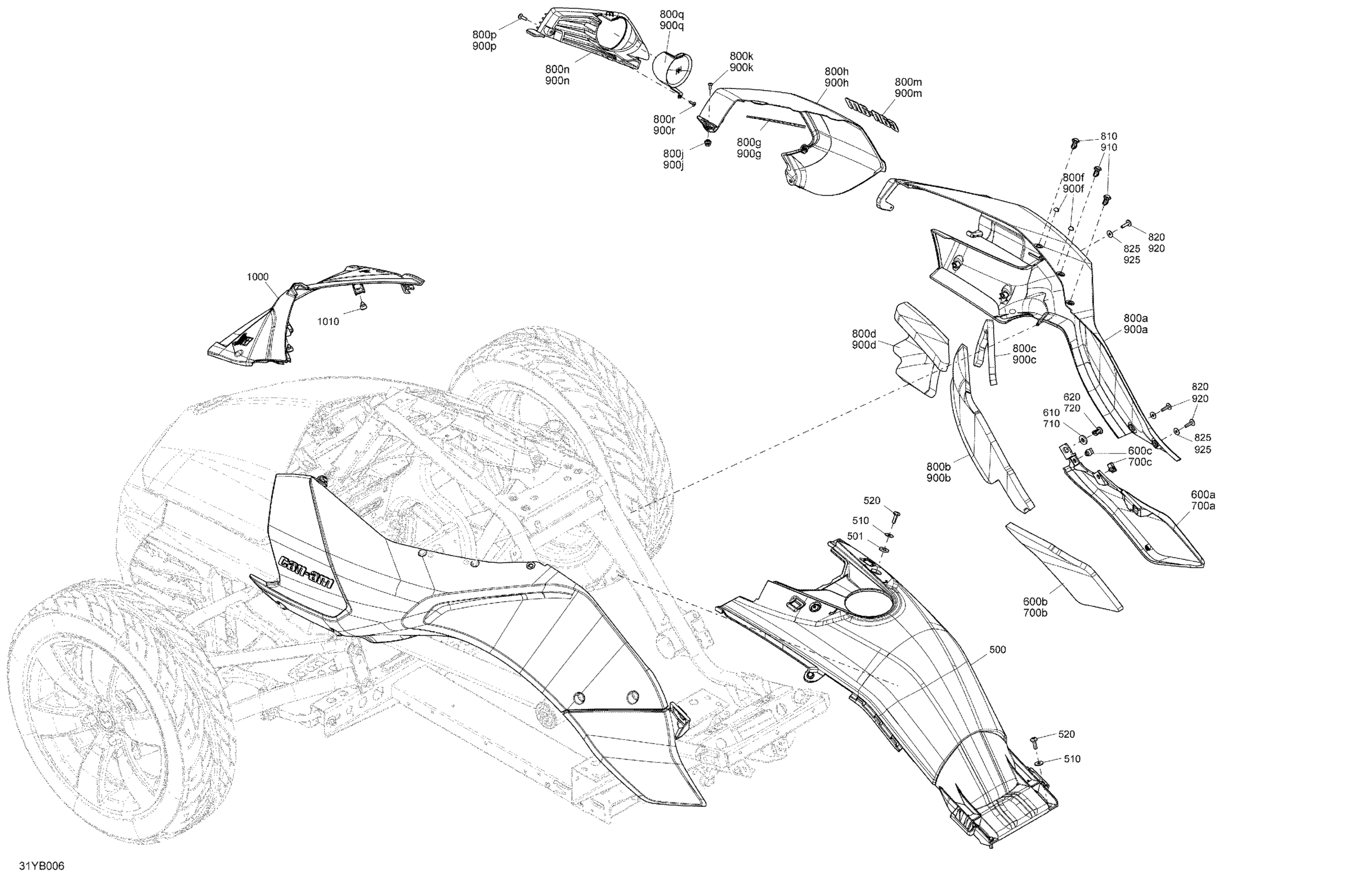

Can-Am F3 S - Special Series - Monolith Black Satin, Europe, 2022 Body - System Diagram

#

Description
Price

500

Deep Black, Tank Cover

705013571

$245.00

501

Self-Adhesive Spacer

705015250

Unavailable

510

Stainless Steel Flat Washer

234062670

Unavailable

520

Torx Truss Screw M6 X 20

250000705

Unavailable

600a

Monolith Black, LH Low Fairing

705009918

$105.00

600b

Acoustic Foam

705009153

$14.00

600c

Panel Nut M5 X 0.8

250000958

Unavailable

610

Spacer

705010890

$3.00

620

Tuflok Plastic Rivet

293150230

Unavailable

700a

Monolith Black, RH Lower Fairing

705009919

$105.00

700b

Acoustic Foam

705009154

$13.00

700c

Panel Nut M5 X 0.8

250000958

Unavailable

710

Spacer

705010890

$3.00

720

Tuflok Plastic Rivet

293150230

Unavailable

800a

Monolith Black, LH Lateral Fairing

705010847

$255.00

800b

Acoustic Foam

705009155

$17.00

800c

Acoustic Foam

705009157

$8.00

800d

Acoustic Foam

705009159

$17.00

800f

Polyurethane Stopper

705006634

$5.00

800g

Seal 1000Mm Long

219704373

$8.29

800h

Deep Black, LH Air Scoop

705011456

$43.00

800j

Anchor Pin

705009430

$1.00

800k

Torx Truss PT K40 x 12

250001131

Unavailable

800m

Matt Black, Logo Can-Am

704905126

$39.00

800n

Deep Black, LH Air Vent Grid

705010137

$20.00

800p

Torx Screw K50 X 16

250000720

Unavailable

800q

LH Heat Shield

705008995

$14.00

800r

Torx Truss PT K40 x 12

250001131

Unavailable

810

Tuflok Plastic Rivet

293150230

Unavailable

820

Torx Truss M5 X 20

250000586

Unavailable

825

Stainless Steel Flat Washer M5

234052670

Unavailable

900a

Monolith Black, RH Lateral Fairing

705010839

$255.00

900b

Acoustic Foam

705009156

$17.00

900c

Acoustic Foam

705009158

$8.00

900d

Acoustic Foam

705009160

$17.00

900f

Polyurethane Stopper

705006634

$5.00

900g

Seal 1000Mm Long

219704373

$8.29

900h

Deep Black, RH Air Scoop

705011399

$43.00

900j

Anchor Pin

705009430

$1.00

900k

Torx Truss PT K40 x 12

250001131

Unavailable

900m

Matt Black, Logo Can-Am

704905126

$39.00

900n

Deep Black, RH Air Vent Grid

705010138

$20.00

900p

Torx Screw K50 X 16

250000720

Unavailable

900q

RH Heat Shield

705008996

$14.00

900r

Torx Truss PT K40 x 12

250001131

Unavailable

910

Tuflok Plastic Rivet

293150230

Unavailable

920

Torx Truss M5 X 20

250000586

Unavailable

925

Stainless Steel Flat Washer M5

234052670

Unavailable

1000

Service Center Fairing

705008058

$34.00

1010

Rubber Bumper

293830005

Unavailable
