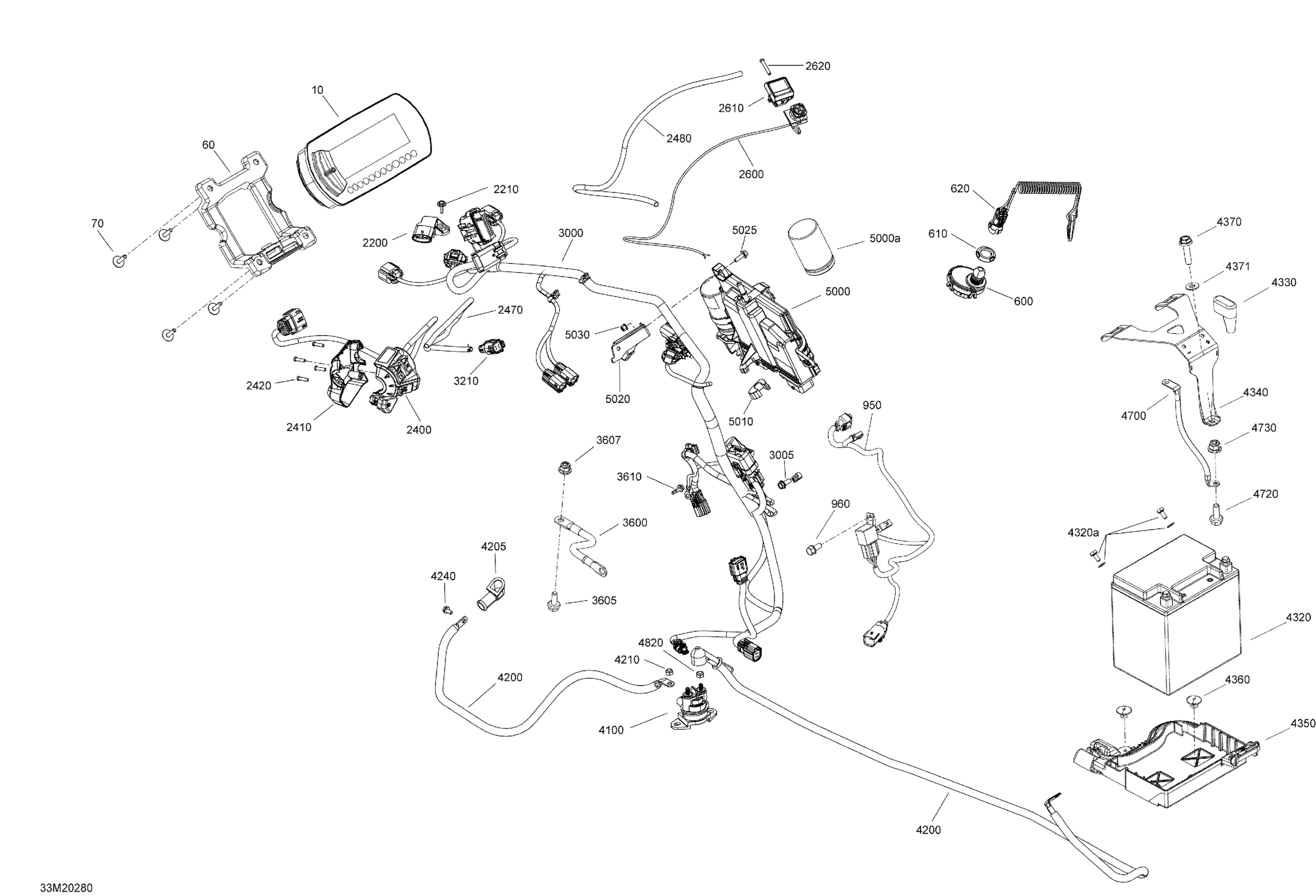

Ski-Doo EXPEDITION XTREME 850 E-TEC - 2020 Electric - System Diagram

#

Description
Price

10

2 Button Multifunction Gauge Full Size Color

515178226

$557.66

60

Housing

515178450

$5.22

70

Screw M4 X 16

250000725

$2.87

600

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

950

Wiring Harness Compressor

515178524

$42.28

960

Hex Flange Screw M5 X 11

210251150

$1.74

2200

Pressure And Temperature Sensor

707000995

$70.82

2210

Screw M4 X 16

250000725

$2.87

2400

LH Switch Housing

515178102

$266.12

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

2480

Braided Sleeve

415130141

$56.12

2600

Emergency Stop Switch

515177931

$74.58

2610

Emergency Stop Switch Support

515177310

$8.60

2620

Torx Screw #8-18

250000263

$1.02

3000

Chassis Wiring Harness

515178733

$306.12

3005

Hex. Flange Screw M6 X 16

250001062

$1.43

3210

4 Circuits Female Housing

515178177

$11.89

3600

Ground Wire

515178248

$23.82

3605

Hex. Flange Screw M6 X 16

207661644

$0.61

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3610

Hex. Flange Screw M5 X 16

250000911

$0.70

4100

Starter Relay

278003012

$35.07

4200

Positive Wire

515178553

$28.43

4205

Protector Cap

710000495

$10.14

4210

Elastic Stop Nut M6

232561414

$1.55

4240

Hex. Flange Screw M5 X 10

207551044

$3.38

4320

Battery | Includes 900 to 900a

515176151

$174.17

4320a

Battery Bolt Kit

515176081

$5.10

4330

Protector Cap | STD

710001817

$10.83

4340

Battery Strip

515178658

$29.97

4350

Battery Support Under

515178659

$13.85

4360

Pop Rivet 3/16"

293150103

$0.54

4370

Hex. Flange Screw M6 X 25

250000793

$1.74

4371

Flat Washer

224061121

$0.44

4700

Cable

515178564

$19.20

4720

Hex. Flange Screw M6 X 16

207661644

$0.61

4730

Elastic Flange Nut M6 X 1.0

233261416

$1.74

4820

Elastic Stop Nut M6

232561414

$1.55

5000

Igniton Module

512061093

$599.97

5000a

Capacitor

515177272

$85.35

5010

Rubber Stopper

515178430

$2.09

5020

Support

515178342

$18.43

5025

Hex. Flange Screw M5 X 16

207651646

$1.74

5030

Flange Elastic Nut M5

233251434

$1.66
