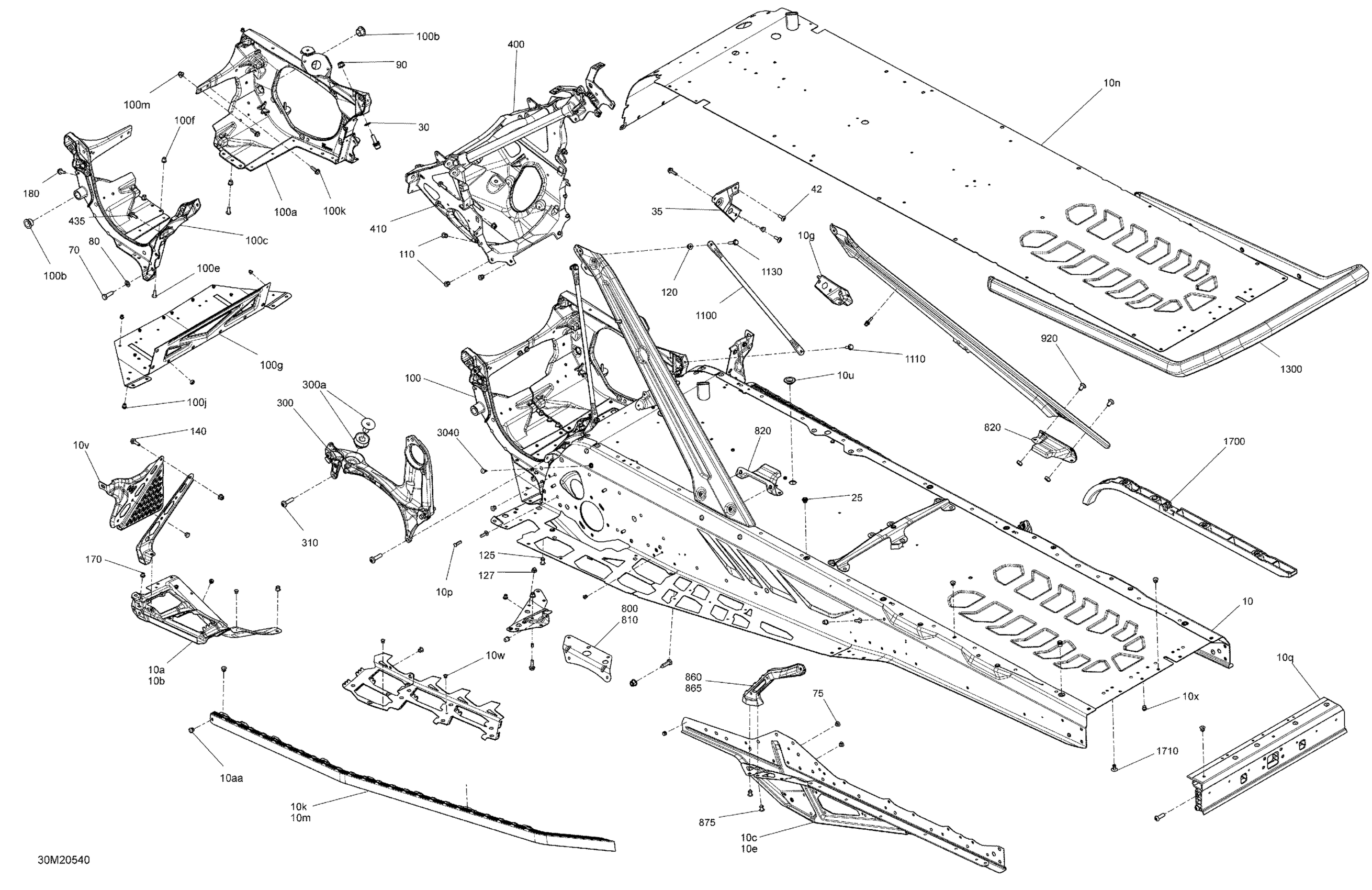

Ski-Doo EXPEDITION XTREME 850 E-TEC - 2020 Frame - System - XTREME Diagram

#

Description
Price

10

Chassis Tunnel Module 154" | Includes 10 to 10aw

415130426

$3.00

10a

RH Footrest Reinforcement

518330520

$88.99

10b

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10c

RH Suspension Support

518330841

$109.99

10e

LH Suspension Support

518330842

$109.99

10g

RH Footrest Reinforcement

518329789

$19.99

10k

RH Roller

518329648

$194.99

10m

LH Roller

518328452

$194.99

10n

Radiator_Tunnel 129 Assy This part replaces 518329835.

518332324

$349.49

10p

Clinch Stud M6 X 20

250300027

$2.09

10q

Rear Cap

518329354

$72.99

10u

Black, Plug

293730052

$9.19

10v

LH Footrest

518329791

$43.99

10w

Rivet Avibulb 3/16

293150203

$2.09

10x

Henrob Rivet

293150146

$2.09

10aa

Hemlock Rivet, 6.4 mm

293150174

$7.86

25

Insert Half Hex Body M6 x 1.0

250100199

$3.19

30

Washer

506151252

$3.17

35

RH Stirrup Reinforcement

518331727

$19.99

42

Torx Head Screw M6 X 16

250000717

$2.11

70

Hex Screw M8 X 30

250000942

$1.15

75

Hemlock Rivet, 6.5 mm

293150096

$3.27

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module Ass'y | Includes 100 to 100m

518332692

$579.99

100a

RH Member Ass'y | Includes 100a to 100b

518330545

$229.99

100b

Leg Cushion

505073317

$8.66

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100f

Collar Huck Magna-Grip 6.4

293150149

$0.48

100g

Bottom Plate

518331661

$36.99

100j

Insert M5 X 0.8

293450268

$2.09

100k

Hex. Flange Screw M6 X 20

207662046

$2.11

100m

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

125

Hemlock Rivet 6.5 mm

293150120

$7.41

127

Rivet 6,4 mm

293150173

$4.29

140

Hex. Flange Screw M6 X 20

207662044

$2.00

170

Insert M5 - 0.8

293450267

$4.59

180

Hex. Flange Screw M6 X 16

207661646

$1.36

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518334459

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

435

Hex. Flange Screw M6 X 16

250001062

$1.57

800

LH Under Chassis Reinforcement

518331729

$13.49

810

RH Under Chassis Reinforcement

518331731

$19.99

820

Cross Member Support

518331733

$33.99

860

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet

293150183

$2.11

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1300

Rear Bumper | Includes 1300 to 1300c

518331043

$111.49

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
