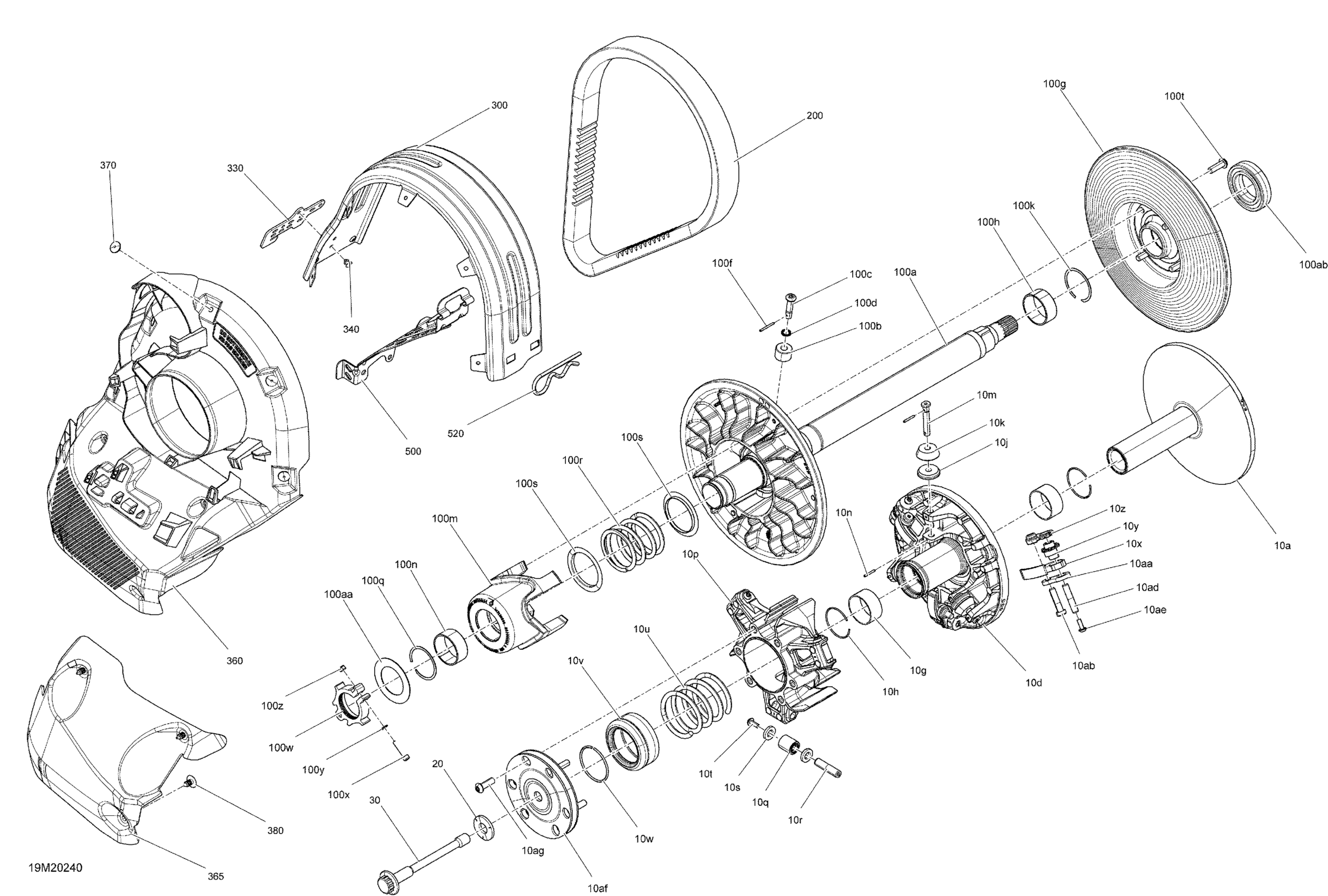

Ski-Doo EXPEDITION XTREME 850 E-TEC - 2020 Pulley - System Diagram

#

Description
Price

10a

Fixed Flange Ass'y

417224332

$170.12

10d

Sheave Drive Pulley Sliding Ass'y | Includes 10ab to 10abg

417224610

$313.40

10g

Bushing

293250389

$19.37

10h

Circlip

293370137

$3.12

10j

Back Torque Roller

417224153

$15.64

10k

Pulley Roller Ext

417224916

$32.06

10m

Pin

417224510

$8.94

10n

Spring Pin 2.6MM X 20.5MM

250400101

$1.01

10p

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$170.12

10q

Roller Pulley Ass'y

417224947

$34.30

10r

Axle - 10mm

417224204

$9.43

10s

Thrust Washer

417224868

$2.16

10t

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.07

10u

Clutch Spring

417224015

$26.84

10v

Seat Spring

417224003

$9.87

10w

Circlip

293370116

$3.12

10x

Ramp Pulley 982

417224575

$28.33

10y

Molded Cam

417224113

$8.37

10z

RH Lever

417224086

$8.42

10aa

LH Lever

417224114

$5.21

10ab

Pivot 38mm

417224222

$5.24

10ac

Weight

417224363

$4.16

10ad

Pin Ramp

417224694

$9.43

10ae

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.07

10af

VIbration Damper

417224682

$116.39

10ag

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

20

Conical Spring Washer M14

250200144

$4.16

30

Pulley Drive Bolt M14 X 144

417300522

Unavailable

100a

Fixed Flange Ass'y | Includes 100a to 100a6

417127635

$407.43

100b

Pulley Roller

417127016

$22.36

100c

Pivot Stud

417127294

$13.18

100d

Lock Washer 8 mm

250200009

$2.00

100f

Spring Pin

250400070

$1.91

100g

Sheave Driven Pulley Sliding Ass'y | Includes 100b to 100b3

417127659

$334.30

100h

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

100k

Circlip

293370049

$4.57

100m

Cam Ass'y | Includes 100m to 100q

417127430

$160.42

100n

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

100q

Circlip

293370049

$4.57

100r

Black, Return Spring

417127039

$44.00

100s

Swivel Abutment

417127116

$7.82

100t

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

100w

Calibration Ass'y

415129604

$22.49

100x

Socket Screw M5 X 25

250000981

$1.54

100y

Flat Washer M5

234051410

$0.51

100z

Elastic Stop Nut M5

232551414

$0.82

100aa

Washer

417127155

$7.79

100ab

Ball Bearing

504152574

$33.55

200

Drive Belt

417300571

$211.91

300

Belt Guard

417300479

$67.88

330

Front Retaining Hook

417300561

$10.99

340

Avex Rivet

390909200

$0.28

360

CVT Duct Cooling

417300553

$26.09

365

Acoustic Panel

417300590

$35.79

370

Pop Rivet 3/16"

293150103

$0.52

380

Black, Dart

414644300

$0.90

500

Rear Guard Support

417300579

$11.84

520

Hair Pin

114045200

$10.37
