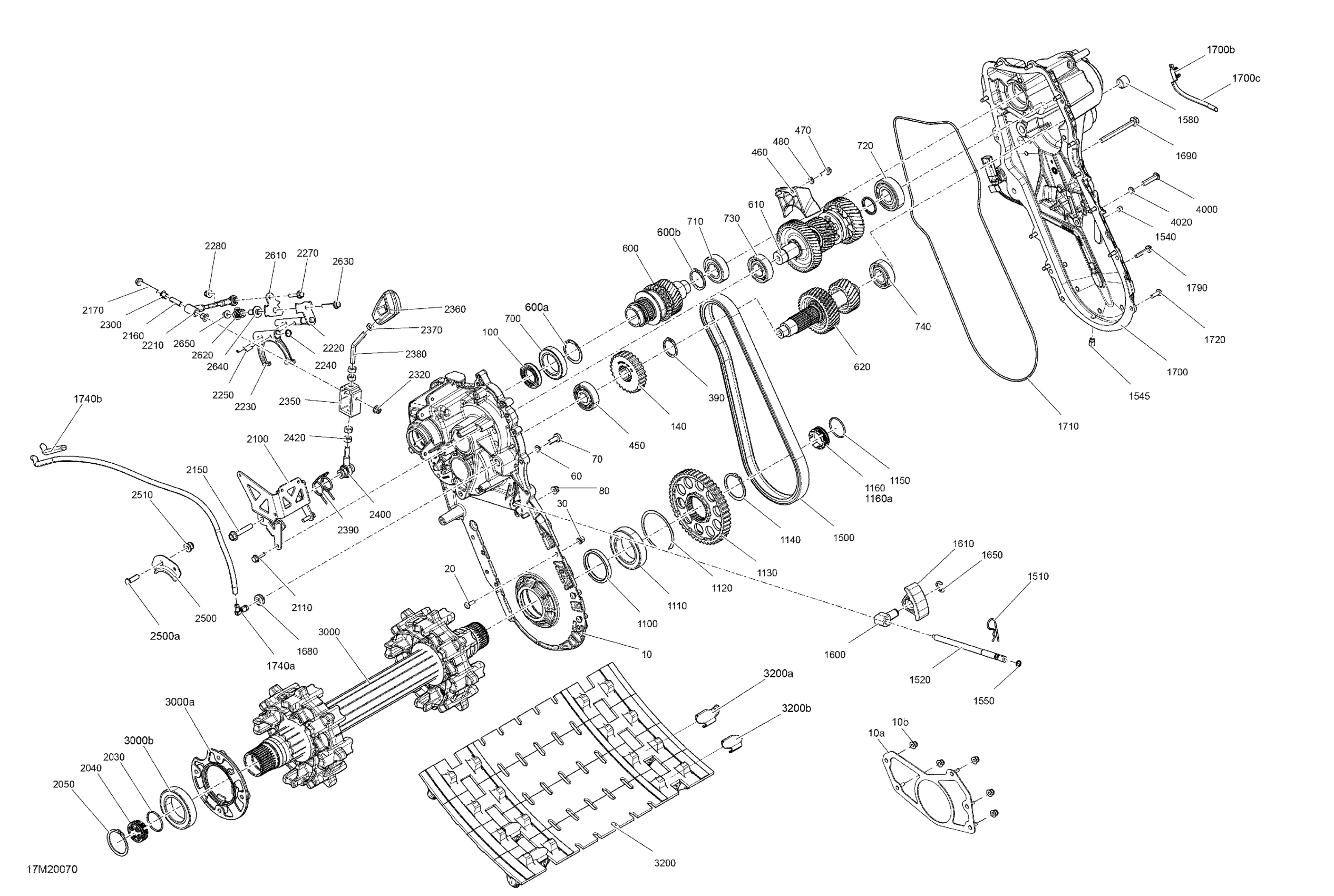

Ski-Doo EXPEDITION XTREME 850 E-TEC - 2020 Drive - System Diagram

#

Description
Price

10

Gearbox Case Ass'y

504154090

$309.99

10a

Plate Ass'y | Not shown

504154136

$78.99

10b

Flange Elastic Nut M6

233261434

$4.44

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

30

Collar Huck Magna-Grip 6.4

293150149

$0.48

60

Washer

504082900

$2.64

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

80

Flange Elastic Nut M6

233261434

$4.44

100

Oil Seal

293200168

$14.49

140

Sprocket 27 Teeth

504153666

$109.99

390

External Snap Ring

293370133

$7.19

450

Ball Bearing

293350131

$27.49

460

Oil Deflector

504153793

$4.55

470

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

480

Flat Washer 6 mm

234061410

$1.36

600

Shaft Gearbox In Ass'y | Includes 600 to 600d

504154125

$194.99

600a

Circlip

293370055

$8.11

600b

External Snap Ring

293370133

$7.19

610

Shaft Gearbox Selection Ass'y

504154126

$409.99

620

Shaft Gearbox Out Ass'y

504154127

$409.99

700

Ball Bearing

293350053

$37.99

710

Ball Bearing

293350115

$12.11

720

Ball Bearing

293350117

$17.61

730

Ball Bearing | Package-2X4, 4X4

504153165

$16.18

740

Ball Bearing | Package-2X4, 4X4

504153165

$16.18

1100

Oil Seal

293200159

$16.25

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$9.99

1130

Kit Sprocket This part replaces 504152581.

861805539

$159.99

1140

Circlip

504152572

$6.95

1150

O-Ring

293300201

$1.01

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

1160a

Cap

504154043

$2.11

1500

Drive Chain 100 Links

504152570

$153.49

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153627

$24.49

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Magnetic Plug

504153704

$5.19

1550

O-Ring

293300202

$1.01

1580

Black, Plastic Plug

267000469

$7.59

1600

Tensioner

504153559

$18.99

1610

Slider Chain

504153312

$65.99

1650

Circlip

293370105

$2.11

1680

Grommet

414036300

$2.79

1690

Hex. Flange Screw M8 X 85, Scotch Grip

207588544

$3.38

1700

Gearbox Cover Ass'y | Includes 1700 to 1700f

504154651

$189.99

1700a

Not Available As Spare Part - Friction Washer

Unavailable

1700b

Clip Connector

515178223

$2.09

1700c

Braided Sleeve

415130141

$55.99

1710

O Ring

293300197

$11.65

1720

Torx T-30 Pan HD Taptite M6X20

250001012

$0.55

1740a

Male Connector

414580700

$4.12

1790

Hex. Flange Screw M6 X 35

250001015

$1.46

2030

O-Ring

293300201

$1.01

2040

Cap

504154043

$2.11

2050

Circlip

504152572

$6.95

2100

Speed Selector Support

504153662

$45.99

2110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

2150

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

2160

Spacer

504153648

$3.49

2170

Hex. Flange Screw M6 X 45

207664544

$1.46

2210

Actuating Rod Ass'y

504154245

$38.99

2220

Axle Fork

504154100

$15.49

2230

Fork

504154101

$37.99

2240

O-Ring

293300202

$1.01

2250

Spring Pin M5 X 16

250400045

$4.55

2270

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

2280

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2300

Bushing

504153735

$0.55

2320

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2350

Extrusion

504153664

$19.49

2360

Lever Trim

707003211

$8.49

2370

Hex. Jam Nut M8

232180491

$7.51

2380

Threaded Bar

504154013

$14.88

2390

Lever Arm Spring

504153984

$6.79

2400

Ball Joint

504153977

$41.49

2420

Hex. Nut M8

232081414

$0.72

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500a

Clinch Stud, M8 X 25

250300028

$4.44

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

2610

Plate

504153980

$13.49

2620

Spring

707000310

$10.43

2630

Hex. Flange Screw M6 X 40

207664044

$2.22

2640

Sapcer

504153981

$11.99

2650

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3000

Drive Axle Ass'y | Includes 3000 to 3000f

504154435

$381.49

3000a

Retaining Ring

504153886

$21.99

3000b

Ball Bearing

293350059

$30.99

3200

Track 20 X 154 X 1,8 | Includes 3200 to 3200b

504154710

$1.00

3200a

Track Guide | Track Width 16''

415129528

$3.29

3200b

Cleat

504152651

$9.69

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4020

Washer

504082900

$2.64
