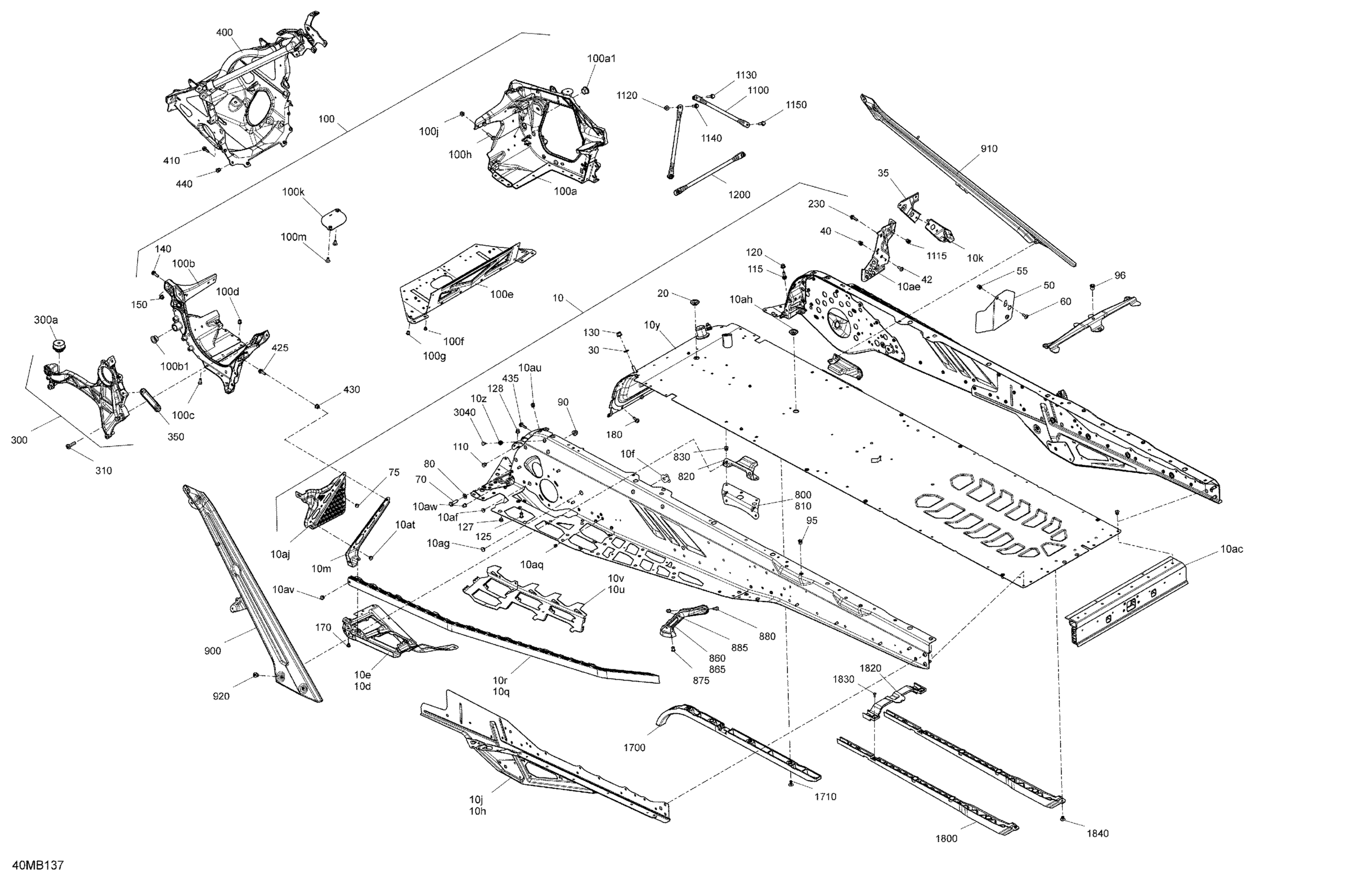

Ski-Doo EXPEDITION SE 900 ACE - 2022 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10a41

415130861

$3.00

10

Liquid Titan, Chassis Tunnel Module 154" | Includes 10 to 10aw

415130493

$3.00

10d

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10e

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10f

Front Suspension Arm Reinforcement

518335959

$4.19

10h

RH Rear Suspension Support

518332254

$109.99

10j

LH Rear Suspension Support

518332253

$109.99

10k

RH Footrest Reinforcement

518329789

$19.99

10m

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10q

RH Roller

518329648

$194.99

10r

LH Roller

518328452

$194.99

10u

RH Tunnel Liner

518329646

$35.99

10v

LH Tunnel Liner

518329647

$35.99

10y

Radiator Tunnel Ass'y 154

518332622

$709.99

10z

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10ac

Rear Cap

518332315

$72.99

10ae

RH Footrest

518331822

$24.49

10af

Black, Dart 8 mm

293730047

$2.21

10ag

Black, Dart 10 mm

293730060

$4.55

10ag

Dart

293730079

$2.09

10ah

Black, Plug

293730052

$9.19

10aj

LH Footrest

518332978

$43.99

10aq

Rivet Avibulb 3/16

293150203

$2.09

10at

Hemlock Rivet, 6.5 mm

293150096

$3.27

10au

Hemlock Rivet, 6.5 mm

293150119

$4.29

10av

Hemlock Rivet, 6.4 mm

293150174

$7.86

10aw

Collar Huck Magna-Grip 6.4

293150149

$0.48

20

Black, Plug

293730052

$9.19

30

Flat Washer 8 mm

234081410

$0.83

35

RH Stirrup Reinforcement

518331727

$19.99

40

Insert

293450275

$12.99

42

Torx Head Screw M6 X 16

250000717

$2.11

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

70

Hex Screw M8 X 30

250000942

$1.15

75

Hemlock Rivet, 6.5 mm

293150096

$3.27

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

95

Insert

293450275

$12.99

96

Insert

293450275

$12.99

100

Engine Chassis Module Ass'y | Includes 100 to 100m

518332686

$619.99

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$204.99

100a1

Leg Bushing

505072690

$12.49

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100b1

Leg Bushing

505072690

$12.49

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100d

Collar Huck Magna-Grip 6.4

293150149

$0.48

100e

Bottom Plate

518332715

$36.99

100f

Rivet Avibulb 3/16

293150203

$2.09

100g

Insert M5 X 0.8

293450268

$2.09

100h

Hex. Flange Screw M6 X 25

250000945

$4.44

100j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100k

Oil Plate

518329454

$18.49

100m

Torx Truss Screw M6 X 12

250000767

$2.00

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

115

Hex. Flange Screw M6 X 20

207662046

$2.11

120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

125

Hemlock Rivet 6.5 mm

293150120

$7.41

127

Rivet 6,4 mm

293150173

$4.29

128

Hemlock Rivet, 6.5 mm

293150119

$4.29

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

170

Insert M5 - 0.8

293450267

$4.59

180

Hex. Flange Screw M6 X 16

207661646

$1.36

230

Hex. Flange Screw M6 X 20

207562056

$2.11

300

LH Side Member Ass'y | Includes 300 to 300b

518333691

$199.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

350

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$11.49

400

Chassis Suspension Module

518334461

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

435

Hex. Flange Screw M6 X 20

207562056

$2.11

440

Ornit Rivet 6,5 X 14.5

293150266

$2.40

800

LH Under Chassis Reinforcement

518331729

$13.49

810

RH Under Chassis Reinforcement

518331731

$19.99

820

Cross Member Support

518331733

$33.99

830

Hemlock Rivet, 6.5 mm

293150119

$4.29

860

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet

293150183

$2.11

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

900

Deep Black, LH Diagonal Cross Member Ass This part replaces 518333270.

518331725

$119.99

910

Deep Black, RH Diagonal Cross Member Ass This part replaces 518333271.

518331726

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329370

$22.49

1115

Insert

293450275

$12.99

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1150

Hex. Flange Screw M6 X 20

207562056

$2.11

1200

Center Colomn Support

518329756

$3.69

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

1800

Rear Protector

518329979

$9.23

1820

Central Protective Structure

518333936

$3.69

1830

Torx Truss PT K40 x 12

250001131

$2.11

1840

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
