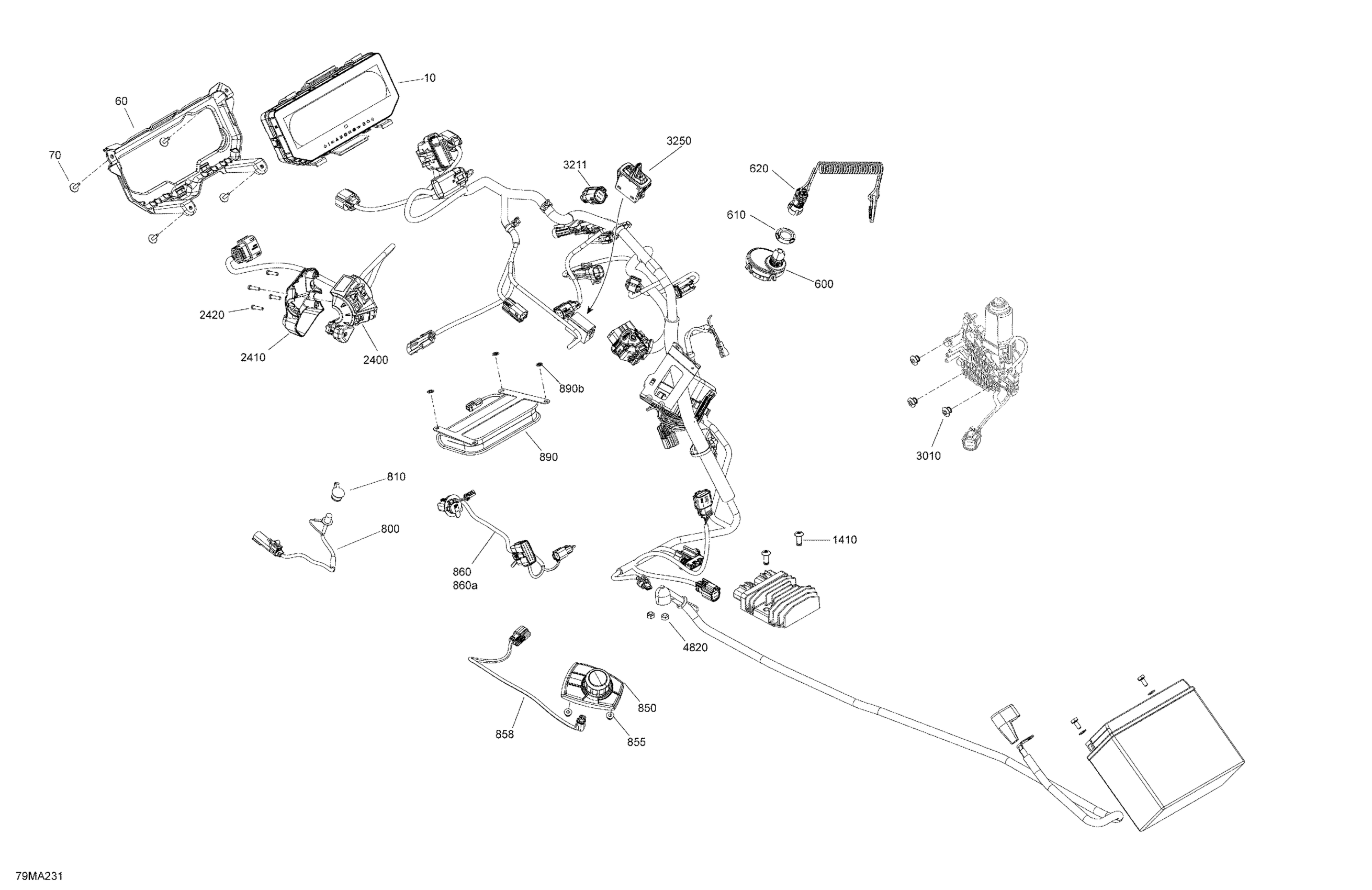

Ski-Doo 008 - EXPEDITION SE 900 ACE - North America, 2021 08- Electric - Upper Section Diagram

Full Size Color Multifunction Gauge

515179262

$1.00

2 Button Multifunction Gauge Full Size Color

515178226

$599.99

Multifunction Gauge Full Size Mono

515178227

$559.99

Gauge Support

515178965

$6.69

Screw M4 X 16

250000725

$3.49

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Safety Nut (DESS Switch)

278002963

$3.28

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

Heated Visor Wiring Harness

515178645

$38.99

Cap

572103300

$10.49

Switch

515178325

$509.99

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Adaptor Wiring Harness

515178958

$26.99

USB Wiring Harness | Includes 860 to 860a

515178758

$93.99

USB Connector

710006405

$41.49

Protective Bag | Includes 890 to 890a

515179153

$119.99

Push Nut

732610072

$2.19

Monobolt Rivet 6.4

293150182

$3.09

LH Switch Housing

515178196

$284.99

LH Switch Housing

515178851

$284.99

Housing Plate

515177147

$20.99

Torx Screw

250000671

$1.01

Rivet

515177929

$2.21

Coil Connector

515178202

$13.24

Rocket Switch

515178501

$20.49

Elastic Stop Nut M6

232561434

$1.99
