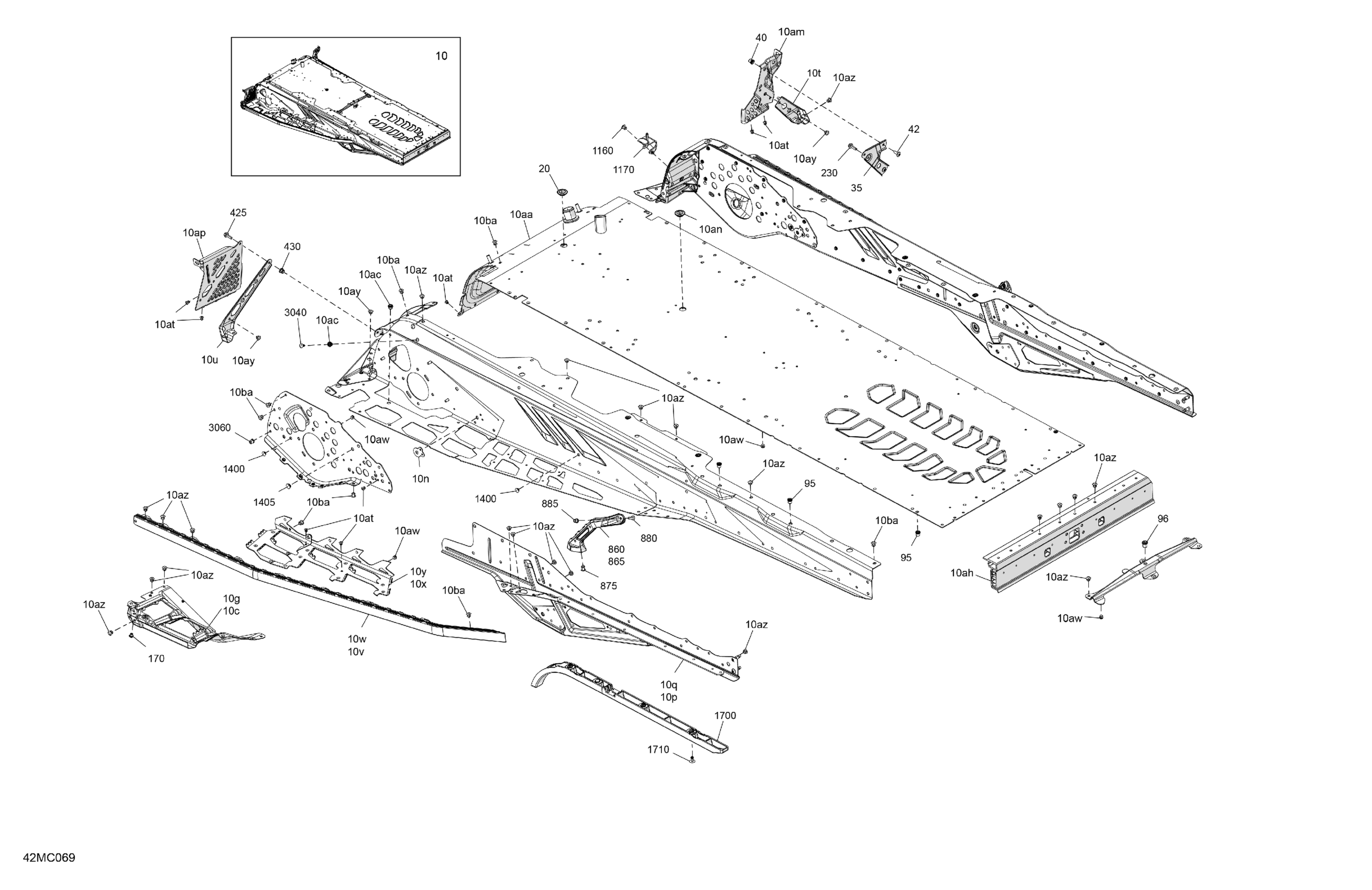

Ski-Doo EXPEDITION LE 600R E-TEC - 24 INCH - 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10b

415130720

$3,319.20

10c

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10g

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10n

Front Suspension Arm Reinforcement

518335959

$3.85

10p

RH Rear Suspension Support

518333792

$102.28

10q

LH Rear Suspension Support

518333791

$102.28

10t

RH Footrest Reinforcement

518329789

$18.43

10u

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10v

RH Roller

518329648

$180.74

10w

LH Roller

518328452

$180.74

10x

RH Tunnel Liner

518329646

$33.05

10y

LH Tunnel Liner

518329647

$33.05

10aa

Radiator Tunnel 154

518335121

$609.20

10ac

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10ah

Rear Cap

518332481

$76.89

10am

RH Footrest

518331822

$23.05

10an

Black, Plug

293730052

$6.37

10ap

LH Footrest

518332977

$42.28

10at

Rivet Avibulb 3/16

293150203

$0.29

10aw

Henrob Rivet

293150245

$1.65

10ay

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10az

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10ba

Ornit Rivet 6,5 X 14.5

293150266

$1.94

20

Black, Plug

293730052

$6.37

35

RH Stirrup Reinforcement

518331727

$18.43

40

Insert

293450275

$9.89

42

Torx Head Screw M6 X 16

250000717

$1.74

95

Insert

293450275

$9.89

96

Insert

293450275

$9.89

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

860

Deep Black LH Rear Footrest Reinforcement

518330858

$16.89

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$16.89

875

Rivet Ornit 6,5 X 16.5

293150267

$1.94

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

885

Collar Huck Magna-Grip 6.4

293150149

$0.37

1160

Ornit Rivet 6,5 X 14.5

293150266

$1.94

1170

Muffler Support Ass'y

518334031

$19.97

1400

Black, Dart 8 mm

293730047

$2.14

1405

Black, Dart 10 mm

293730060

$4.42

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92

3060

Collar Huck Magna-Grip 6.4

293150149

$0.37
