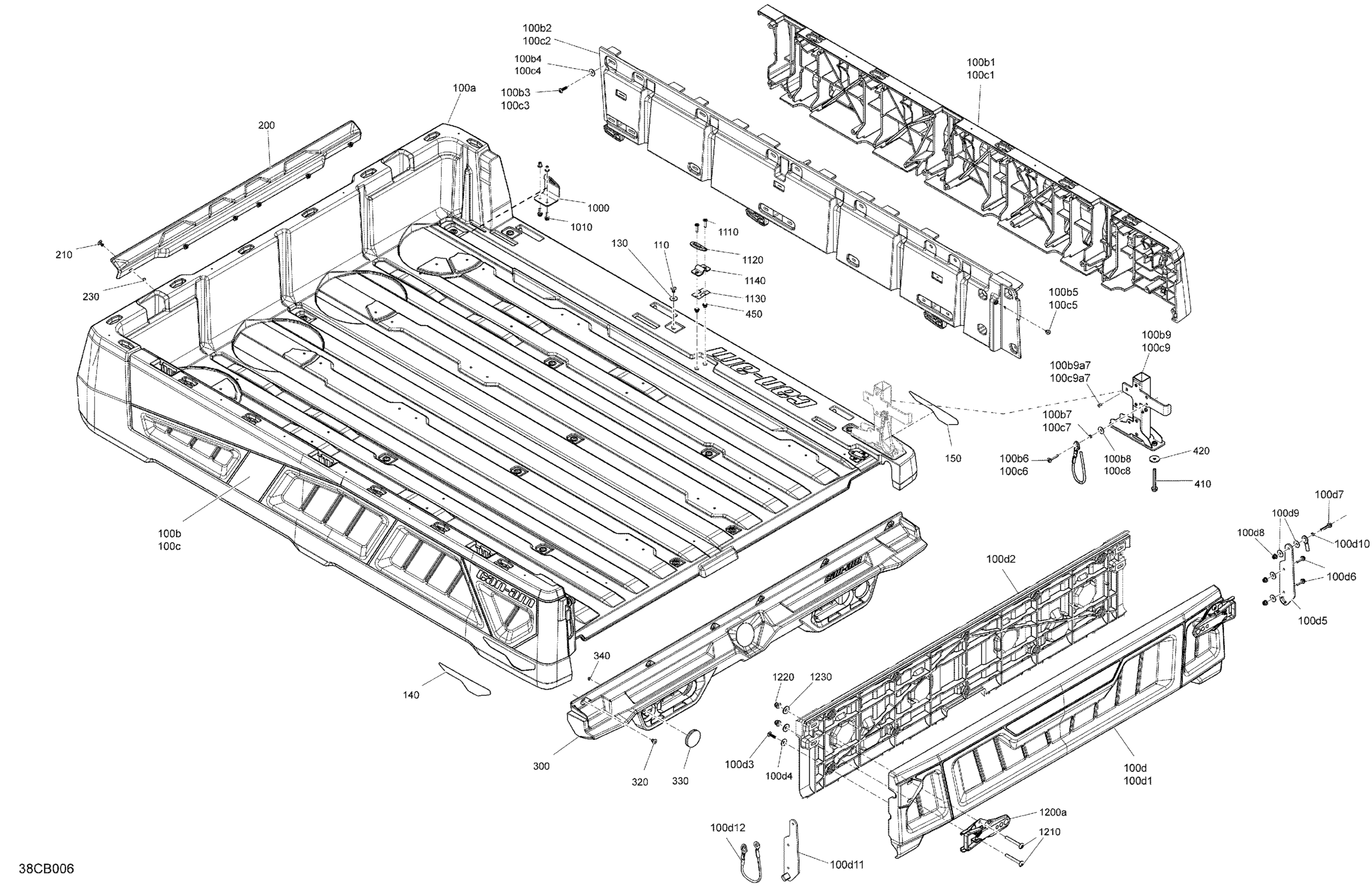

Can-Am Defender PRO HD10 - DPS - 2022 Body - Cargo - Upper Section Diagram

#

Description
Price

100a

Cargo Box Inside Ass'y

715007479

$1,959.99

100b

LH Cargo Panel

708303499

$579.99

100b1

LH Cargo Panel

708303499

$579.99

100b2

LH Cargo Panel

708303499

$579.99

100b3

Hex. Screw Pt K60 X 25

250000980

$2.11

100b4

Flat Washer M6.6 X 22

250200162

$2.32

100b5

Rubber Bumper

293830005

$8.09

100b6

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

100b7

Bushing

293900101

$7.87

100b8

Flat Washer M6.6 X 22

250200162

$2.32

100b9

LH Panel Support | Includes 100b9 to 100b9a7

708304595

$119.99

100b9a7

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

100c

RH Cargo Panel

708303500

$579.99

100c1

RH Cargo Panel

708303500

$579.99

100c2

RH Cargo Panel

708303500

$579.99

100c3

Hex. Screw Pt K60 X 25

250000980

$2.11

100c4

Flat Washer M6.6 X 22

250200162

$2.32

100c5

Rubber Bumper

293830005

$8.09

100c6

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

100c7

Bushing

293900101

$7.87

100c8

Flat Washer M6.6 X 22

250200162

$2.32

100c9

RH Panel Support | Includes 100c9 to 100c9a7

708304596

$119.99

100c9a7

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

100d

Tailgate Ass'y

708303501

$429.99

100d1

Tailgate Ass'y

708303501

$429.99

100d2

Tailgate Ass'y

708303501

$429.99

100d3

Hex. Screw Pt K60 X 25

250000980

$2.11

100d4

Flat Washer M6.6 X 22

250200162

$2.32

100d5

LH Tailgate Support

708303138

$28.99

100d6

Hex. Flange Screw M6 X 25

207662554

$1.48

100d7

Hex. Flange Screw M6 X 35

207663554

$2.11

100d8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100d9

Flat Washer M6.6 X 22

250200162

$2.32

100d10

Bushing

293900101

$7.87

100d11

RH Tailgate Support

708303141

$28.99

100d12

Cable Retaining

708302893

$30.99

110

Pop Rivet 3/16”

293150108

$1.19

130

Flat Washer M6.6 X 22

250200162

$2.32

140

LH Rear Reflector

708303264

$13.49

150

RH Rear Reflector

708303265

$13.49

200

Deflector

708303216

$55.99

210

Pop Rivet 3/16”

293150108

$1.19

230

Washer

517124300

$0.19

300

Taillight Support

708303496

$104.99

320

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

330

Red, Reflector

705016982

$14.49

340

Elastic Stop Nut M5

232551414

$0.87

410

Hex. Flange Screw M8 X 70

207587044

$1.03

420

Flat Washer M8

250200187

$2.11

450

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1000

Retaining Plate

708301480

$9.69

1010

Hex. Flange Screw M6 X 20

207662054

$1.01

1110

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

$2.11

1120

D-Ring

708302990

$4.29

1130

Tie-Down Ring Spring

708302991

$2.39

1140

Tie-Down Ring Bracket

708302992

$2.39

1200a

Latch Ass'y

511001014

$38.99

1210

Torx Truss M8 X 65

250000901

$1.90

1220

Elastic Flange Nut M8

233281464

$1.01

1230

Stainless Steel Flat Washer

234082670

$2.11
