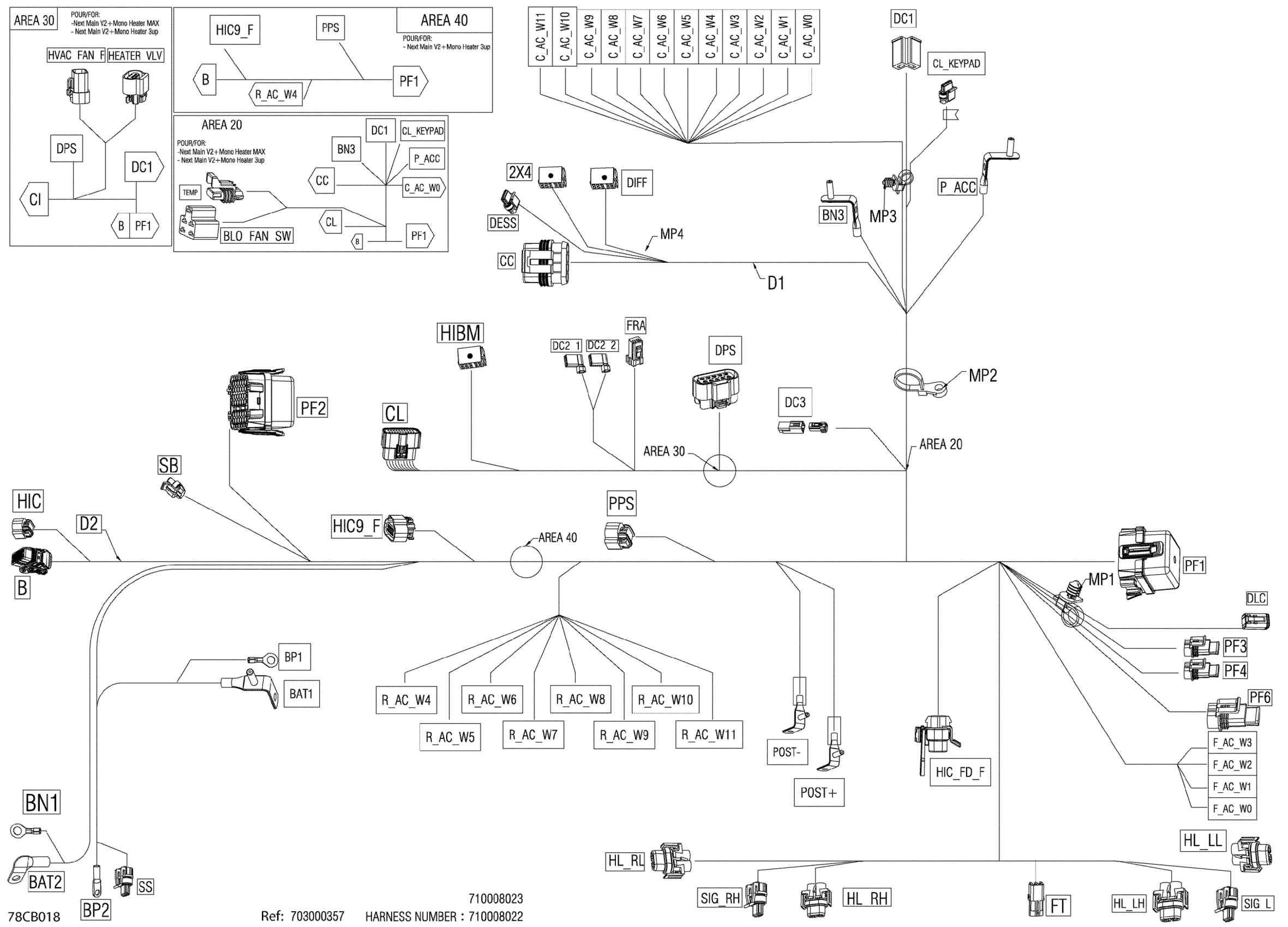

Can-Am Defender HD9 - CAB (8UNC-8UND) - 2022 Electric - Main Harness - 710008022 Diagram

#

Description
Price

300

Main Wiring Harness

710008022

$929.99

2X4

Housing

710002000

$7.90

2X4

Terminal

710003047

$3.49

2X4

Female Terminal

710005491

$2.09

B

Cover, 48 positions

710001591

$12.18

B

Female Terminal Housing, 48 Circuits

710001588

$48.49

B

Plug

710001592

$2.21

B

Plug

710001593

$2.21

B

Female Terminal

710001727

$3.19

B

Terminal

710001728

$6.79

B

Female Terminal

710001589

$2.21

BLO_FAN_SW

5 Cavities Koch Connector

710006037

$10.49

BN1

Terminal

710000913

$5.61

BN3

Open Barell

710006801

$9.95

BP1

Open Barrel

278000992

$2.21

BP2

Cap Battery Cable

710007033

$6.24

C_AC_W0

Insulated Sheath

278001008

$3.28

C_AC_W0

Male Terminal

278000230

$4.39

C_AC_W1

Insulated Sheath

278001008

$3.28

C_AC_W1

Male Terminal

278000230

$4.39

C_AC_W11

Insulated Sheath

278001008

$3.28

C_AC_W11

Male Terminal

278000230

$4.39

C_AC_W2

Insulated Sheath

278001008

$3.28

C_AC_W2

Male Terminal

278000230

$4.39

C_AC_W3

Insulated Sheath

278001008

$3.28

C_AC_W3

Male Terminal

278000230

$4.39

C_AC_W4

Insulated Sheath

278001008

$3.28

C_AC_W4

Male Terminal

278000230

$4.39

C_AC_W5

Insulated Sheath

278001008

$3.28

C_AC_W5

Male Terminal

278000230

$4.39

C_AC_W6

Insulated Sheath

278001008

$3.28

C_AC_W6

Male Terminal

278000230

$4.39

C_AC_W7

Insulated Sheath

278001008

$3.28

C_AC_W7

Male Terminal

278000230

$4.39

C_AC_W8

Insulated Sheath

278001008

$3.28

C_AC_W8

Male Terminal

278000230

$4.39

C_AC_W9

Insulated Sheath

278001008

$3.28

C_AC_W9

Male Terminal

278000230

$4.39

C_AC-W10

Insulated Sheath

278001008

$3.28

C_AC-W10

Male Terminal

278000230

$4.39

CC

Female Housing, 4 Circuits

409209700

$16.18

CC

Wire Seal

515176621

$7.49

CC

Female Terminal

710001340

$5.89

CL

Female Housing 20 Circuits

278002858

$22.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal

515178018

$1.19

CL

Female Terminal 22 AWG

515178349

$2.29

CL_KEYPAD

Housing

710001161

$11.12

CL_KEYPAD

Lock

710001162

$3.19

CL_KEYPAD

Wire Seal

710001163

$7.69

CL_KEYPAD

Female Terminal

710001164

$8.89

D2

Diode

409012700

$11.12

DC1

Housing

710005373

$5.29

DC1

Terminal

710005518

$1.49

DC2_1

Female Terminal

409010300

$4.39

DC2_2

Female Terminal

409010300

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3_CAP

Male Housing, 2 Circuits

710000667

$8.32

DESS

Housing

710001161

$11.12

DESS

Lock

710001162

$3.19

DESS

Cap

710001225

$9.19

DESS

Wire Seal

710001163

$7.69

DESS

Female Terminal

710001164

$8.89

DIFF

Housing

710002000

$7.90

DIFF

Female Terminal

710005491

$2.09

DIFF

Terminal

710003047

$3.49

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Plug

710005437

$3.17

DLC

Female Terminal

710005438

$4.29

DLC

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

F_AC_W0

Insulated Sheath

278001007

$3.58

F_AC_W0

Female Terminal | DS 650 X

278001009

$3.19

F_AC_W1

Insulated Sheath

278001007

$3.58

F_AC_W1

Female Terminal | DS 650 X

278001009

$3.19

F_AC_W2

Insulated Sheath

278001007

$3.58

F_AC_W2

Female Terminal | DS 650 X

278001009

$3.19

F_AC_W3

Insulated Sheath

278001007

$3.58

F_AC_W3

Female Terminal | DS 650 X

278001009

$3.19

FL-1

Fuse Link 21-30AMP

715002536

$16.86

FL-2

Fuse Link 41-50AMP

715002538

$21.99

FRA

Female Housing, 2 Circuits

515175658

$16.18

FRA

Female Terminal

710003896

$2.19

FT

Clip

710000992

$4.29

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

HEATER_VLV.

Housing Connector

515177287

$7.62

HEATER_VLV.

Seal

710001233

$3.19

HEATER_VLV.

Terminal

710001229

$3.19

HIBM

Housing Connector

710002001

$13.71

HIBM

Terminal

710003047

$3.49

HIBM

Female Terminal

710005491

$2.09

HIBM

Terminal

710003048

$4.39

HIC

Female Housing, 12 Circuits

710001930

$15.80

HIC

Lock

710001222

$2.09

HIC

Lock

710006333

$6.79

HIC

Cap

710001225

$9.19

HIC

Seal

710001233

$3.19

HIC

Seal Wire

710001332

$3.28

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HIC_FD_F

Connector Guard

710007680

$11.00

HIC_FD_F

Housing

710001132

$9.85

HIC_FD_F

Lock

710001133

$4.39

HIC_FD_F

Seal

278001482

$3.19

HIC_FD_F

Female Terminal

710001134

$7.69

HIC9_F

Female Housing, 12 Circuits

710001930

$15.80

HIC9_F

Lock

710001222

$2.09

HIC9_F

Lock

710006333

$6.79

HIC9_F

Cap

710001225

$9.19

HIC9_F

Seal

710001233

$3.19

HIC9_F

Seal Wire

710001332

$3.28

HIC9_F

Terminal

710001229

$3.19

HIC9_F

Terminal

710001228

$3.28

HL_LH

Housing

710002578

$3.19

HL_LH

Lock

710002584

$4.39

HL_LH

Wire Seal

710001427

$2.09

HL_LH

Female Terminal

278002578

$1.04

HL_LL

Housing

710002578

$3.19

HL_LL

Lock

710002584

$4.39

HL_LL

Wire Seal

710001427

$2.09

HL_LL

Female Terminal

278002578

$1.04

HL_RH

Housing

710002578

$3.19

HL_RH

Lock

710002584

$4.39

HL_RH

Wire Seal

710001427

$2.09

HL_RH

Female Terminal

278002578

$1.04

HL_RL

Housing

710002578

$3.19

HL_RL

Lock

710002584

$4.39

HL_RL

Wire Seal

710001427

$2.09

HL_RL

Female Terminal

278002578

$1.04

HVAC_FAN_F.

Female Terminal Housing, 4 Circuits

278001473

$26.99

HVAC_FAN_F.

Female Lock, 4 Circuits

278001474

$3.49

HVAC_FAN_F.

Female Terminal

515175567

$7.69

P_ACC

Folded Terminal Eyelet

710006749

$9.95

PF1

Fuse Cover

278003553

$3.72

PF1

Fuse Base Ass'y

278003448

$31.99

PF1

Wire Seal

278000216

$3.19

PF1

Seal

293300198

$2.39

PF1

Wire Seal

278000218

$4.39

PF1

Wire Seal

278001065

$7.69

PF1

Wire Seal

710000048

$7.69

PF1

Female Terminal

710000918

$7.69

PF1

Female Terminal

278002578

$1.04

PF1

Female Terminal

515177177

$6.49

PF1_LABEL_STD_TILT_HEATER

Fuse Box Decal

710007185

$14.49

PF1-F11

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F14

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F17

Little Fuse, 5 Amperes

710000742

$8.79

PF1-R3

Relay, 30 AMP

515176774

$21.99

PF1-R8

Relay

715900824

$21.99

PF1-R9

Relay, 50 AMP

515176775

$15.79

PF1-SPARE

Little Fuse, 20 Amperes

710000746

$8.49

PF2

Fuse Cover

278003553

$3.72

PF2

Fuse Base Ass'y

278003448

$31.99

PF2

Wire Seal

278000216

$3.19

PF2

Seal

293300198

$2.39

PF2

Wire Seal

278000218

$4.39

PF2

Wire Seal

278001065

$7.69

PF2

Female Terminal

710000918

$7.69

PF2

Female Terminal

278002578

$1.04

PF2

Female Terminal

710000890

$4.55

PF2_LABEL

Fuse Box Decal

710008085

$14.49

PF2_SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF2_SP2

Little Fuse, 10 Amperes

710000744

$8.79

PF2_SP3

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F7

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F9

Fuse, 25 Amps

710002590

$19.49

PF2-R1

Relay, 30 AMP

515176774

$21.99

PF2-R2

Relay

715900824

$21.99

PF3

Fuse Holder

278001325

$8.79

PF3

Female Terminal

710000113

$6.99

PF3-F2

Fuse

710001613

$8.79

PF4

Fuse Holder

278001325

$8.79

PF4

Female Terminal

710000113

$6.99

PF4-F21

Fuse

710001613

$8.79

PF6

Fuse Holder

278001325

$8.79

PF6

Female Terminal

710000113

$6.99

PF6_F1

Fuse, 20 Amperes

409003900

$3.28

PPS

Housing

515177151

$5.66

PPS

Lock 6 Positions

710005296

$1.09

PPS

Seal

710001233

$3.19

PPS

Terminal

710001229

$3.19

R_AC_W10

Insulated Sheath

278001007

$3.58

R_AC_W10

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W11

Insulated Sheath

278001007

$3.58

R_AC_W11

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W4

Insulated Sheath

278001007

$3.58

R_AC_W4

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W5

Insulated Sheath

278001007

$3.58

R_AC_W5

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W6

Insulated Sheath

278001007

$3.58

R_AC_W6

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W7

Insulated Sheath

278001007

$3.58

R_AC_W7

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W8

Insulated Sheath

278001007

$3.58

R_AC_W8

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W9

Insulated Sheath

278001007

$3.58

R_AC_W9

Female Terminal | DS 650 X

278001009

$3.19

R-36

Resistor

710007285

$2.24

SB

Housing

710002177

$3.19

SB

Lock

710002043

$0.90

SB

Seal

278001482

$3.19

SB

Female Terminal

710001134

$7.69

SIG_L

Female Housing, 2 Circuits

515177192

$9.12

SIG_L

Lock

710001152

$4.39

SIG_L

Wire Seal

710001163

$7.69

SIG_L

Female Terminal

710001164

$8.89

SIG_R

Female Housing, 2 Circuits

515177192

$9.12

SIG_R

Lock

710001152

$4.39

SIG_R

Wire Seal

710001163

$7.69

SIG_R

Female Terminal

710001164

$8.89

SS

Female Housing, 2 Circuits

515177192

$9.12

SS

Lock

710001152

$4.39

SS

Seal Wire

710001153

$2.21

SS

Female Terminal

710001164

$8.89

TEMP

Housing

710000645

$15.36

TEMP

Seal

278001482

$3.19

TEMP

Female Terminal

278001481

$3.49
