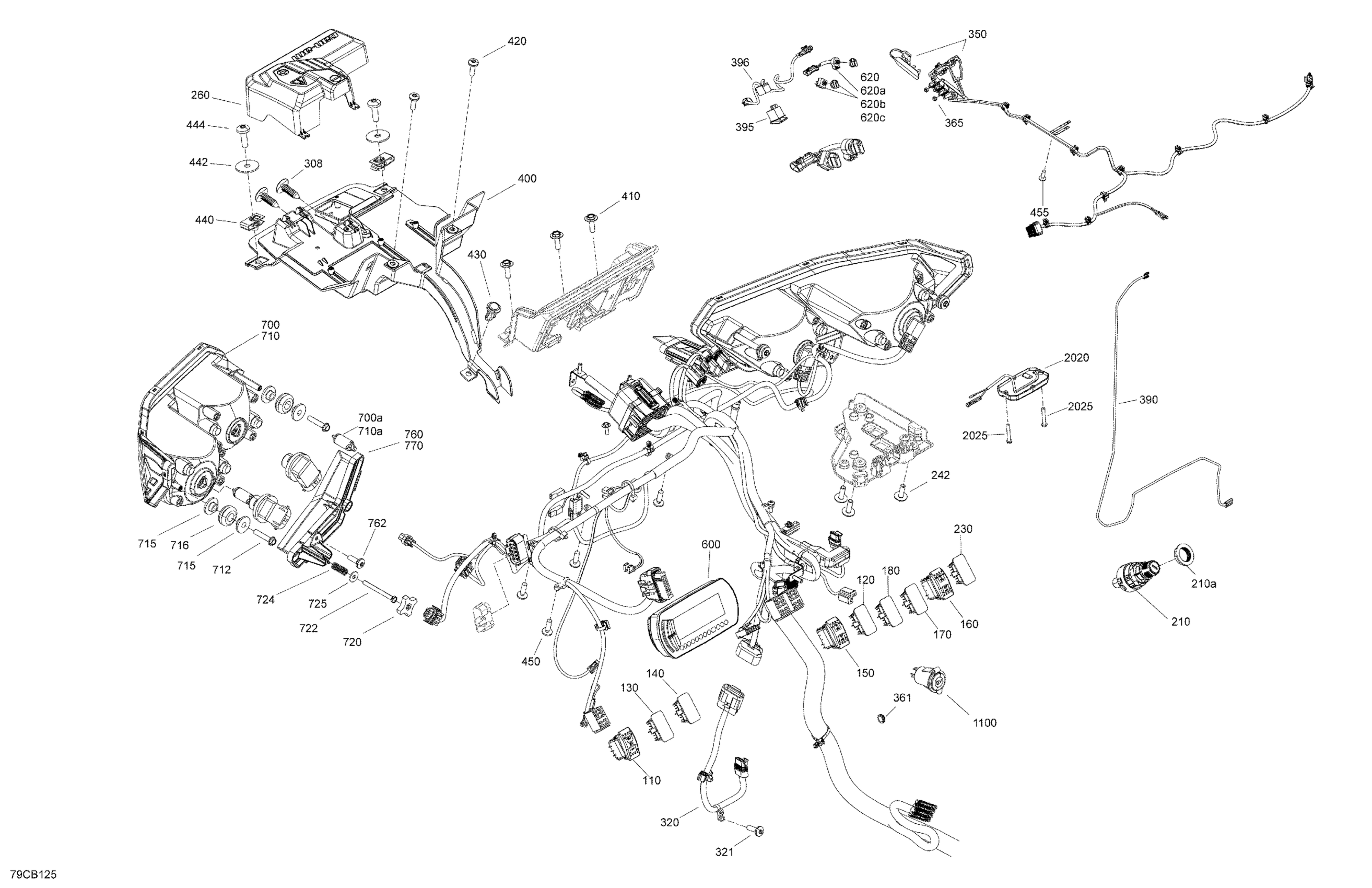

Can-Am Defender HD9 - CAB (8UNC-8UND) - 2022 Electric - Front Section Diagram

#

Description
Price

110

Light Switch

710004492

$47.49

120

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

150

Switch 2X4

710005489

$31.99

160

Differential Lock Switch

710005470

$46.49

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

210

Ignition Switch | Includes 210 to 210b

710007324

$64.49

210a

Specialized Nut

710007923

$2.11

210b

Blank Ignition Key

715900934

$19.99

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

242

Screw PT Type K-50 X 16

250000959

$2.11

260

Junction Block Cover

710006707

$6.35

308

Black, Dart

293730006

$0.99

320

Throttle Pedal Harness

710006837

$239.99

321

Torx Screw K50 X 16

250000720

$1.69

350

Window/Wiper Harness

710004462

$80.99

361

Boot

710002743

$3.29

365

Elastic Stop Nut M6, Brass

232561200

$4.23

390

Wiper Harness

710004466

$34.99

395

Wiper Switch

710004941

$46.49

396

Wiper Harness

710004942

$43.99

400

Wiring Harness Support

710006649

$24.49

410

Screw PT Type K-50 X 16

250000959

$2.11

420

Torx Screw K50 X 16

250000720

$1.69

430

Tuflok Plastic Rivet

293150230

$1.47

440

Panel Nut M6 X 1.0

250100198

$2.11

442

Washer M6

250200029

$2.50

444

Torx Screw M6 X 20

250000712

$2.11

450

Screw PT Type K-50 X 16

250000959

$2.11

455

Torx Screw K50 X 16

250000720

$1.69

600

Multifunction Compact Gauge

710007407

$379.99

620

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$116.49

620a

Not Available As Spare Parts

XXX

Unavailable

620b

Not Available As Spare Parts

XXX

Unavailable

620c

Not Available As Spare Parts

XXX

Unavailable

700

RH Beam | Includes 710 to 710a

710008317

$199.99

700a

Halogen Bulb H8 12V 35W Blue

715900653

$46.49

710

LH Beam | Includes 700 to 700a

710008316

$199.99

710a

Halogen Bulb H8 12V 35W Blue

715900653

$46.49

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

715

Shoulder Bushing

710004749

$2.69

716

Grommet

709000582

$4.69

720

Handle

572106600

$10.33

722

Hex. Screw K40 X 45

250000718

$2.11

724

Spring

517168600

$7.39

725

Flat Washer 4 mm, Stainless

234042600

$1.15

760

Deep Black, LH Front Headlight Trim

710008973

$20.99

762

Screw PT Type K-50 X 16

250000959

$2.11

770

Deep Black, RH Front Headlight Trim

710008974

$20.99

1100

12V Power Outlet

710005374

$33.99

2020

Dome Light

715002455

$96.49

2025

Hex. Flange Screw K40 X 25

241142560

$2.64
