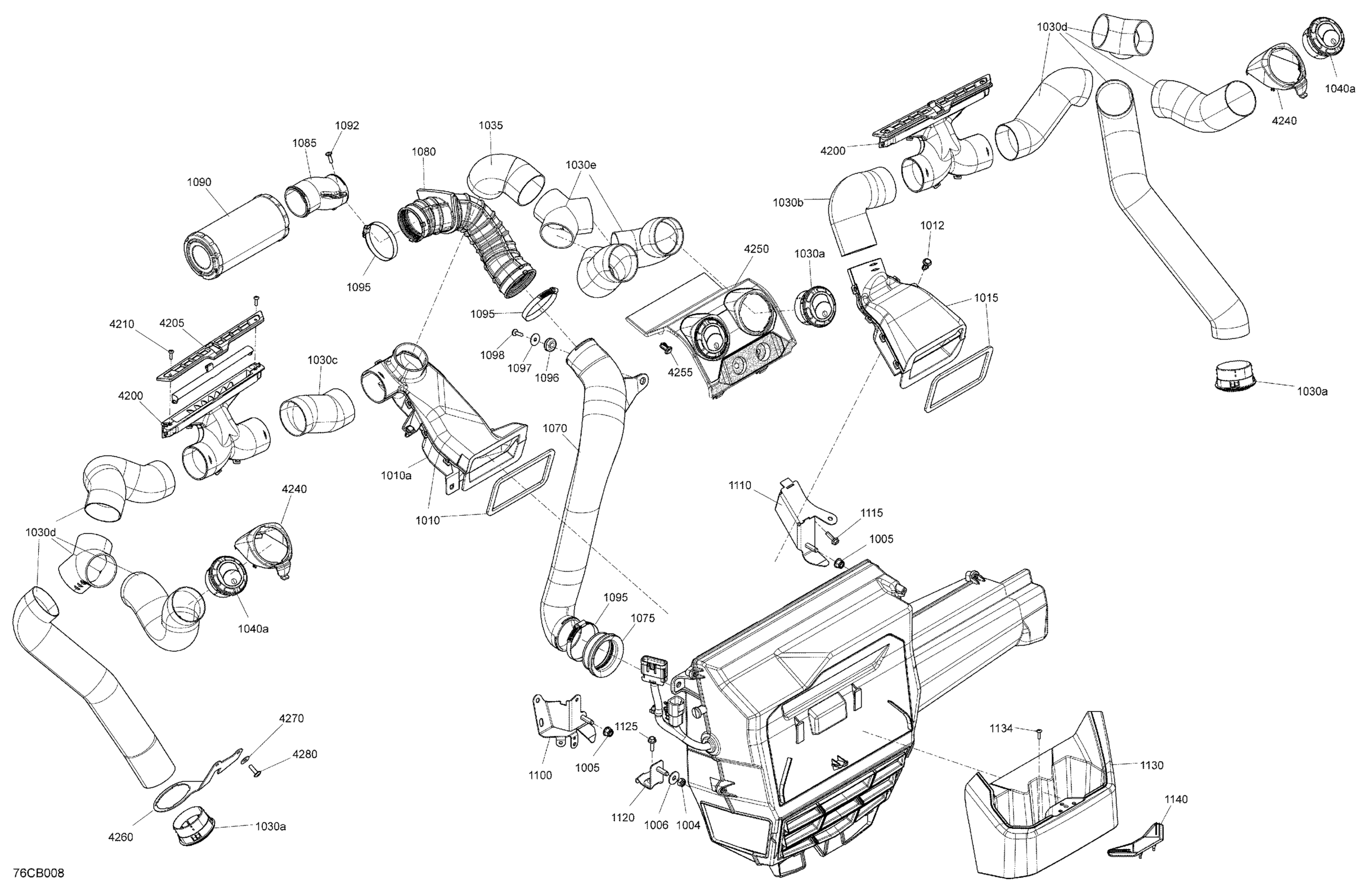

Can-Am Defender HD9 - CAB (8UNC-8UND) - 2022 Enclosure Cab - Air Conditioning System Diagram

Description

Price

1004

Hex. Elastic Stop Nut M8

232581414

$0.56

1005

Hex. Flange Elastic Nut M8

233281414

$1.47

1006

Flat Washer 8 mm

234082410

$1.47

1010

LH Manifold Ass'y | Includes 1010 to 1010a

705800649

$20.99

1010a

LH Manifold

705800428

$18.49

1012

Tuflok Plastic Rivet

293150230

$1.47

1015

RH Manifold Ass'y | Includes 1015 to 1015a

705800650

$20.99

1030a

Grille Scoop

705800436

$24.99

1030b

Duct Ventilation Kit

705800706

$12.99

1030c

Duct Ventilation Kit

705800706

$12.99

1030d

Duct Ventilation Kit

705800842

$77.99

1030e

Ventilation Duct Kit

705800707

$81.99

1035

Adaptor

705800690

$28.99

1040a

Grille Scoop

705800436

$24.99

1070

Intake Duct

705800377

$27.99

1075

Lower Intake Fitting

705800437

$19.99

1080

Upper Intake Fitting

705800438

$55.99

1085

Upper Intake Duct

705800439

$33.99

1090

Air Filter

705800395

$35.99

1092

Torx Screw K50 X 16

250000720

$1.69

1095

Norma Gear Clamp

293650118

$13.16

1096

Grommet

709000582

$4.69

1097

Flat Washer

250200040

$1.90

1098

Torx Screw K50 X 16

250000720

$1.69

1100

LH Upper Console Support

705800571

$64.99

1110

RH Upper Console Support

705800443

$64.99

1115

Hex. Flange Screw M6 X 20

207662044

$2.00

1120

Lower Console Support

705800444

$20.99

1125

Hex. Flange Screw M6 X 20

207662044

$2.00

1130

Cup Holder

705800452

$39.99

1134

Torx Truss PT K40 x 12

250001131

$2.11

1140

Cup Retainer

707900036

$6.89

4200

Central Adapter

705800501

$27.99

4205

Front Ventilation Grille

705800425

$13.49

4210

Torx-Truss Pt K40 X 16

250000759

$2.11

4240

Side Grille Support

705800426

$5.39

4250

Central Grille Support

715007289

$34.99

4255

Tuflok Plastic Rivet

293150230

$1.47

4260

LH Lower Grille Support

705800455

$21.99

4270

Stainless Steel Flat Washer

234062670

$2.11

4280

Torx Screw M6 X 20

250000722

$1.68
