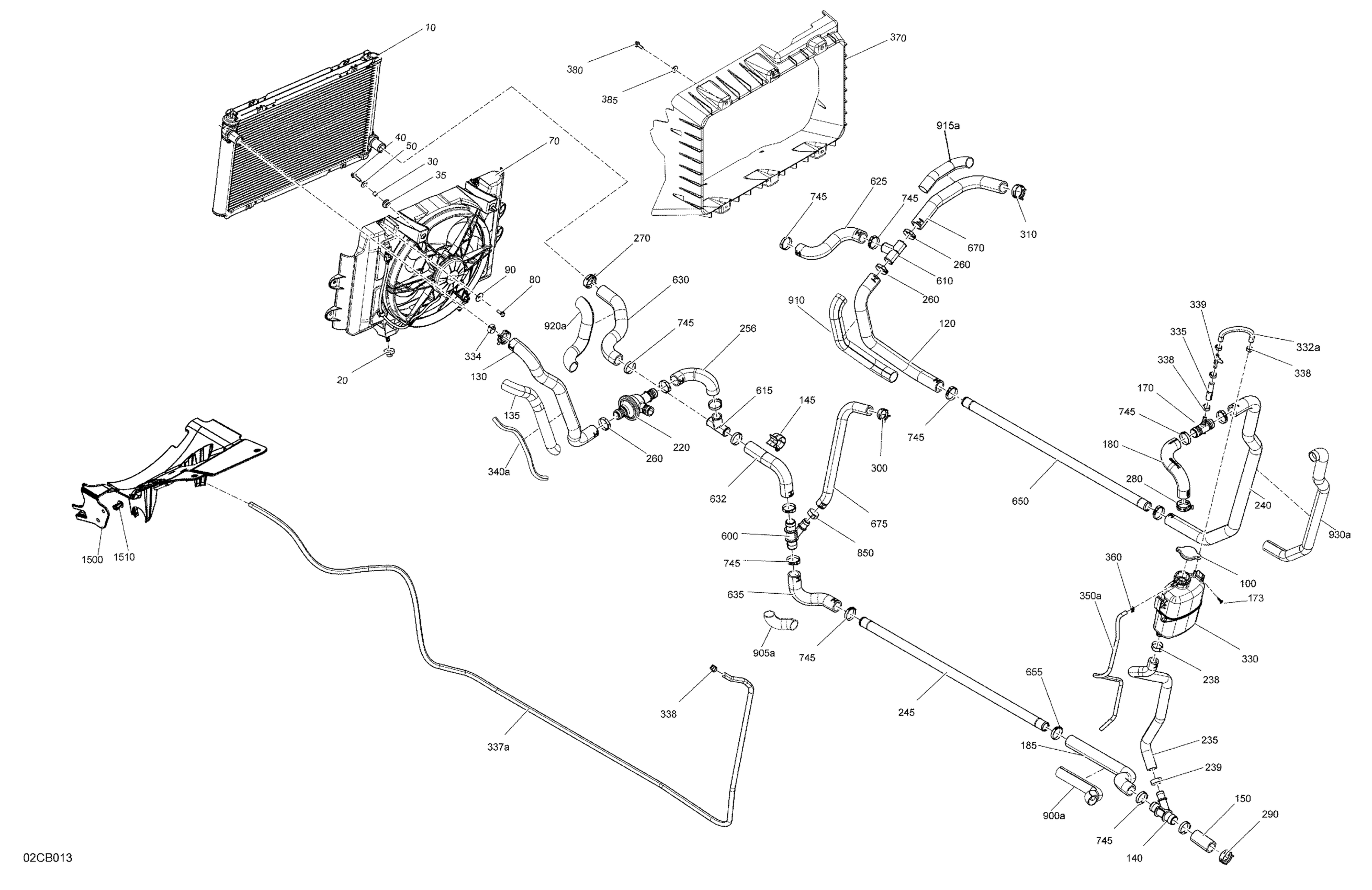

Can-Am Defender HD9 - CAB (8UNC-8UND) - 2022 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200951

$359.97

20

Grommet

709200948

$7.09

30

Bushing

293900105

$6.26

35

Grommet

709000582

$4.38

40

Hex. Flange Screw M6 X 25

207662544

$0.53

50

Flat Washer 6 mm

234062410

$0.64

70

Fan Ass'y

709200534

$323.05

80

Hex. Flange Screw M6 X 20

207662044

$1.66

90

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

$18.82

120

Hose

709200973

$13.83

130

Formed Radiator Hose IN

709201443

Unavailable

135

Tubing 35 MM 1000MM Long

219704428

$8.57

140

Y Fitting

509001200

$5.52

145

Retainer

275500590

$7.18

150

Hose

709200299

$6.92

170

T-Fitting

509000510

$11.52

173

Torx Screw K50 X 16

250000720

$1.39

180

Hose Engine Out

709200915

$41.51

185

Hose

709200971

$41.51

220

Thermostat Housing

709200986

$92.28

235

Hose Coolant Tank Out

709201103

$36.89

238

Oetiker Gear Clamp

293650165

$4.32

239

Oetiker Gear Clamp

293650165

$4.32

240

Hose

709200969

$36.89

245

Heater Tubing

709200657

$13.98

256

Formed Thermostat Hose OUT

709201439

Unavailable

260

Gear Clamp

509000162

$7.37

270

Norma Spring Clamp

293650166

$4.28

280

Norma Spring Clamp

293650166

$4.28

290

Norma Spring Clamp

293650166

$4.28

300

Aba Gear Clamp, 26-38 MM

509000443

$5.68

310

Aba Gear Clamp, 26-38 MM

509000443

$5.68

330

Coolant Tank

709201323

$78.43

332a

Was 415129508 Bleeder Hose

219704416

$11.83

334

Oetiker Clamp

293650042

$1.40

335

Bleeding Hose

709200606

$18.43

337a

Was 415129508 Bleeder Hose

219704416

$11.83

338

Crimp Clamp, 15.3-706R

293650047

$2.64

339

Y-Fitting

293710059

$8.19

340a

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350a

Polyurethane Hose

293830193

Unavailable

360

Spring Clamp

414554800

$0.83

370

Radiator Deflector Kit

715008385

$87.66

380

Hex. Flange Screw M6 X 20

207662044

$1.66

385

Flat Washer 6 mm

234062410

$0.64

600

Y Fitting

509001200

$5.52

610

T-Fitting

509001313

$15.35

615

T-Fitting

509001313

$15.35

625

Hose Thermostat In

709201031

$15.35

630

Formed Radiator Hose OUT

709201440

Unavailable

632

Formed Radiator Hose OUT

709201437

$11.06

635

Hose

709200972

$13.83

650

Heater Tubing

709200657

$13.98

655

Gear Clamp

509000162

$7.37

670

Hose

709200976

$13.83

675

Hose

709200975

$13.83

745

Gear Clamp

509000162

$7.37

850

Oetiker Gear Clamp

293650165

$4.32

900a

Tubing 35 mm

515176260

Unavailable

905a

Tubing 35 mm

515176260

Unavailable

910

Tubing 35 MM 1000MM Long

219704428

$8.57

915a

Tubing 35 mm

515176260

Unavailable

920a

Tubing 35 mm

515176260

Unavailable

930a

Tubing 35 mm

515176260

Unavailable

1500

Front Air Deflector

709201036

$99.97

1510

Tuflok Plastic Rivet

293150230

$1.21
