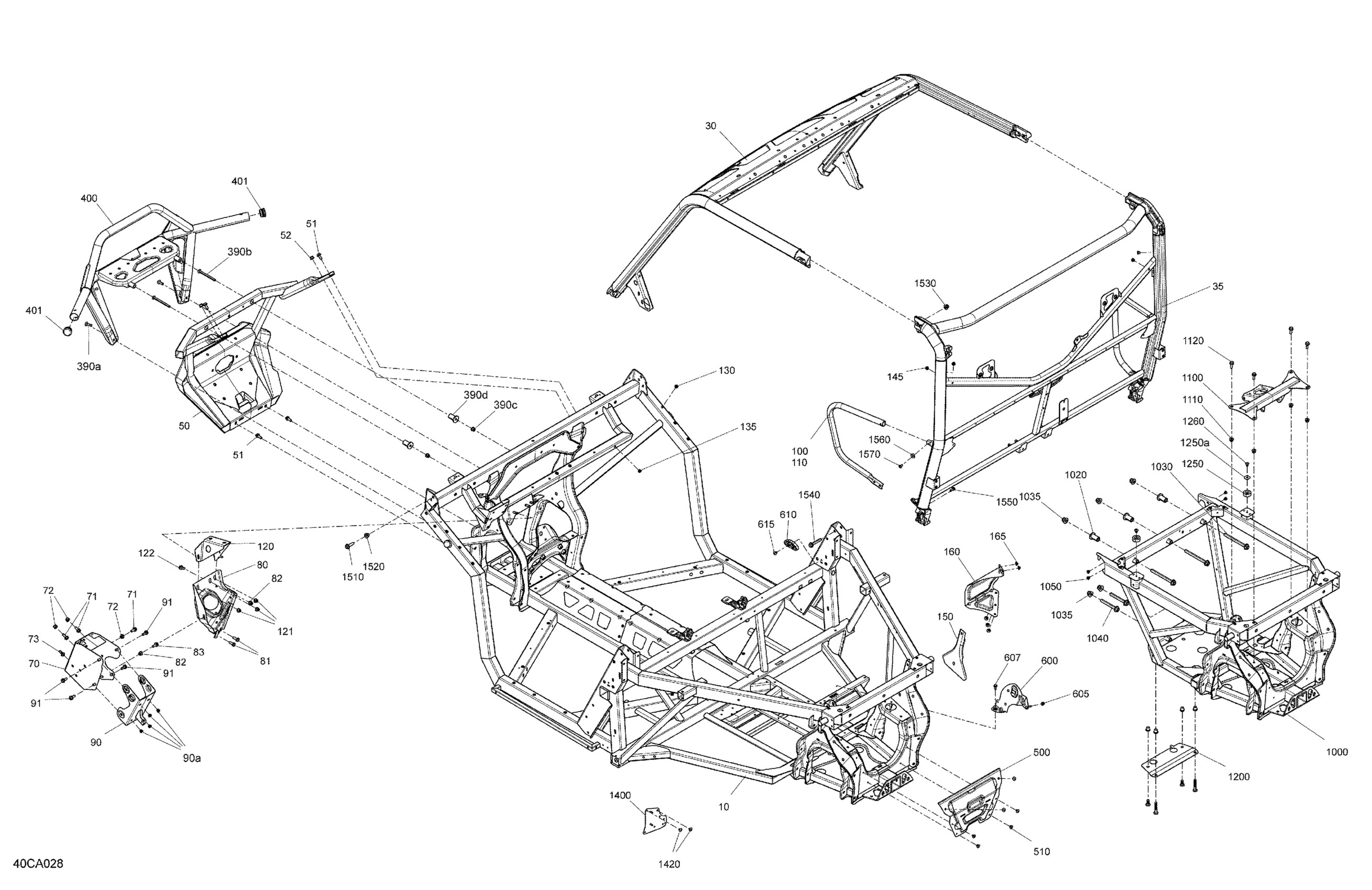

Can-Am Defender 6X6 HD10 - DPS_XT - 2021 Frame - System Diagram

#

Description
Price

10

Deep Black, Rear Chasis Kit

715009073

$3,239.99

10

Deep Black, Chassis Kit

715009069

$3,159.99

30

Deep Black, Front Cage Service Kit

715008354

$649.99

35

Rear Cage Profile Ass'y

715007384

$649.99

40

Deep Black, Front Bumper

715005754

$351.49

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Elastic Flange Nut M8

233281416

$1.48

70

Module Support

705209388

$61.99

71

Hex. Flange Screw M8 X 20

207682044

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

80

Power Steering Support

705208741

$70.99

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

82

Hex. Elastic Flange Nut M8

233281416

$1.48

83

Hex. Flange Screw M8 X 20

207682044

$1.15

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

90a

Insert Half Hex Body M6 x 1.0

250100199

$3.19

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

100

Deep Black, LH Protector Tube

705204594

$44.49

110

Deep Black, RH Protector Tube

705204592

$44.49

120

Support

705208742

$30.99

121

Hex. Elastic Flange Nut M8

233281416

$1.48

122

Hex. Flange Screw M8 X 20

207682044

$1.15

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Insert Half Hex Body M6 x 1.0

250100199

$3.19

145

Insert Half Hex Body M6 x 1.0

250100199

$3.19

150

Heat Shield

705014849

$2.59

160

Heat Shield

707002717

$51.99

165

Pop Rivet 3/16"

293150103

$0.55

390a

Torx Screw M8 X 30

250000886

$2.11

390b

Torx Truss M/S M8 x X 100

250001106

$7.97

390c

Hex. Flange Elastic Nut M8

233281414

$1.47

390d

Spacer

705207754

$14.49

400

Deep Black, Front Bumper

715005754

$351.49

401

Cap

705202455

$5.69

500

Rear Chassis Reinforcement

705207753

$33.99

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

600

Voltage Regulator Support

710007522

$17.49

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

610

Spacer

705208203

$20.99

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000

Deep Black, Rear Chasis Kit

715009073

$3,239.99

1020

Spacer

705207755

$15.99

1030

Screw Flange M12 X 135

250000892

$6.49

1035

Elastic Flange Nut M12

233221466

$2.89

1040

Hex. Flange Screw M12 X 95

250000876

$6.77

1050

Hemlock Rivet, 6.4 mm

293150174

$7.86

1100

Upper Rear Differential Support

705208227

$50.99

1110

Hex. Elastic Flange Nut M8

233281416

$1.48

1120

Hex. Flange Screw M8 X 25

207682534

$2.11

1200

Rear Skid Plate

705208867

$29.49

1250

Rubber Stopper | Includes 830 to 830a

708303134

$2.39

1250a

Washer

224060251

$0.58

1260

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1400

Rear Solenoid Support

705015933

$19.99

1420

Pop Rivet 3/16"

293150103

$0.55

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1520

Hex. Flange Elastic Nut M10

233201436

$2.11

1530

Flange Elastic Nut M10

233201466

$3.17

1540

Hex. Flange Screw M10 X 6

207606046

$4.12

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1560

Offset Washer

705202223

$4.14

1570

Torx Truss M6X14

250000789

$5.39
