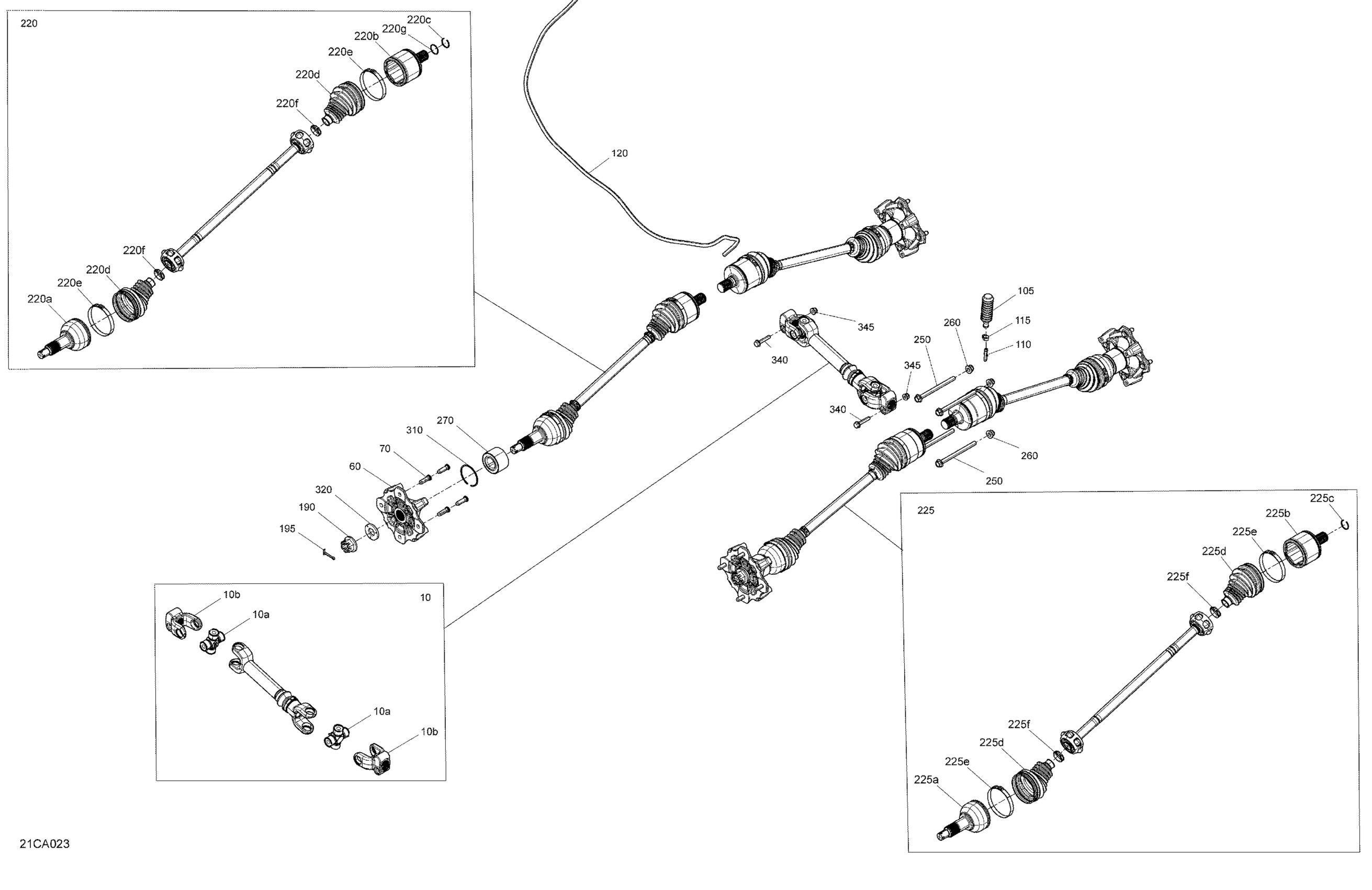

Can-Am Defender 6X6 HD10 - DPS_XT - 2021 Drive - Rear Section - Common Parts Diagram

Description

Price

Drive Axle Ass'y | Includes 10 to 10b

705502784

$243.25

10a

U-joint (universal joint) Kit

715900648

$72.36

10b

Yoke

715900645

$23.10

Wheel Hub

705502338

$108.18

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

105

Rubber Bellow | 4X4

705400552

$5.84

110

Straight Fitting

293710039

$6.75

115

Oetiker Clamp

293650042

$2.82

120

Was 293830195 Polyurethane Hose

219704390

$18.63

190

Castle Nut M20

250100193

$7.64

195

Cotter Pin

250400084

$2.06

220

CV Joint | Includes 230 to 230f

705502831

$226.84

220a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

220b

Plunging Joint

715900444

$256.69

220c

Circlip

705501781

$5.10

220d

Boot Kit

705501864

$39.52

220e

Oetiker Clamp, 82.1 mm

715900241

$9.00

220f

Oetiker Clamp, 27.3 mm

715900242

$9.00

220g

O-Ring

715900579

$1.97

225

CV Joint | Includes 225 to 225f

705502850

$226.84

225a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

225b

Plunging Joint

715900433

$238.78

225c

Circlip

705501781

$5.10

225d

Boot Kit

705501864

$39.52

225e

Oetiker Clamp, 82.1 mm

715900241

$9.00

225f

Oetiker Clamp, 27.3 mm

715900242

$9.00

250

Hex. Flange Screw, M10 X 130

230603046

$6.99

260

Hex. Flange Elastic Nut M10

233201436

$2.00

270

Ball Bearing

293350150

$50.34

310

Circlip

293370019

$4.68

320

Conical Spring Washer M20

250200170

$12.63

340

Hex. Flange Screw M8 X 42

250001050

$1.09

345

Hex. Elastic Flange Nut M8

233281416

$1.43
