Description

Price

105

Torx Truss Screw M6 X 16

250000721

$1.69

115

Torx Screw M6 X 20

250000722

$1.69

170

Panel Nut M6 X 1.0

250100198

$2.19

180

Front Upper Deflector

707901082

$54.99

181

Pop Rivet 3/16"

293150103

$1.49

185

Front Upper Deflector

707900747

$12.99

190

LH Upper Deflector

707900738

$54.99

200

RH Upper Deflector

707900739

$54.99

205

Panel Nut M6 X 1.0

250100198

$2.19

210

Torx Screw K50 X 16

250000720

$1.69

350

Front Panel Trim

707900740

$21.49

360

Torx Screw K50 X 16

250000720

$1.69

450

Rubber Cover

293250242

$6.99

500

Front Cab Panel Ass'y | Includes 500 to 500b

707900981

$219.99

500b

Panel Nut M6 X 1.0

250100198

$2.19

501

Pop Rivet 3/16"

390402200

$1.49

505

Stainless Steel Flat Washer

234062670

$2.19

510

Torx Screw M6 X 20

250000722

$1.69

515

Flat Washer M8

250200158

$2.19

520

Torx Truss Screw M6 X 25

250000807

$2.19

524

Torx Screw M6 X 20

250000712

$2.19

525

Torx Screw M6 X 20

250000722

$1.69

530

Hex. Flange Elastic Nut M6

233261494

$1.59

535

Stainless Steel Flat Washer

234062670

$2.19

540

Stainless Steel Flat Washer

234062670

$2.19

545

Torx Screw K50 X 16

250000720

$1.69

560

Split Grommet

707900719

$4.39

630

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.19

635

Flat Washer M6.6 X 22

250200162

$2.39

874

Torx Screw M6 X 20

250000712

$2.19

875

Torx Screw M6 X 20

250000722

$1.69

880

Hex. Flange Elastic Nut M6

233261494

$1.59

885

Stainless Steel Flat Washer

234062670

$2.19

980

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.19

985

Flat Washer M6.6 X 22

250200162

$2.39

1030

Sterring Column Trim

707900851

$6.09

1100

LH Front Deflector

707900750

$54.99

1110

RH Front Deflector

707900751

$54.99

1120

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1130

Torx Screw K50 X 16

250000720

$1.69

1300

Exterior Cover

707900389

$14.49

1310

Tuflok Plastic Rivet

293150230

$1.49

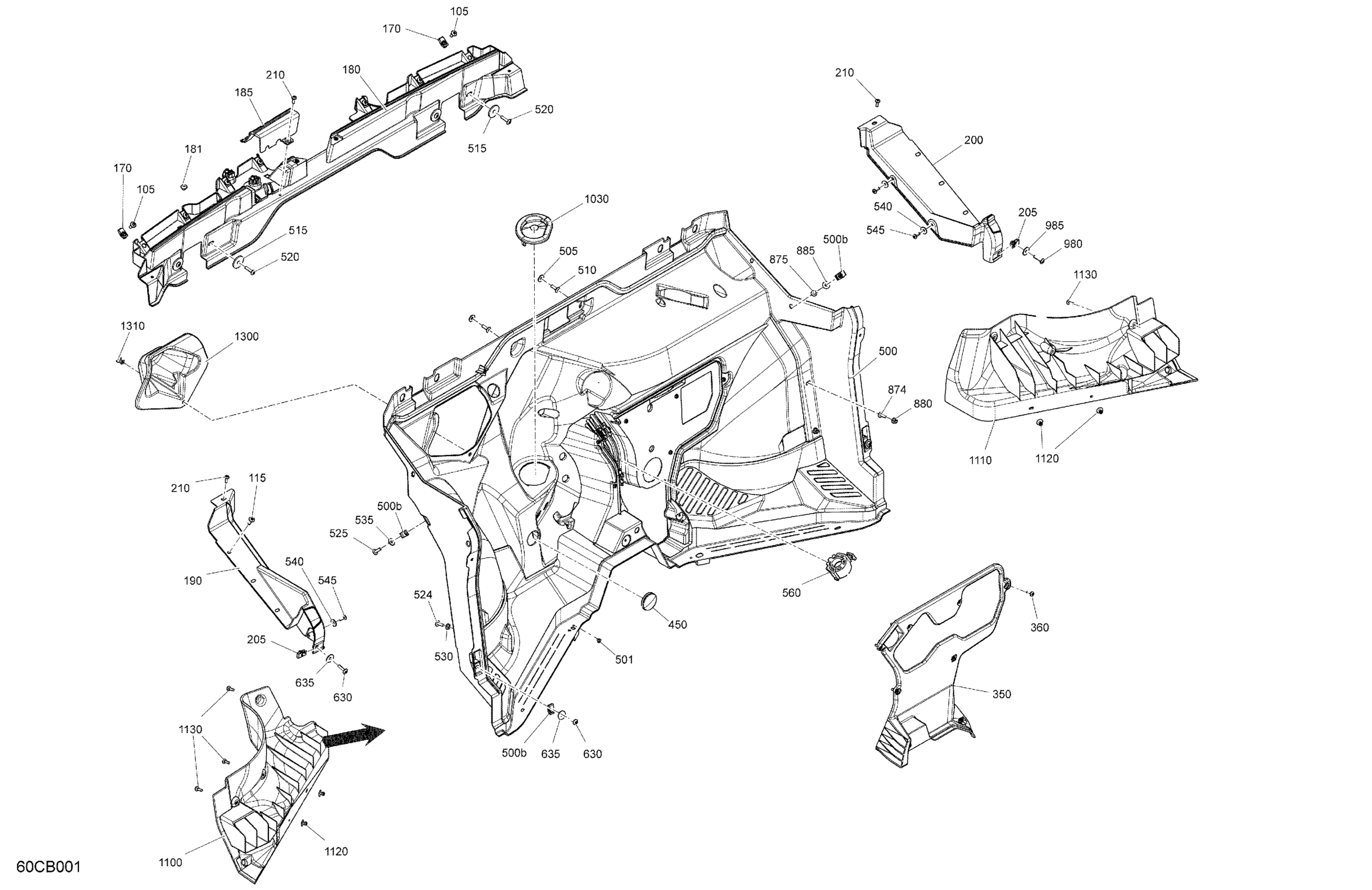

Can-Am Defender HD7 - DPS - 2022 Cab Interior - Firewall Diagram

Torx Truss Screw M6 X 16

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Front Upper Deflector

Pop Rivet 3/16"

Front Upper Deflector

LH Upper Deflector

RH Upper Deflector

Panel Nut M6 X 1.0

Torx Screw K50 X 16

Front Panel Trim

Torx Screw K50 X 16

Rubber Cover

Front Cab Panel Ass'y | Includes 500 to 500b

Panel Nut M6 X 1.0

Pop Rivet 3/16"

Stainless Steel Flat Washer

Torx Screw M6 X 20

Flat Washer M8

Torx Truss Screw M6 X 25

Torx Screw M6 X 20

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Stainless Steel Flat Washer

Stainless Steel Flat Washer

Torx Screw K50 X 16

Split Grommet

Torx Truss Hex. Screw M6X35, Nylon Patch

Flat Washer M6.6 X 22

Torx Screw M6 X 20

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Stainless Steel Flat Washer

Torx Truss Hex. Screw M6X35, Nylon Patch

Flat Washer M6.6 X 22

Sterring Column Trim

LH Front Deflector

RH Front Deflector

Pop Rivet 3/16" | DS 650 X

Torx Screw K50 X 16

Exterior Cover

Tuflok Plastic Rivet
