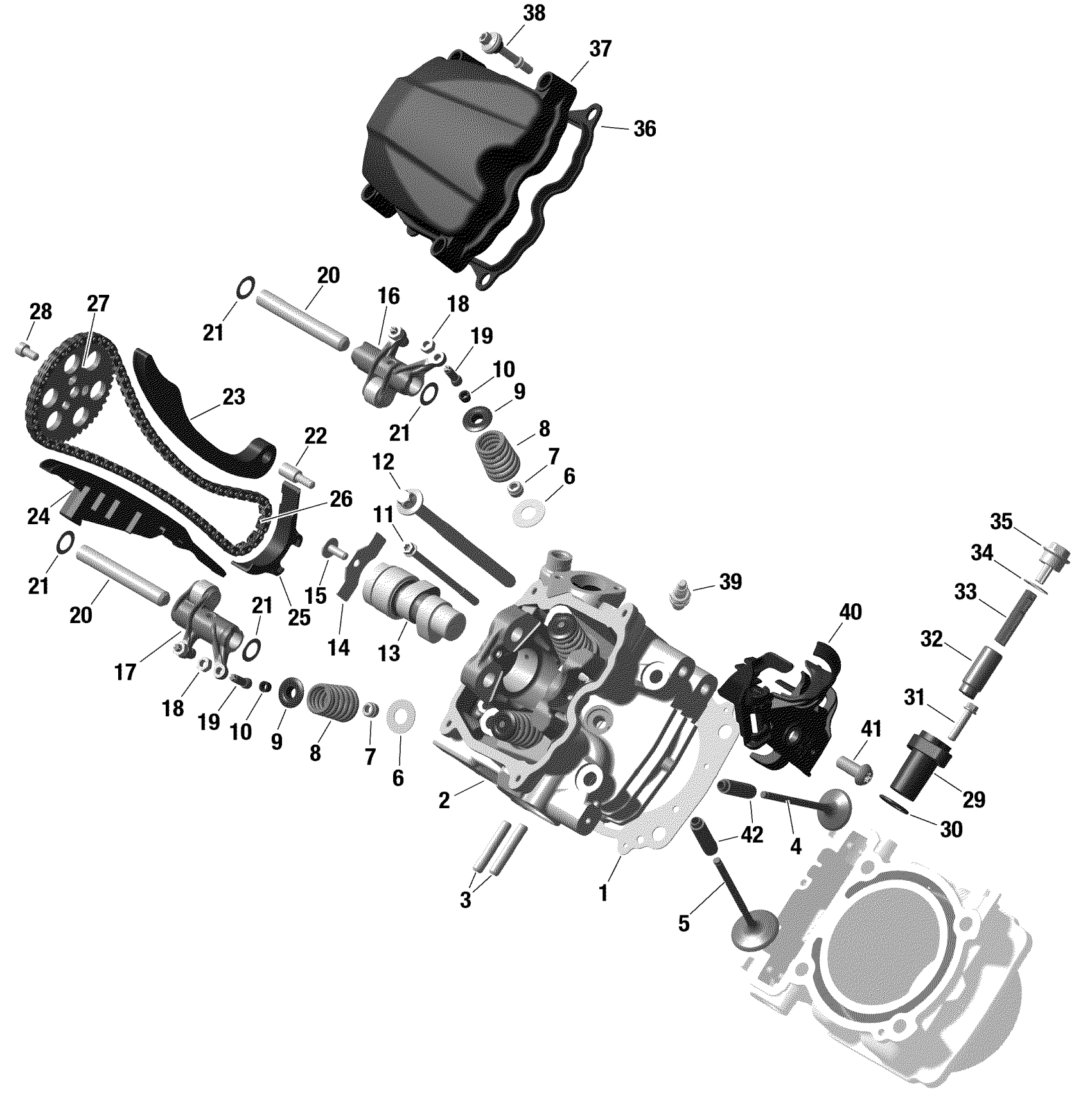

Can-Am Defender HD10 - DPS - 2022 Rotax - Cylinder Head, Front Diagram

#

Description
Price

1

Cylinder Head Gasket | 400HO

420630195

$81.99

2

Cylinder Front Ass'y | Includes 2a to 3

420413106

$660.49

3

Stud M8 x 26

420941014

$14.49

4

Exhaust Valve 31MM

420253172

$69.99

5

Intake Valve 36.5mm

420253162

$39.49

6

Thrust Washer

420627525

$1.79

7

Valve Stem Seal

420430420

$7.90

8

Valve Spring

420239292

$14.81

9

Valve Spring Retainer

420254137

$14.81

10

Valve Cotter

420254602

$2.49

11

Torx Flange Screw M6 X 105

420440612

$7.59

12

Torx Screw M10 X 159

420441287

$12.71

13

Camshaft

420637445

$444.99

14

Holding Strip

420627743

$18.49

15

Torx Screw M6 X 16

420241529

$1.79

16

Rocker Arm Inlet

420653067

$71.99

17

Rocker Arm Exhaust

420653075

$79.49

18

Hex Nut M6

420242913

$0.51

19

Adjustment Screw M6 X 0.75

420241337

$5.19

20

Pin 12 X 87.5

420229714

$28.49

21

Shim

420944382

$4.19

22

Bearing Screw M6

420240943

$5.39

23

Chain Tension Guide

420436019

$66.49

24

Chain Guide

420236583

$10.49

25

Chain Guide

420236351

$15.49

26

Silent Chain

420297068

$116.49

27

Timing Gear 42T

420254438

$18.49

28

Allen Screw M6 X 12

420840032

$4.49

29

Chain Tensioner Housing

420236510

$11.99

30

O-Ring

420430373

$3.29

31

Torx Flange Screw M6 X 25

420440235

$2.19

32

Chain Tensioner Plunger

420236521

$15.49

33

Spring

420238120

$7.59

34

O-Ring

420250892

$5.49

35

Plug Screw

420641150

$7.59

36

Gasket

420630260

$9.09

37

Valve Cover

420610393

$27.99

38

Hex Screw M6 X 30

420440568

$8.79

39

Spark Plug, NGK LMAR8C-9

715900244

$12.99

40

Conductor Holder

420251181

$16.99

41

Rounded Head Screw M10 X 25

420641030

$4.07

42

Valve Guide

420254377

$36.99
