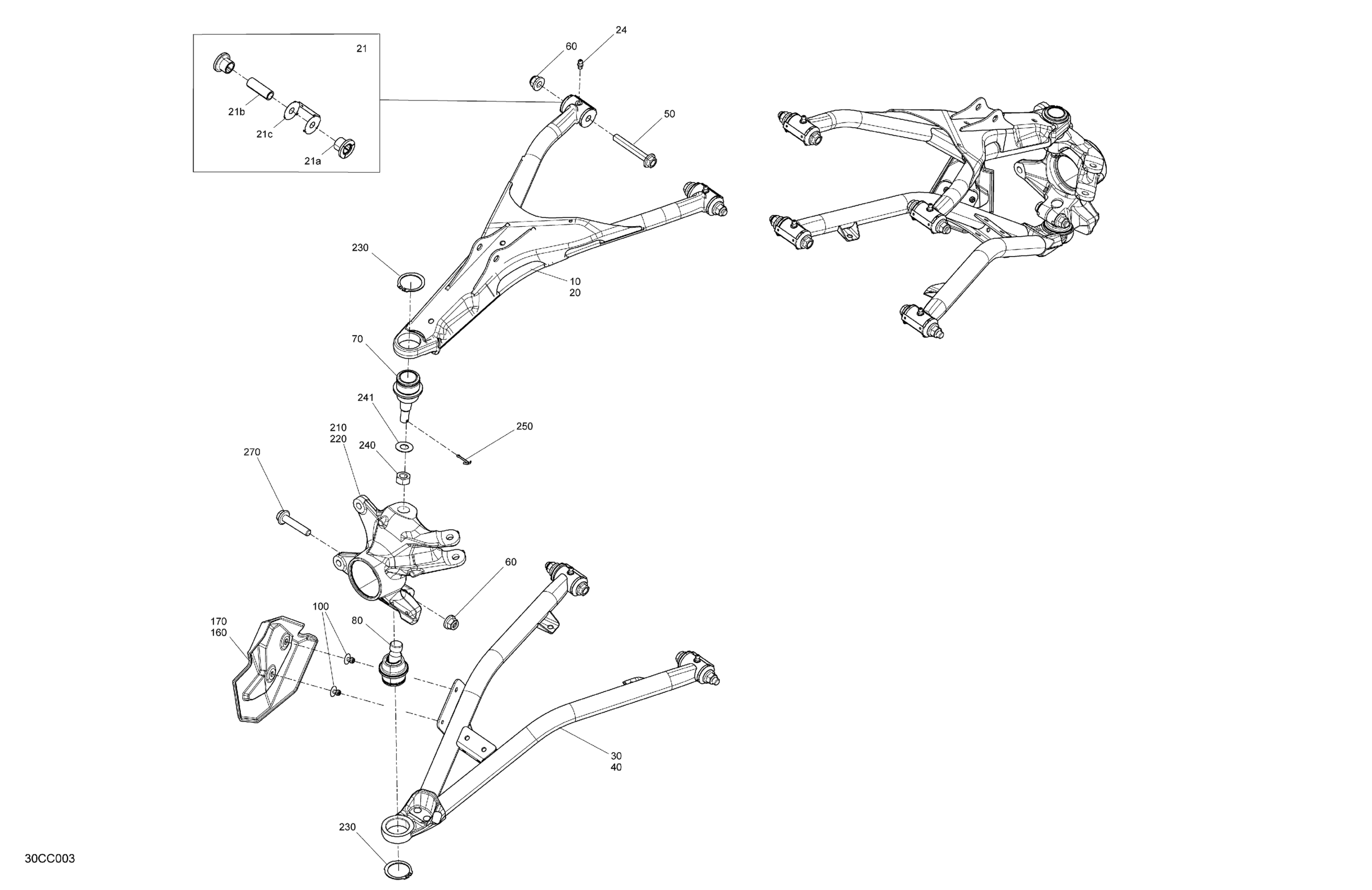

Can-Am 007 - Traxter PRO HD10 - XU - T Regulation, 2023 05- Suspension - Front Components Diagram

#

Description
Price

10

LH Upper Suspension Arm

706204077

$201.49

20

RH Upper Suspension Arm

706204078

$201.49

21

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

21a

Not Available As Spare Parts

XXX

Unavailable

21b

Not Available As Spare Parts

XXX

Unavailable

21c

Not Available As Spare Parts

XXX

Unavailable

24

Grease Fitting

408200700

$3.49

30

LH Lower Suspension Arm

706203995

$201.49

40

RH Lower Suspension Arm

706203996

$201.49

50

Hex. Flange Screw M10 X 70

207607046

$2.96

60

Hex. Flange Elastic Nut M10

233201436

$2.11

70

Ball Joint

706203084

$35.99

80

Ball Joint

706202045

$35.99

100

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

160

RH CV joint Guard

706202135

$11.01

170

LH CV joint Guard

706202134

$11.01

210

LH Knuckle

706205517

$148.49

220

RH Knuckle

706205047

$201.49

230

Circlip

293370035

$2.64

240

Hex Nut M12

250100239

$2.00

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

270

Hex. Flange Screw M10 X 55

207605546

$2.11
