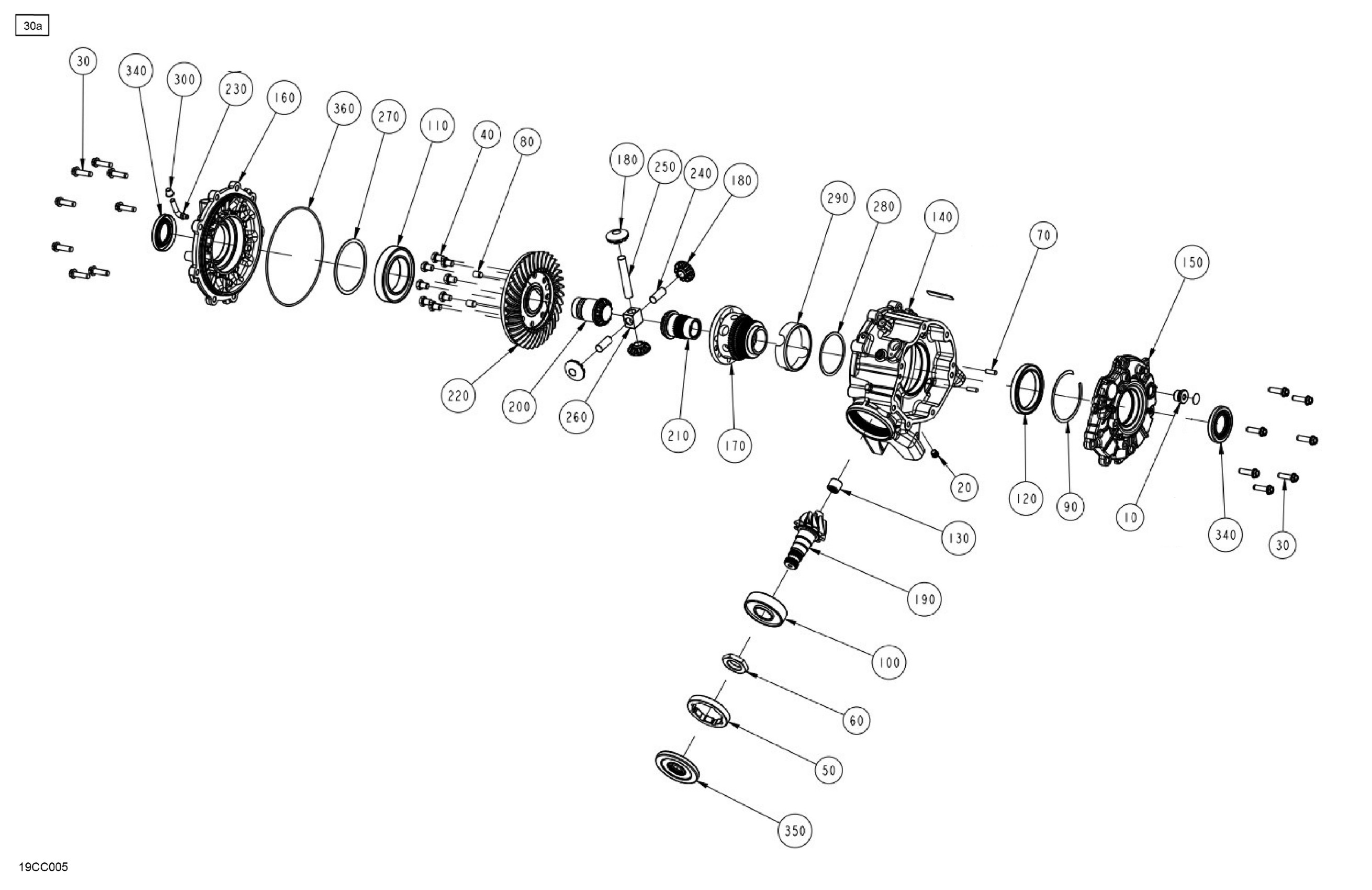

Can-Am Traxter PRO HD10 - XU - T Regulation, 2023 Drive - Front - Differential Parts Diagram

Description

Price

30a

Front differential Ass'y | Includes 30a to 360

705402817

$1,246.12

Fill Level Plug

705501889

$18.43

Fill Level Plug M10

715900563

$27.66

Bolt

705501886

$6.75

Hex Screw 3/8 X 0.500

715900561

$13.83

Nut M75 X 1.5

705401819

$23.05

Nut M27 X 1.5

705401820

$23.05

Dowel Pin

715900559

$6.45

Dowell Pin

715900618

$20.74

Retainin Ring

715900558

$27.66

100

Ball Bearing

705401821

$30.39

110

Ball Bearing 60 X 95 X 18

715900556

$41.32

120

Ball Bearing 65 X 85 X 10

715900554

$89.77

130

Needle Bearing

715900634

$36.12

140

Mid Case

715900675

$304.58

150

RH Cover

715900685

$124.58

160

LH Cover

715900686

$124.58

170

Housing

715900617

$119.97

180

Pinion 10T

715900548

$87.66

190

Pinion 10 T

715900635

$179.97

200

Gear 14T

715900546

$82.28

210

Gear 14T

715900545

$82.28

220

Gear 36T

715900676

$383.05

230

Vent Valve

705401935

$14.37

240

Pinion Pin 0.5 X 1.250

715900543

$20.74

250

Pinion Pin 0.5 X 3.000

715900542

$20.74

260

Coupler, Pin

715900541

$64.58

270

Shim 74.50 X 66.00

715900539

$166.12

280

Shim 3.735 X 3.300

715900538

$258.43

290

Cross Pin Retainer

715900535

$27.66

300

Vent Cap 5/16

715900533

$6.75

340

Oil Seal

715900531

$27.66

350

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$16.89

360

O-Ring

715900530

$11.83
