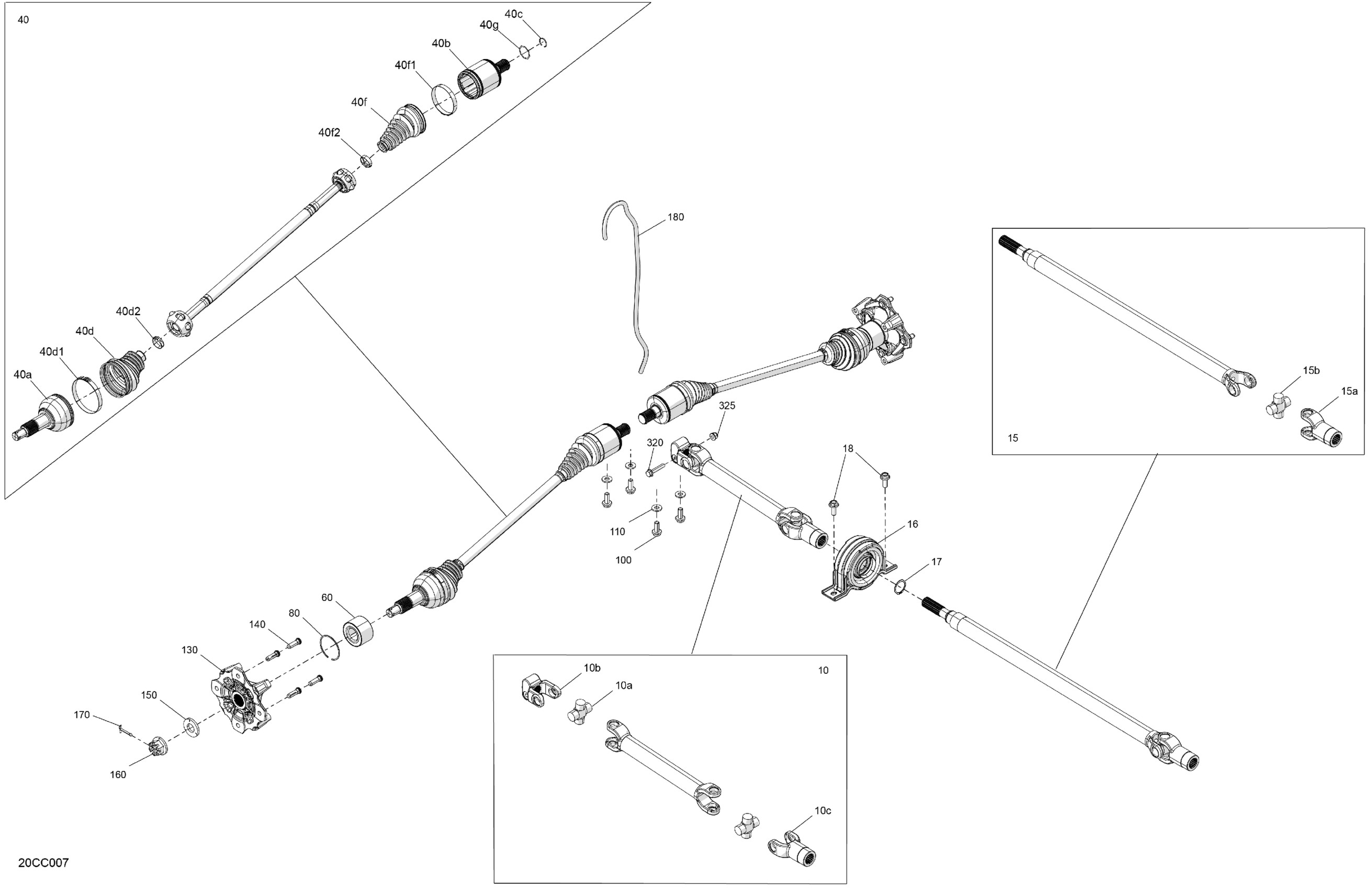

Can-Am Traxter PRO HD10 - XU - T Regulation, 2023 Drive - Front - Common Parts Diagram

Description

Price

Drive Axle Ass'y | Includes 10 to 10c

705403285

$211.99

10a

U-Joint Cross Kit

715900829

$78.49

10b

Fixed Yoke

715900400

$59.49

10c

Yoke

715900401

$35.99

Drive Axle Ass'y | Includes 15 to 15b

705403287

$328.49

15a

U-Joint Cross Kit

715900829

$78.49

15b

Yoke

715900401

$35.99

Ball Bearing Ass'y

705403522

$47.49

Snap Ring

293370098

$3.29

Hex. Flange Screw M10 X 20

207502046

$2.19

CV Joint | Includes 40 to 40g

705403013

$226.84

40a

Exterior CV Joint

715900621

$259.49

40b

Plunging Joint

715900699

$241.01

40c

Circlip

715900569

$5.50

40d

Boot Kit, Wheel Side

705401345

$42.49

40d1

Oetiker Clamp

715900282

$5.39

40d2

Oetiker Clamp, Small

715900283

$5.39

40f

Boot Kit, Différential Side

705401355

$42.49

40f1

Oetiker Clamp, Small

715900261

$5.19

40f2

Oetiker Clamp, Large

715900262

$10.99

40g

O-ring

715900580

$2.51

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 25

207502546

$2.19

110

Conical Spring Washer 10 mm

234201474

$1.69

130

Wheel Hub

705502338

$116.49

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.59

150

Conical Spring Washer M20

250200170

$14.99

160

Castle Nut M20

250100193

$8.19

170

Cotter Pin

250400084

$2.39

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

320

Hex. Flange Screw M8 X 42

250001050

$1.49

325

Hex. Elastic Flange Nut M8

233281416

$1.49
