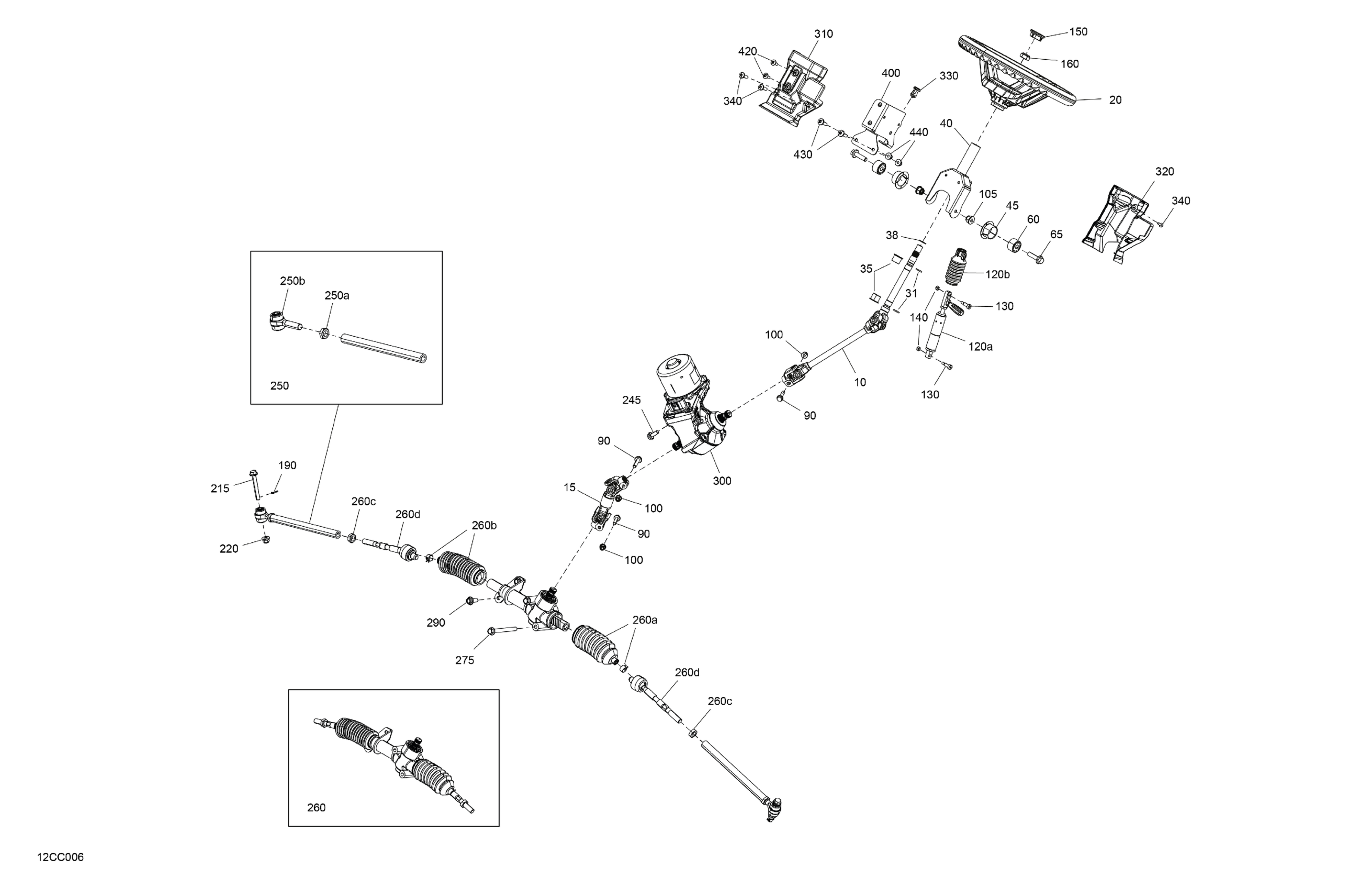

Can-Am Traxter PRO HD10 - XU - T Regulation, 2023 Mechanic - Steering Diagram

#

Description
Price

10

Upper Steering Column

709402995

$219.99

15

Lower Steering Column

709402996

$199.99

20

Steering Wheel

709401513

$519.49

31

O-Ring

293300144

$3.82

35

Steering Bushing

709402725

$3.28

38

Circlip

293370110

$2.61

40

Steering Support

709401602

$83.99

45

Bushing

709401603

$8.85

60

Bushing

709401604

$5.89

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

90

Hex. Flange Screw M8 X 35

250001021

$4.49

100

Hex. Elastic Flange Nut M8

233281416

$1.49

105

Hex. Elastic Flange Nut M8

233281416

$1.49

120a

Adjustment Cylinder

709402506

$72.99

120b

Boot Tube Side

709401232

$18.99

130

Socket Head Screw M8 X 16

250000669

$3.29

140

Elastic Stop Nut M6

232561434

$1.99

150

Steering Cap

709401514

$19.49

160

Elastic Lock Nut M16

232511414

$2.09

190

Cotter Pin

211400017

$1.49

215

Screw Hex Cap M10 X 75

250000814

$4.69

220

Hex. Flange Elastic Nut M10

233201436

$2.19

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

250

Tie Rod Ass'y | Includes 250 to 250b

709402305

$69.99

250a

Steering Rod Nut

715900238

$2.30

250b

Ball Joint

709401991

$52.99

260

Steering Rack And Pinion | Includes 260 to 260d

709402317

$402.49

260a

Boot Kit, Pinion Side

715900235

$54.99

260b

Boot Kit, Tube Side

715900236

$54.99

260c

Steering Rod Nut

715900238

$2.30

260d

Steering Rod

715900951

$41.49

275

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.59

290

Hex. Flange Screw M10 X 25

207502546

$2.19

300

Power Steering Ass'y

709402727

$1,971.61

310

Steering Box Cover

709402012

$13.99

320

Steering Box Cover

709402013

$13.99

330

Tuflok Plastic Rivet

293150230

$1.49

340

Torx Screw K50 X 16

250000720

$1.69

400

Flasher Arm Support

709401962

$30.49

420

Torx Screw M6 X 20

250000722

$1.69

430

Torx Screw M6 X 20

250000712

$2.19

440

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49
