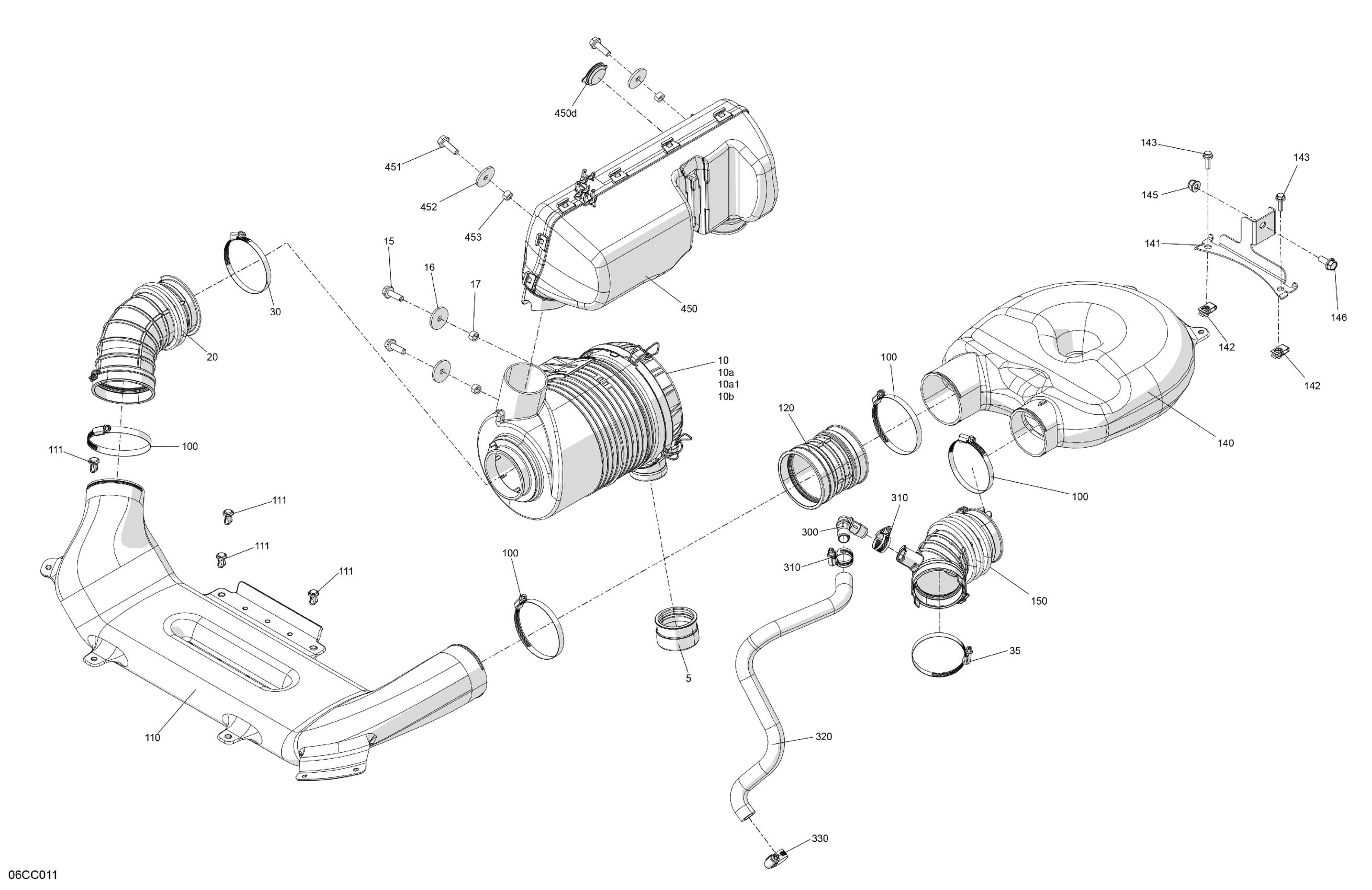

Can-Am Traxter PRO HD10 - DPS - CE, 2023 Engine - Air Intake Diagram

#

Description
Price

5

Duct Bill Valve

715003114

$13.49

10

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$184.99

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$93.99

10a1

O-Ring

715900514

$19.49

10b

Air Filter

715900394

$52.99

15

Hex. Flange Screw M8 X 25

207682544

$1.49

16

Flat Washer M8

250200158

$2.19

17

Bushing

277000980

$15.99

20

Front Intake Duct

707800879

$28.99

30

Norma Clamp

293650096

$3.29

35

Norma Clamp

293650091

$10.99

100

Norma Clamp

293650096

$3.29

110

Central Intake Duct

707800836

$83.99

111

Tuflok Plastic Rivet

293150230

$1.49

120

Rear Intake Duct

707800880

$21.99

140

Air Inlet Box

707800877

$52.99

141

Support

707800940

$45.99

142

Panel Nut M6 X 1.0

250100198

$2.19

143

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.19

145

Hex. Flange Elastic Nut M8

233281414

$1.49

146

Hex. Flange Screw M8 X 20

207682044

$1.49

150

Rear Main Intake Duct

707800837

$28.99

300

Elbow Fitting 90

293710155

$9.39

310

Tridon Gear Clamp

293650173

$3.19

320

Crankcase Hose Formed

707800890

$37.99

330

Tridon Gear Clamp

293650173

$3.19

450

Resonator | Includes 450 to 450d

707800849

$104.99

450d

Plug

293000125

$1.49

451

Hex. Flange Screw M8 X 25

207682544

$1.49

452

Flat Washer M8

250200158

$2.19

453

Bushing

277000980

$15.99
