Description

Price

10500

Rear Fender Support

705013304

$114.99

10505

Grommet Ass'y

705005055

$13.49

10506

Rivet 3/16"

293150102

$0.69

10507

Insert M5 - 0.8

293450267

$4.09

10508

Insert Half Hex Body M6 x 1.0

250100199

$2.91

10510

LH Fender Trim Support

705013305

$18.49

10515

Torx Truss Screw M5 X 16, T25

250000578

$2.00

10520

Rear Lower Fender

705013143

$204.99

10521

Torx Truss M6X14

250000789

$5.06

10522

Panel Nut M6 X 1.0

250100208

$1.22

10523

Hex. Flange Nut M6

233061414

$1.54

10525

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

10526

Screw 8-32

250001097

$2.89

10530

Mud Guard

705013229

$39.99

10550

Rear Fender Trim

706003151

$14.99

10551

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.00

10600

Rear Mud Guard

705016134

$56.99

11000

License Plate Support Ass'y

706005433

$37.99

11010

Screw M4 X 16

250000725

$3.30

12020

BRP Logo Emblem 48 MM UV

704909040

$14.78

100

LH Front Fender | Includes 100 to 100a

705016207

$204.99

100a

LH Front Fender

705010755

$204.99

110

LH Front Mud Guard

705016133

$31.99

120

Push Nut

250100181

$2.09

200

LH Front Position Light

710007008

$119.99

300

Torx Truss PT K40 x 12

250001131

$2.00

400

Yellow, LH Reflector

705012404

$18.49

500

Rear Reflector, Front Fender

705012406

$4.59

600

LH Fender Support

705011696

$114.99

610

Plastite Screw M4 X 10

250000805

$2.00

620

Torx Screw K50 X 16

250000720

$1.60

700

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

810

Clip Bracket Connector (edge)

409210100

$1.94

1100

RH Front Fender

705016208

$139.99

1110

RH Front Mud Guard

705016132

$31.99

1120

Push Nut

250100181

$2.09

1200

RH Front Position Light

710007009

$119.99

1300

Torx Truss PT K40 x 12

250001131

$2.00

1400

Yellow, RH Reflector

705012405

$18.49

1500

Rear Reflector, Front Fender

705012406

$4.59

1600

RH Front Fender Support

705017327

$114.99

1610

Plastite Screw M4 X 10

250000805

$2.00

1620

Torx Screw K50 X 16

250000720

$1.60

1700

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

1810

Clip Bracket Connector (edge)

409210100

$1.94

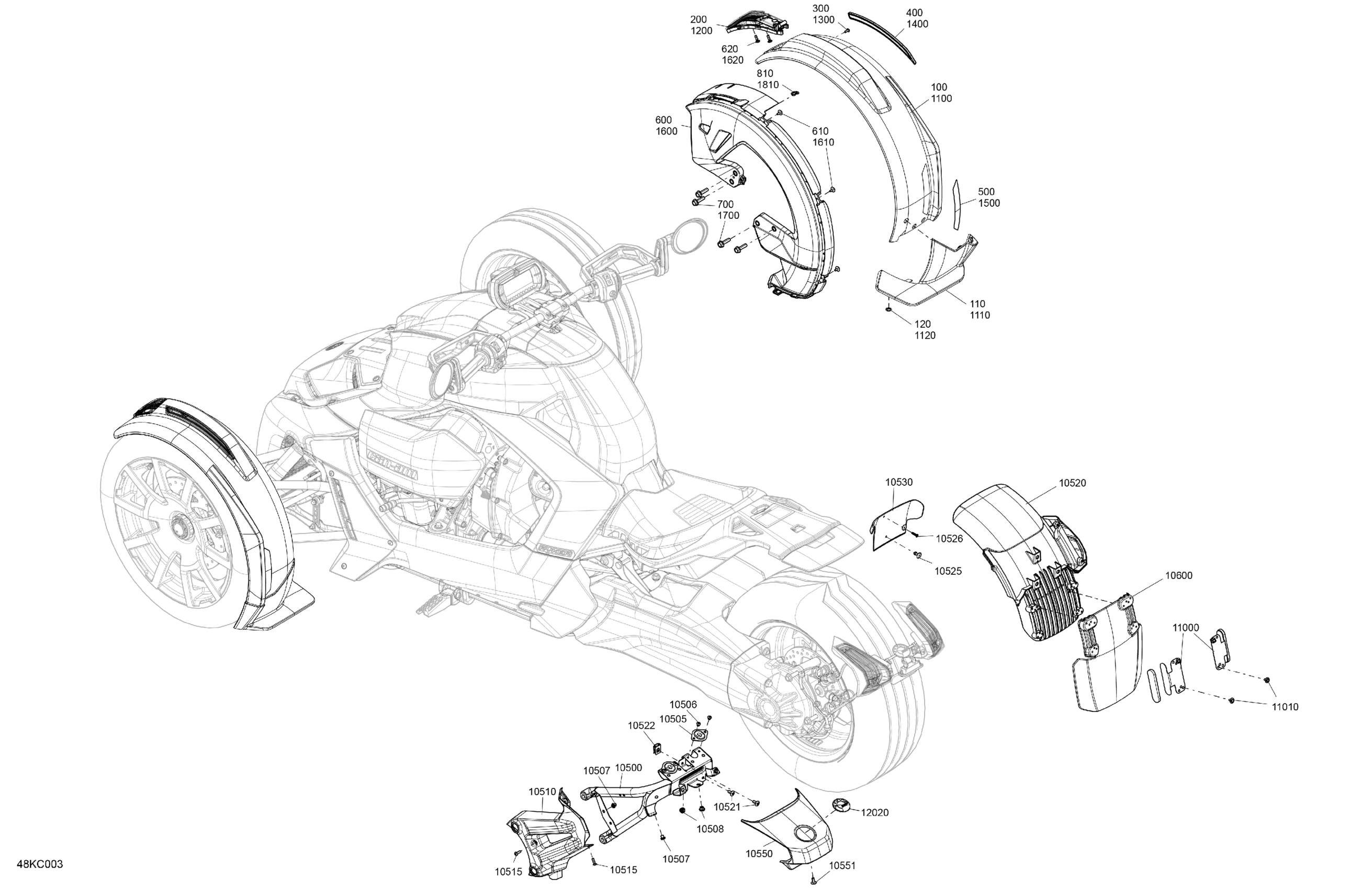

Can-Am RYKER RALLY 900 ACE, North America (F3PA), 2023 Body - Fender Kit Diagram

Rear Fender Support

Grommet Ass'y

Rivet 3/16"

Insert M5 - 0.8

Insert Half Hex Body M6 x 1.0

LH Fender Trim Support

Torx Truss Screw M5 X 16, T25

Rear Lower Fender

Torx Truss M6X14

Panel Nut M6 X 1.0

Hex. Flange Nut M6

Pop Rivet 3/16" | DS 650 X

Screw 8-32

Mud Guard

Rear Fender Trim

Black, Socket Screw, M6 X 16 S.Grip

Rear Mud Guard

License Plate Support Ass'y

Screw M4 X 16

BRP Logo Emblem 48 MM UV

LH Front Fender | Includes 100 to 100a

LH Front Fender

LH Front Mud Guard

Push Nut

LH Front Position Light

Torx Truss PT K40 x 12

Yellow, LH Reflector

Rear Reflector, Front Fender

LH Fender Support

Plastite Screw M4 X 10

Torx Screw K50 X 16

Hex. Flange Screw M8 X 30, Scotch Grip

Clip Bracket Connector (edge)

RH Front Fender

RH Front Mud Guard

Push Nut

RH Front Position Light

Torx Truss PT K40 x 12

Yellow, RH Reflector

Rear Reflector, Front Fender

RH Front Fender Support

Plastite Screw M4 X 10

Torx Screw K50 X 16

Hex. Flange Screw M8 X 30, Scotch Grip

Clip Bracket Connector (edge)
