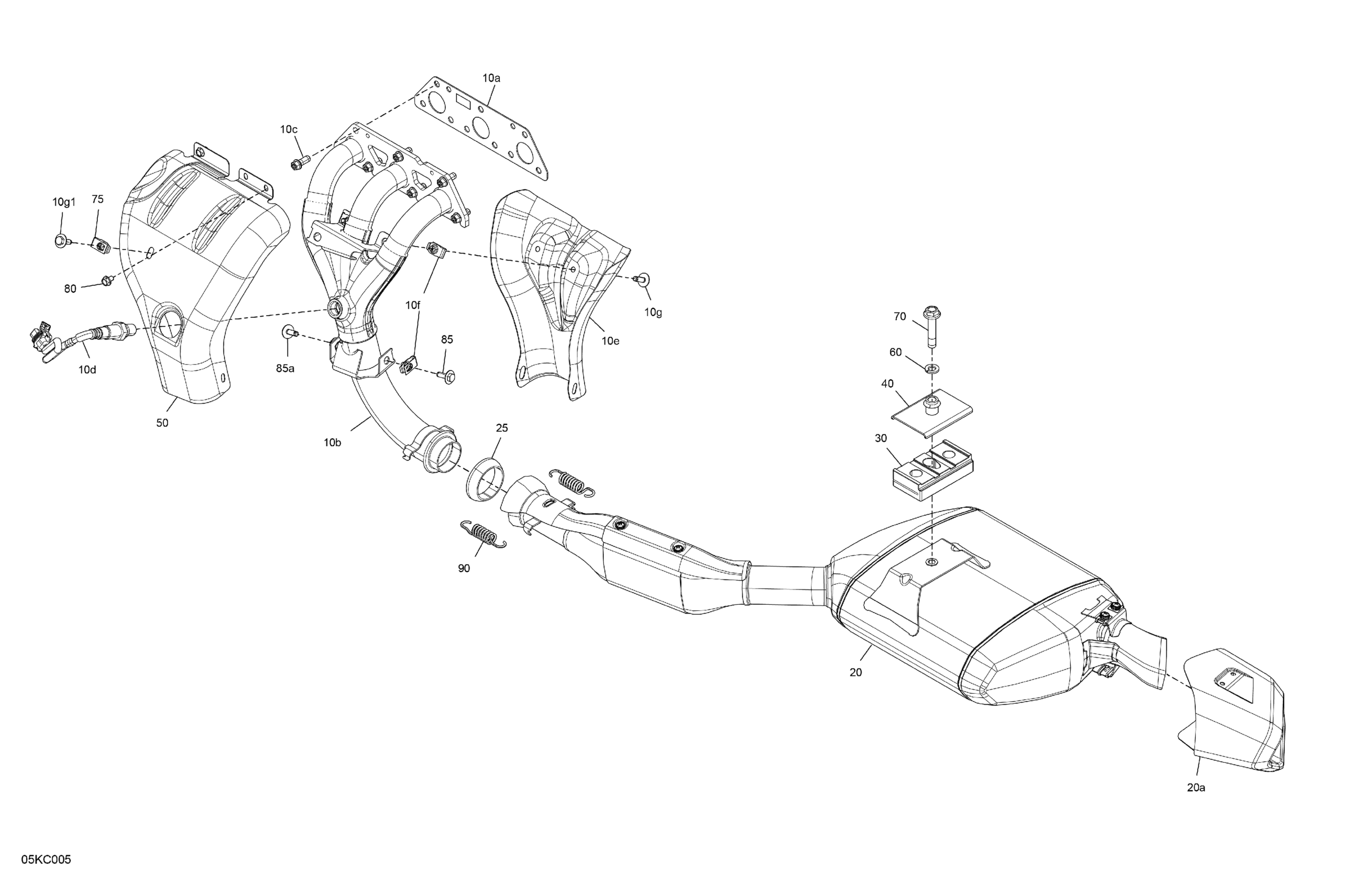

Can-Am RYKER RALLY 900 ACE, North America (F3PA), 2023 Engine - Exhaust Diagram

#

Description
Price

10a

Exhaust Manifold Gasket

707602002

$18.00

10b

Exhaust Manifold

707602001

$155.00

10c

Hex. Flange Screw M8 X 20

250001089

$1.00

10d

Oxygen Sensor

707600872

Unavailable

10e

Deflector

707602267

$52.00

10f

Panel Nut M6 X 1.0

250100198

Unavailable

10g

Hex Screw M6 X 20

250000965

Unavailable

10g1

Hex Screw M6 X 20

250000965

Unavailable

20

Exhaust Muffle Ass'y | Included 200b to 200b2

707603267

$1,786.00

20a

Exhaust Muffler Pipe

707603273

$657.00

25

Exhaust Gasket

707601033

Unavailable

30

Vibration Damper

707603448

$15.00

40

Plate Fastener

707602413

$18.00

50

Deflector

707602312

$39.00

60

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

70

Hex. Flange Screw M10 X 50

250001079

$2.00

75

Panel Nut M6 X 1.0

250100198

Unavailable

80

Hex. Forming Screw M6 X 10

210261050

Unavailable

85

Hex Screw M6 X 20

250000965

Unavailable

85a

Hex Screw M6 X 20

250000965

Unavailable

90

Spring

514055198

Unavailable
