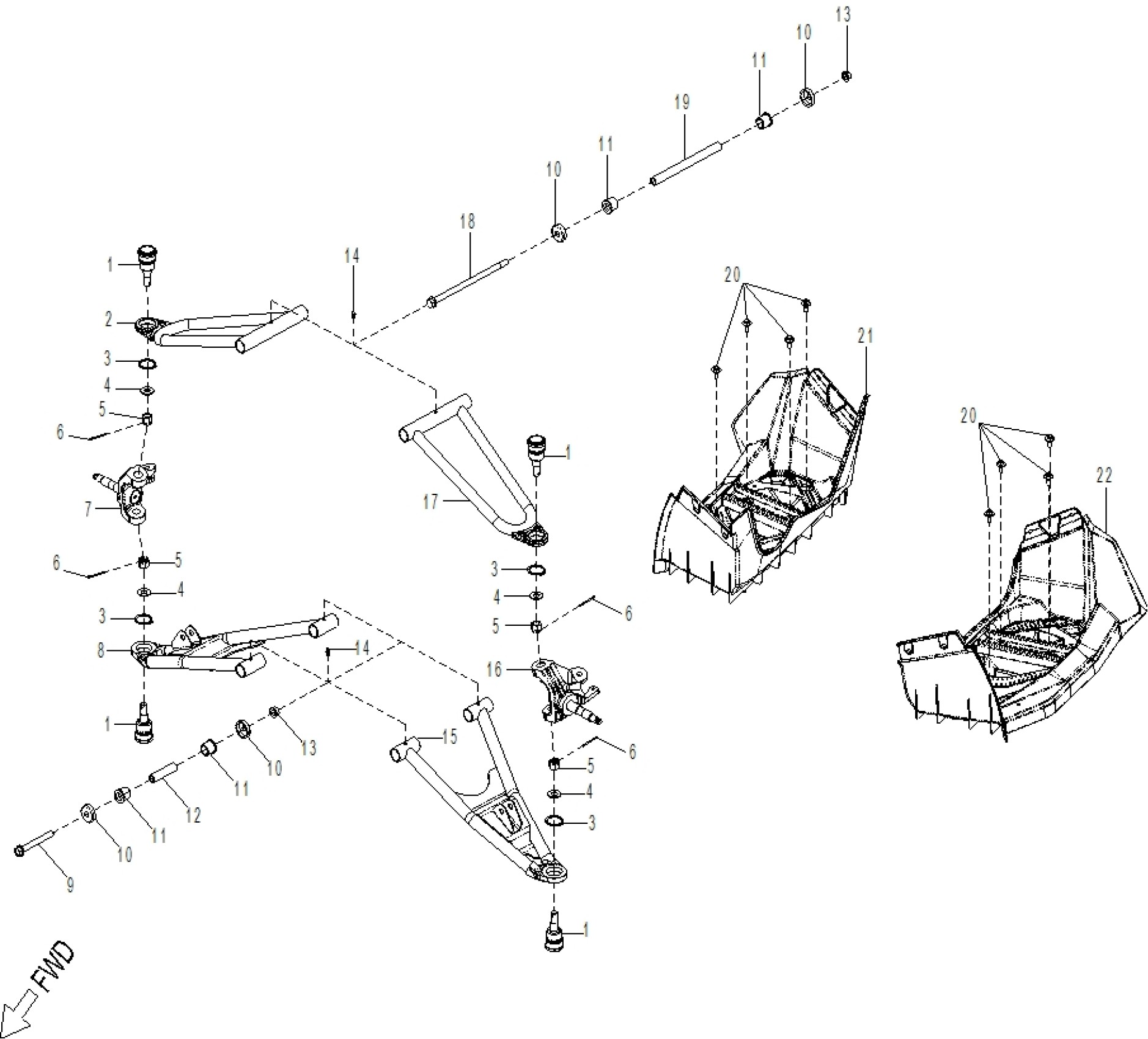

Can-Am Renegade X XC 110 EFI - Deep Black, 2026 Suspension - Swing Arm-Footrest XXC Diagram

Ball Joint

A5245120400A

$52.99

Legion Red, RH A-Arm

A53032T93487

$164.49

CirClip

A945113113S

$2.85

Flat Washer

A9410112250200C3

$7.73

Hexagonal Castelated Nut

A90351120000C3

$3.06

Cotter Pin (3/32 X 1)

A94201232503

$0.71

RH Knuckle

A51330T93000

$497.49

Legion Red, RH Lower A-Arm

A53031T93487

$195.99

Hex. Flange Screw M10 X 85

A96000100858KL3

$10.43

Swing Arm Seal Cover (Front)

A52426156000

$12.99

Spacer, A-Arm

A53135203000

$23.49

Spacer, A-Arm

A53140204000

$19.99

Hexagonal Head Nut

A94050100000C3

$3.80

Grease Fitting

A5130020100A

$2.59

Legion Red, LH Lower A-Arm

A53131T93487

$195.99

LH Knuckle

A51325T93000

$497.49

Legion Red, LH Upper A-Arm

A53132T93487

$164.49

Hex. Flange Screw

A96000102008KL3

$14.30

Grommet, A-Arm

A53140T93000

$23.49

Hexagonal Head Bolt M6 X 16

A921000601680K3

$3.17

Black, RH Footrest

A64300T91070

$254.99

Black, LH Footrest

A64310T91070

$254.99
