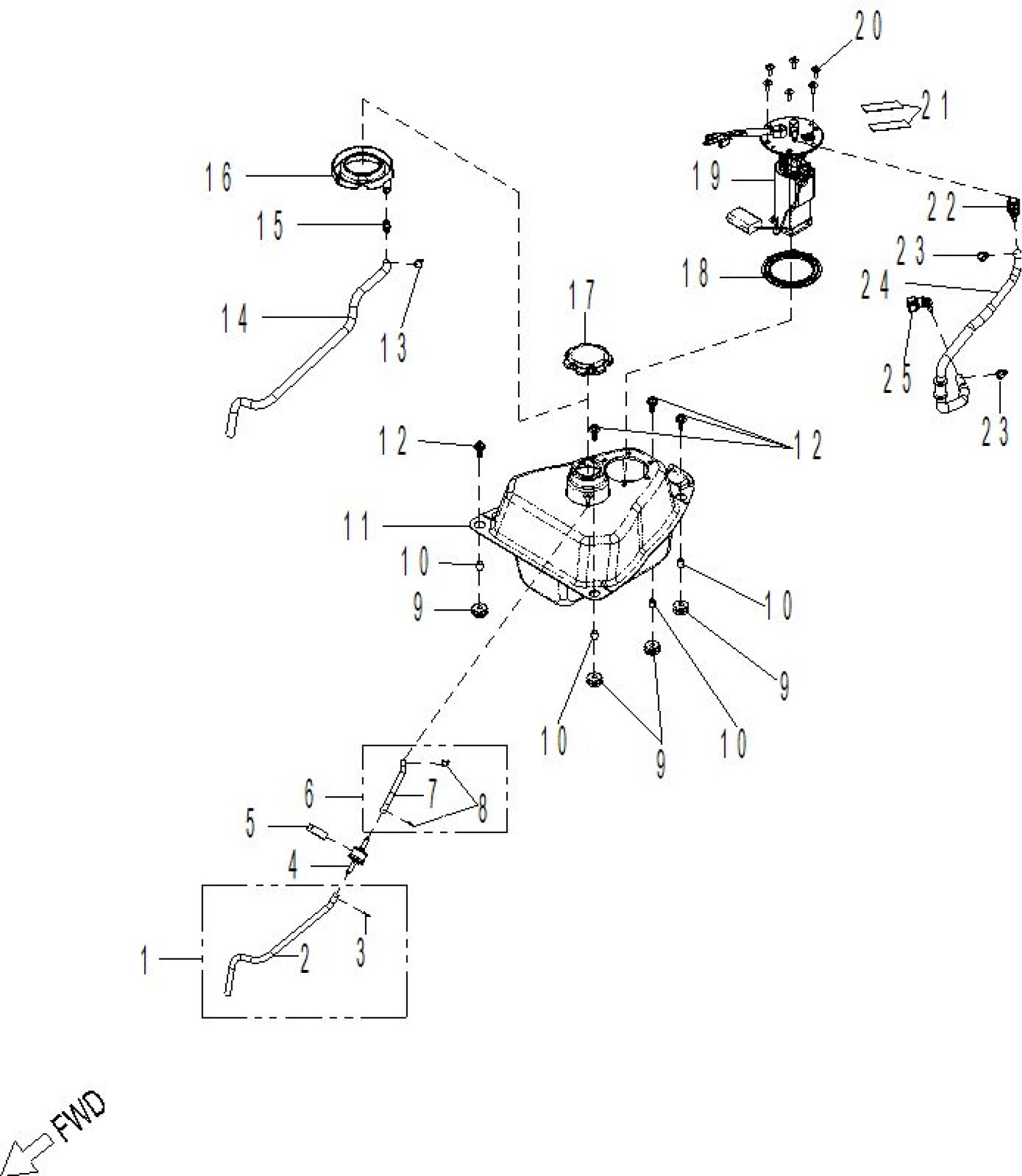

Can-Am Renegade 70 EFI CARB - Iceberg Blue, 2026 Engine - Fuel Tank Diagram

#

Description
Price

1

Ventilation Set | Includes 1 to 3

A11210209000

$19.49

2

Vent Tube

A11211215000

$19.49

3

Tube Clip

A94510080003

$5.40

4

Two-Way Valve

A35163201000

$55.99

5

Two-Way Valve Fixing RING

A35169S36000

$9.19

6

Ventilation Set | Includes 6 to 8

A11210T91000

$19.49

7

Vent Tube

A11211214000

$19.49

8

Tube Clip

A94510080003

$5.40

9

Rubber Pad

A17502204000

$1.89

10

Bushing

A5131106N00A

$5.79

11

Fuel Tank Ass'y

A17500T91000

$249.99

12

Hexagonal Head Screw Bolt W / Washer M6

A960070602280K3

$1.37

13

CirClip

A94508120123

$13.24

14

Vent Tube

A11211217000

$19.49

15

Nozzle

A1723962U000

$5.79

16

Gas Overflow

A17517T91000

$13.75

17

Fuel Cap Ass'y

A17620T91000

$37.99

18

Rubber Gasket

A17502T91000

$17.39

19

Fuel Pump

A17520T91001

$361.99

20

Shoulder Bolt

A89220234000

$6.35

21

Wire Tape

A89720156000

$3.69

22

Quick Joint B

A1752536T000

$33.99

23

Strap

A9452112006

$19.99

24

High Pressure Fuel Hose

A17523T91000

$83.49

25

Quick Joint A

A1752436T000

$33.99
