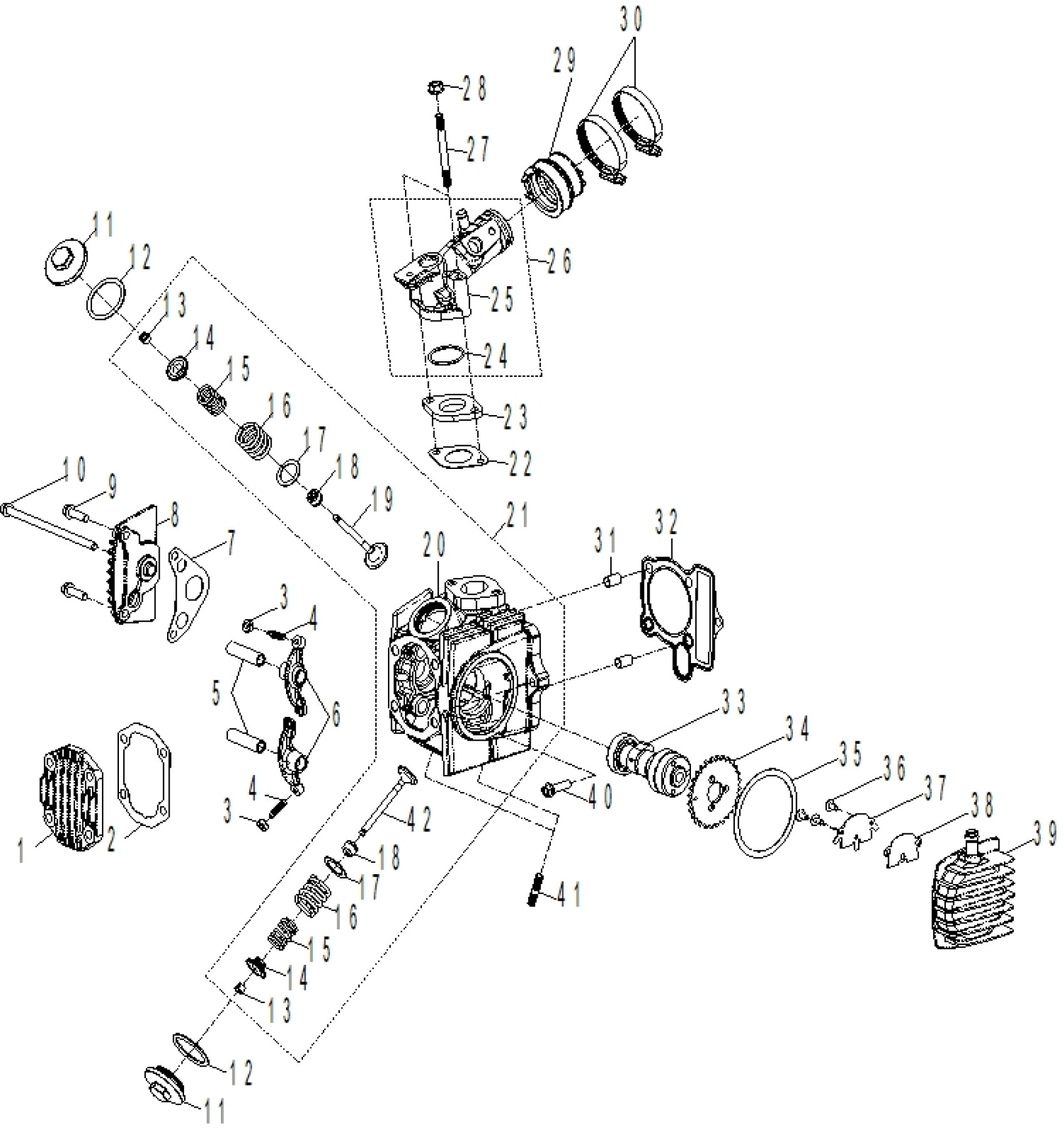

Can-Am Renegade 70 EFI CARB - Iceberg Blue, 2026 Engine - Cylinder Head Diagram

#

Description
Price

1

Cover Cylinder

A1230918S000

$56.49

2

Cover Gasket

A12391121001

$6.35

3

Adjusting Nut

A902060500000A

$4.44

4

Adjusting Screw 90012-05185

A9001206015

$15.35

5

Rocker Arm Shaft

A1445218S000

$19.49

6

Rocker Arm

A1443118S000

$55.99

7

Cylinder Right Cap Gasket

A12394010001

$6.35

8

Cylinder Right Cap

A1233122A000

$56.49

9

Hexagonal Head Bolt M6 X 20

A960000602088C3

$1.79

10

Hexagonal Flange Bolt M6 X 110

A960000611088C3

$6.95

11

Cap

A1236118S000

$28.99

12

Gasket (ACM)

A9321203132

$13.23

21

Cylinder Head Ass'y

A1222022C000

$745.49

13

Valve Lock

A14781119000

$9.44

14

Retainer Valve Spring

A1477118S000

$16.93

15

Spring Valve Inner

A1476118S000

$11.64

16

Spring Valve Outer

A1475118S000

$12.16

17

Spring Ring

A1477518S000

$9.44

18

Valve Seal

A1220918S000

$17.04

19

Intake Valve

A1471118S000

$38.99

20

Cylinder Head

A1220122A000

$223.49

42

Exhaust Valve

A1472118S000

$46.49

22

Heat Insulation

A17113119003

$4.97

23

Cylinder Head Insulation

A17112119000

$11.11

26

Intake Manifold Ass'y

A1710022C000

$204.99

24

O-RIng

A9321002720

$4.97

25

Intake Manifold

A1710122C000

$204.99

27

Double Head Stud M6X63

A9100106063B0C3

$7.73

28

Hexagonal Head Nut

A94050060000C3

$3.80

29

Intake Manifold Socket

A1614622C000

$10.49

30

Strap

A9452002551A

$12.18

31

Dowel Pin

A9430108140

$7.73

32

Cylinder Gasket

A1225122A00A

$25.99

33

CamShaft

A1440022A000

$142.99

34

Cam Sprocket (28T)

A1410518S000

$32.99

35

Cylinder Left Cap Ring

A12395010001

$56.49

36

Self Tapping Screw M4 X 8

A9390310400880K3

$5.50

37

Spacer

A1230218S000

$7.73

38

Spacer Pad

A12303010001

$7.73

39

Cylinder Left Cap

A1234022C000

$56.49

40

Hex. Flange Screw M6 X 22

A960000602288C3

$1.79

41

Stud M6 X 32

A9100106032B00Z

$2.61
