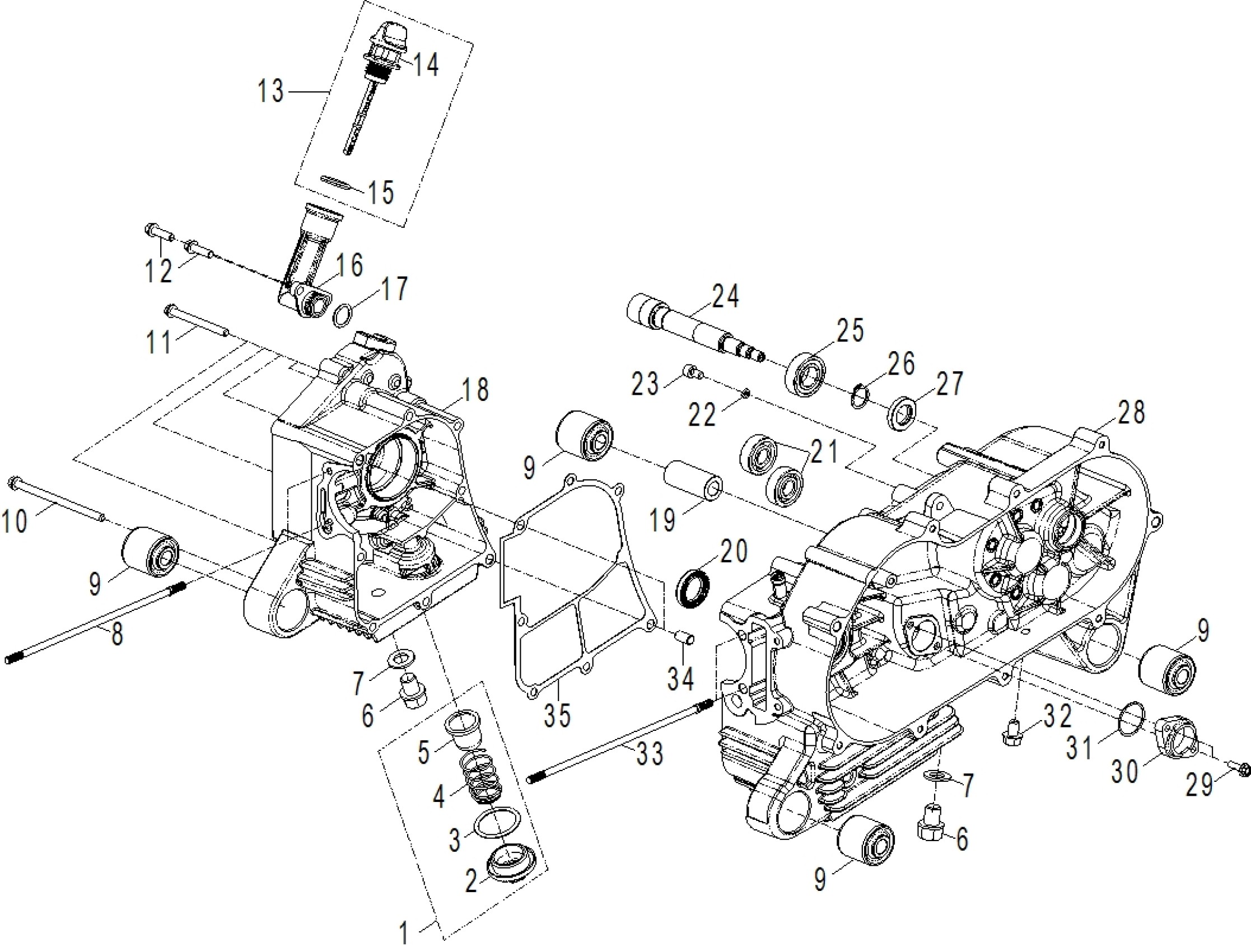

Can-Am Renegade 70 EFI CARB - Iceberg Blue, 2026 Engine - Crankcase Diagram

#

Description
Price

1

Oil Sieve Cap Set | Includes 1 to 5

A15420119000

$26.09

2

Oil Sieve Cap

A11334119000

$13.10

3

Gasket (ACM)

A9321203132

$12.21

4

Oil Sieve Spring

A15426119000

$1.07

5

Oil Sieve

A15421119000

$11.01

6

Hex. Flange Bolt M12 X 15

A960001201584C3

$1.84

7

Aluminum Washer

A94101122132000L

$1.54

8

Stud Bolt

A910010619980C3

$5.90

9

Rubber Bushing

A96400123530B

$60.42

10

Hexagonal Head Bolt M6 X 95

A960000609588C3

$6.19

11

Hexagonal Head Bolt

A960000606088C3

$3.29

12

Hexagonal Head Bolt M6 X 20

A960000602088C3

$1.69

13

Dipstick Set | Includes 13 to 15

A15650203000

$51.46

14

Dipstick Set | Includes 13 to 15

A15650203000

$51.46

15

O-RIng

A9321201835

$11.81

16

Oil Filling Port

A11204201000

$39.52

17

O-RIng

A9321201524

$2.19

18

LH Crankcase

A1110122C000

$285.04

19

Engine Spacer

A1115022C002

$18.63

20

Oil Seal

A96504223206FKM

$41.76

21

Ball Bearing

A961006201000000

$16.39

22

Washer

A941080618020000

$2.96

23

Hexagonal Socket Bolt

A910000601080C3

$1.49

24

Drive Shaft

A2341122C000

$191.01

25

Ball Bearing

A9610060030000C3A

$26.09

26

External CirClip

A945111700S

$1.60

27

Oil Seal (w/Grease)

A96504172805ACM

$14.79

28

LH Crankcase

A1120122C000

$760.42

29

Hexagonal Head Bolt M5 X 16

A960000501688C3

$3.33

30

Gear Position Signal

A35759202000

$26.09

31

O-RIng

A9321202615

$2.19

32

Hexagonal Head Bolt M8 X 12

A960000801282K3

$3.33

33

Double Head Stud

A910010620580C3

$7.21

34

Dowel Pin

A9430108140

$7.21

35

Crankcase Gasket

A1119122A001

$12.21
