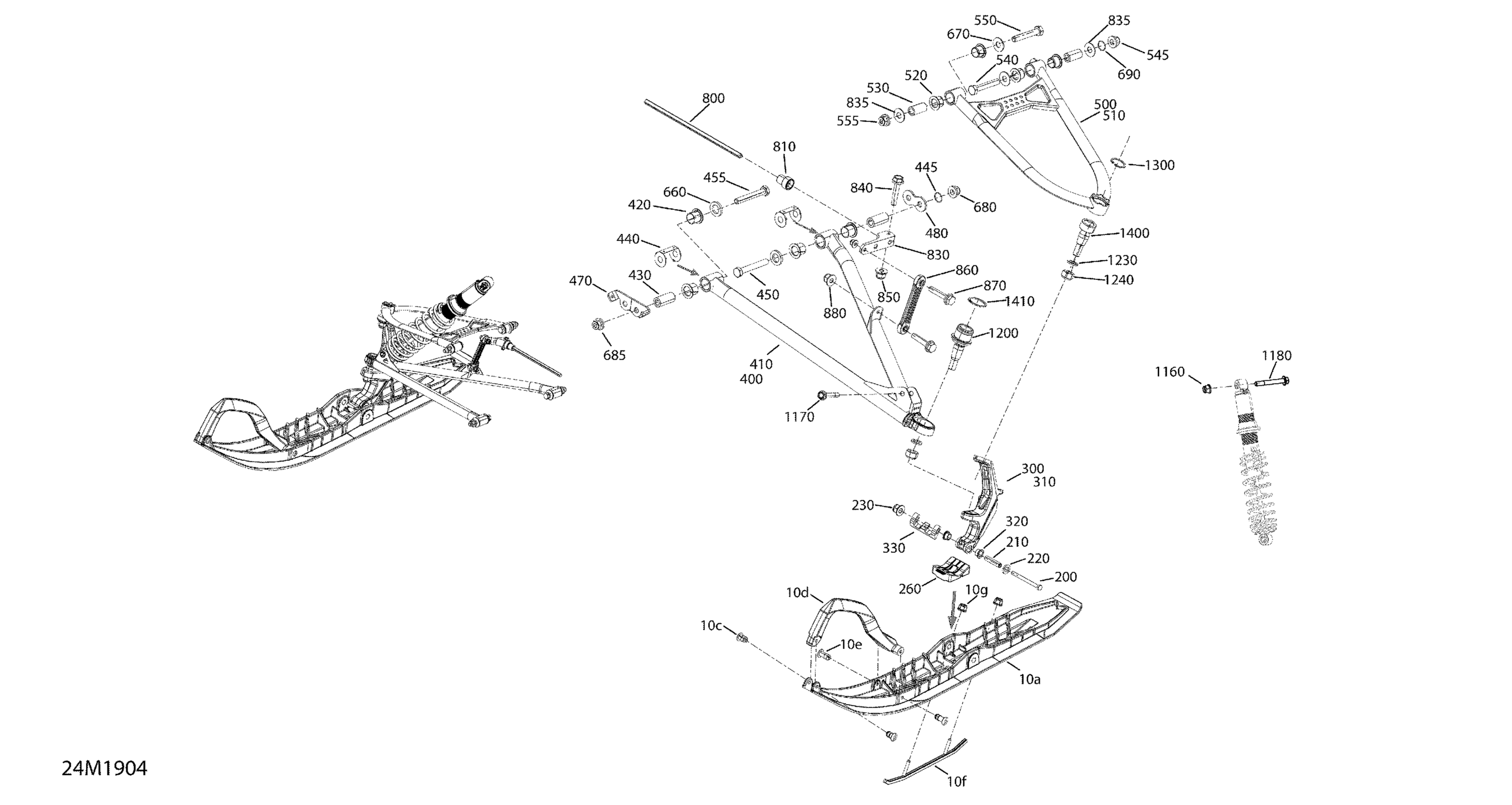

Ski-Doo RENEGADE 900 ACE, 2019 Front Suspension And Ski - Adrenaline Diagram

#

Description
Price

10a

Deep Black, RH Pilot 5.7 Ski

505072855

$160.74

10a

Black, Ski

505073227

$175.35

10a

Deep Black, LH Pilot 5.7 Ski

505072854

$175.35

10c

Retainer 17mm long

505071812

$4.43

10d

Black, Handle

505070963

$35.35

10d

Black, Handle

505072976

$35.35

10e

Retainer 23mm Long

505072133

$5.03

10f

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

10g

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Ski Axle

505073691

$12.58

220

Washer

503192496

$0.75

230

Hex. Flange Elastic Nut M10

233201414

$1.26

260

Ski Stopper

505072594

$17.66

300

Deep Black, LH Ski Leg

505074515

$253.05

310

Deep Black, RH Ski Leg

505074516

$218.43

320

Leg Bushing

505072690

Unavailable

330

Leg Stopper

505073779

$12.65

400

RH Lower Arm

505074495

$193.82

410

LH Lower Arm

505074494

$193.82

420

Bushing

505072208

$3.14

430

Sleeve

505072209

$14.38

440

Wear Plate

505072634

$4.45

445

O-Ring

505072448

Unavailable

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

470

Wear Plate

505073723

$5.85

480

Plate

505073844

$2.75

500

LH Upper Arm 42"

505073724

$143.05

510

RH Upper Arm 42"

505073728

$143.05

520

Bushing

505072250

$3.14

530

Sleeve

505072143

$8.62

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 60

250001023

$1.74

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.72

670

Washer

505072392

$4.65

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

Unavailable

800

Stabiliser

505074719

$67.99

810

Bushing

505072064

$2.22

830

Stabilisator Lever

505073731

$15.35

835

Washer

505072392

$4.65

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Sway Bar Double Joint Link

505072204

$19.20

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

1160

Hex. Elastic Flange Nut M8

233281416

$1.25

1170

Hex. Flange Screw M8 X 58

250000824

$1.74

1180

Hex. Flange Screw M8 X 58

250000824

$1.74

1200

Ball Joint

505074009

$52.28

1230

Washer

503192491

$4.38

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$7.02

1400

Upper Ball Joint

505072913

$69.97

1410

Snap Ring

293370098

$3.11

3000

Flat Washer

224061201

$1.11

3010

Black, Wheel Cap

503192771

$2.28

3020

Washer

503192496

$0.75

3030

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

3040

Ski Stopper

505072594

$17.66

3050

Hex. Flange Elastic M10 x 1.5

233201464

$6.18
