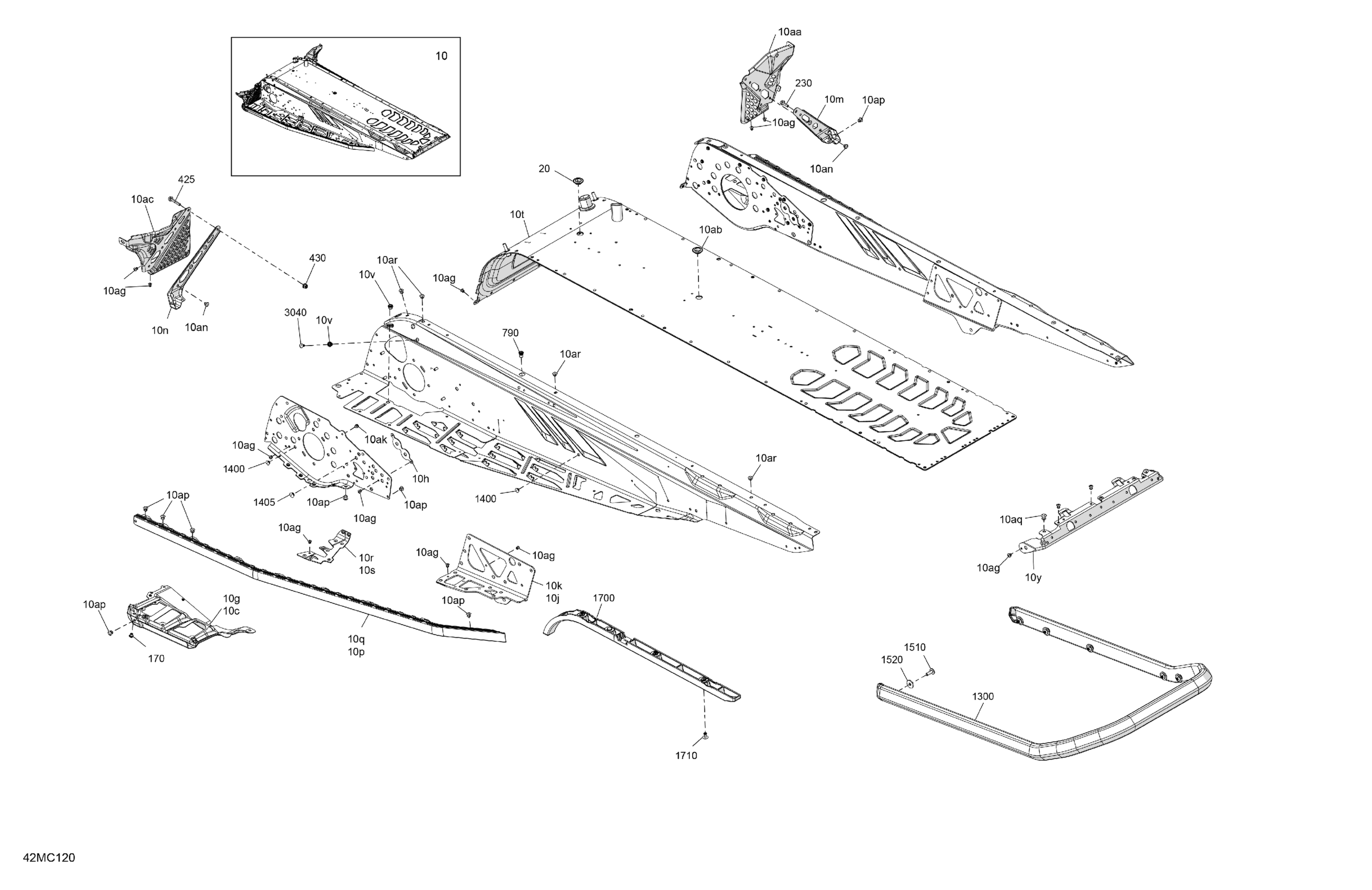

Ski-Doo RENEGADE 600 ACE - SPORT - 2023 Frame - System - Rear Section Diagram

Chassis Tunnel Module 137 | Includes 10 to 10b

415130705

$2,911.16

Deep Black, RH Footrest Reinforcement

518330738

$79.82

Deep Black, LH Footrest Reinforcement

518331523

$79.82

Front Suspension Arm Reinforcement

518327233

$15.64

RH Rear Suspension Support This part replaces 518330095.

518334405

$93.25

LH Rear Suspension Support This part replaces 518330094.

518334404

$93.25

Stirrup Reinforcement

518334507

$17.88

Deep Black, LH Chassis Reinforcement

518332924

$17.88

RH Roller

518328451

$175.34

LH Roller

518328452

$175.34

LH Footrest Reinforcement

518332296

$17.88

RH Footrest Reinforcement

518332297

$17.88

Radiator Tunnel 137 Ass'y

518334488

$682.06

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Rear Cap

518328990

$20.12

RH Footrest

518334509

$20.12

Black, Plug

293730052

$6.18

LH Foot Protector

518331559

$23.10

Rivet Avibulb 3/16

293150203

$0.28

Henrob Rivet

293150245

$1.60

Rivet Ornit 6,5 X 10.5

293150264

$1.88

Rivet Ornit 6,5 X 12.5

293150265

$1.88

Rivet Ornit 6,5 X 16.5

293150267

$1.88

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Black, Plug

293730052

$6.18

Insert M5 - 0.8

293450267

$4.09

Hex. Flange Screw M6 X 20

207562056

$2.00

Hex. Flange Screw M6 X 20

207562056

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Insert

293450278

$3.97

Rear Bumper | Includes 1300 to 1300c

518330033

$105.94

Full Moon Dart 8 mm

293730041

$2.06

Full Moon Dart 10 mm

293730059

$4.28

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Flat Washer

224061201

$1.27

Front Protector

518329982

$17.13

Pop Rivet 3/16”

293150108

$1.19

Dart

293730079

$1.87
