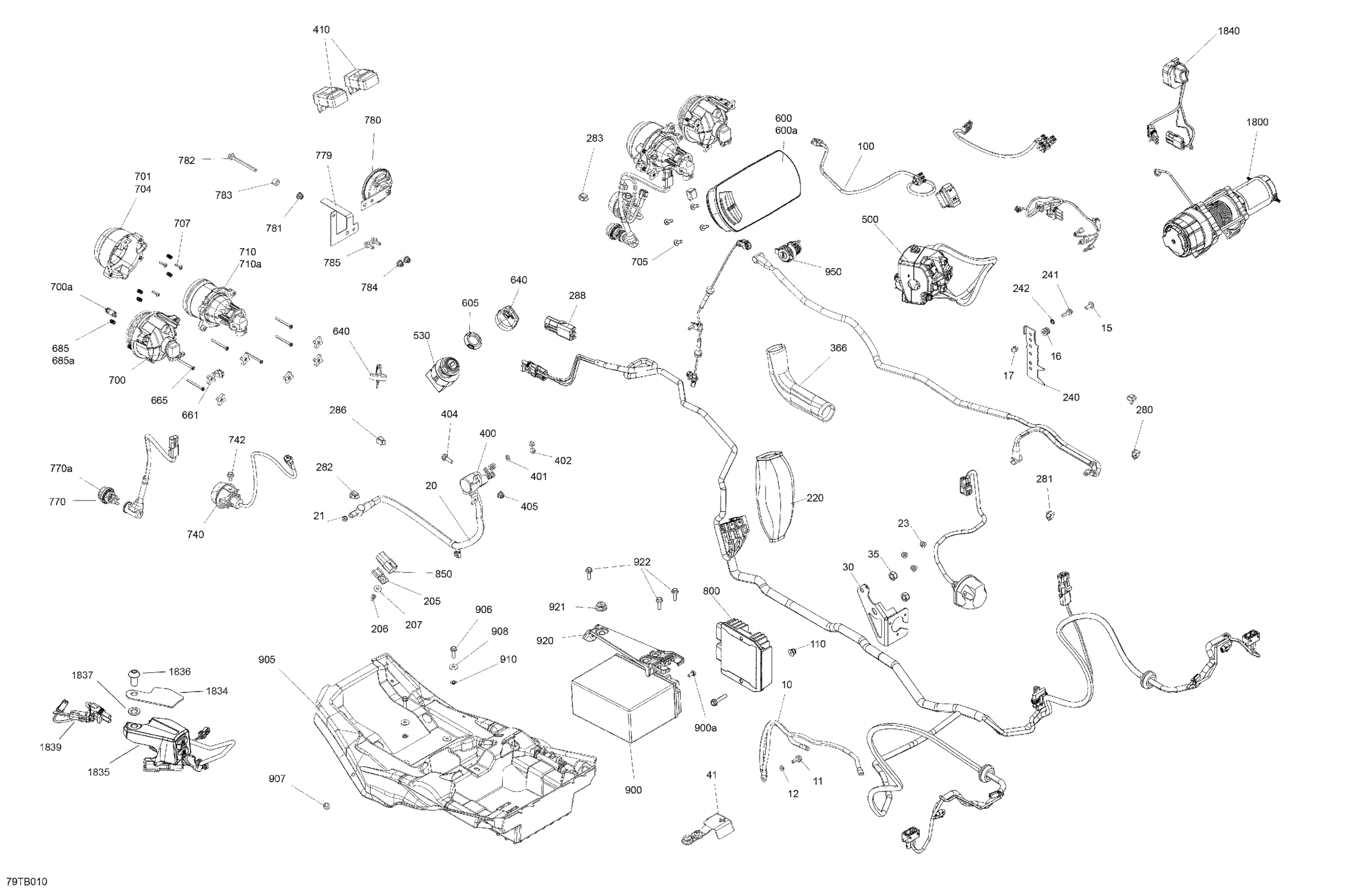

Can-Am Outlander T MAX 6X6 - 650 EFI - XT - T Regulation, 2022 Electric - System Diagram

#

Description
Price

10

Ground Cable

710004382

$17.88

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

12

Lock Washer Helical M6

234161601

$1.06

15

Torx Head Screw M6 X 16

250000717

$2.00

16

Flat Washer

224061121

$0.51

17

Domed Nut M6

232361493

$2.03

20

Positive Cable

710004377

$24.60

21

Elastic Stop Nut M6

232561434

$1.78

23

Flange Elastic Nut M5

233251434

$1.91

30

Plug Fastening Plate

705204572

Unavailable

35

Elastic Stop Nut M10

232500416

$1.79

41

Battery Cable Cap

710006729

$6.72

100

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

205

Clip

270000141

$9.57

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

220

Sheath | Not Shown

710004193

$18.63

240

Connector Bracket

710004118

$5.04

241

Hex. Flange Screw M6 X 20

210262040

$2.00

242

External Serrated Lock Washer 6 mm

234461608

$1.06

280

Clip

414227300

$1.40

281

Clip

414227300

$1.40

282

Clip

414227300

$1.40

283

Clip

414227300

$1.40

286

Clip

414227300

$1.40

287

Clip

414227300

$1.40

288

Connector Ass'y

710001642

$8.42

366

Soft Protection Sleeve

710007255

$2.51

400

Starter Relay

710007777

$45.49

401

Lock Washer Helical M6

234161601

$1.06

402

Elastic Stop Nut M6

232561434

$1.78

403

Torx Screw M6 X 16 | Not shown

235661644

$5.04

404

Hex. Flange Screw M6 X 20

207662054

$0.96

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

410

Flasher Unit

710003239

$73.10

500

LH Front Multifunction Switch

710007609

$228.33

530

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

600

Multifunction Gauge Compact Mono

710008108

$364.90

600a

Multifunction Compact Gauge

710007407

$335.04

605

Safety Nut (DESS Switch)

278002963

$3.12

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

661

Handle

572106600

$9.03

665

Hex. Screw K40 X 45

250000718

$2.00

685

Spring

517168600

$6.70

685a

Spring

517168600

$6.70

700

Low Beam | Includes 54 to 55

710006177

$108.18

700a

Bulb 12V 55W

715900141

$38.78

701

RH High Front Housing

710002291

$25.34

704

LH High Front Housing

710002292

$20.12

705

Torx Screw K50 X 16

250000720

$1.60

707

Phillips Screw K40 X 16

250000723

$0.93

710

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710a

Halogen Bulb

415129249

$38.78

740

Flasher | Europe

710002964

$34.30

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

770

Day Light | Europe

710001726

$32.81

770a

Cap Protector | Model-Europe

710003269

$10.12

779

Horn Support

710006113

$10.82

780

Horn

710004791

$36.54

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

782

Hex. Flange Screw M6 X 70

207667044

$0.81

783

Bushing

708001129

$9.91

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

785

Hex. Flange Screw M6 X 16

207661644

$0.70

800

Voltage Regulator

710005842

$183.55

802

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

803

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

850

Housing

710003006

$8.31

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

900a

Battery Bolt Kit

250000282

$3.39

905

Battery Support

710008370

$41.76

906

Hexagonal Head Screw

210262050

$2.00

907

Rubber Bumper

293830005

$6.12

908

Stainless Steel Flat Washer

234062670

$2.00

910

Push Nut

732610072

$1.97

920

Retaining Plate

710009129

$7.09

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.96

950

DC Outlet

710001248

$35.79

1800

Electric Winch | Includes 1800 to 1800a

710007362

Unavailable

1834

Top Plate

715004008

$19.37

1835

Multifonction Housing Ass'y

710004990

$138.78

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$8.67

1837

Washer

503192496

$0.73

1839

Cable

710004567

$12.60

1840

Winch Remote | Includes 1840 to 1840d

715002542

$159.74
