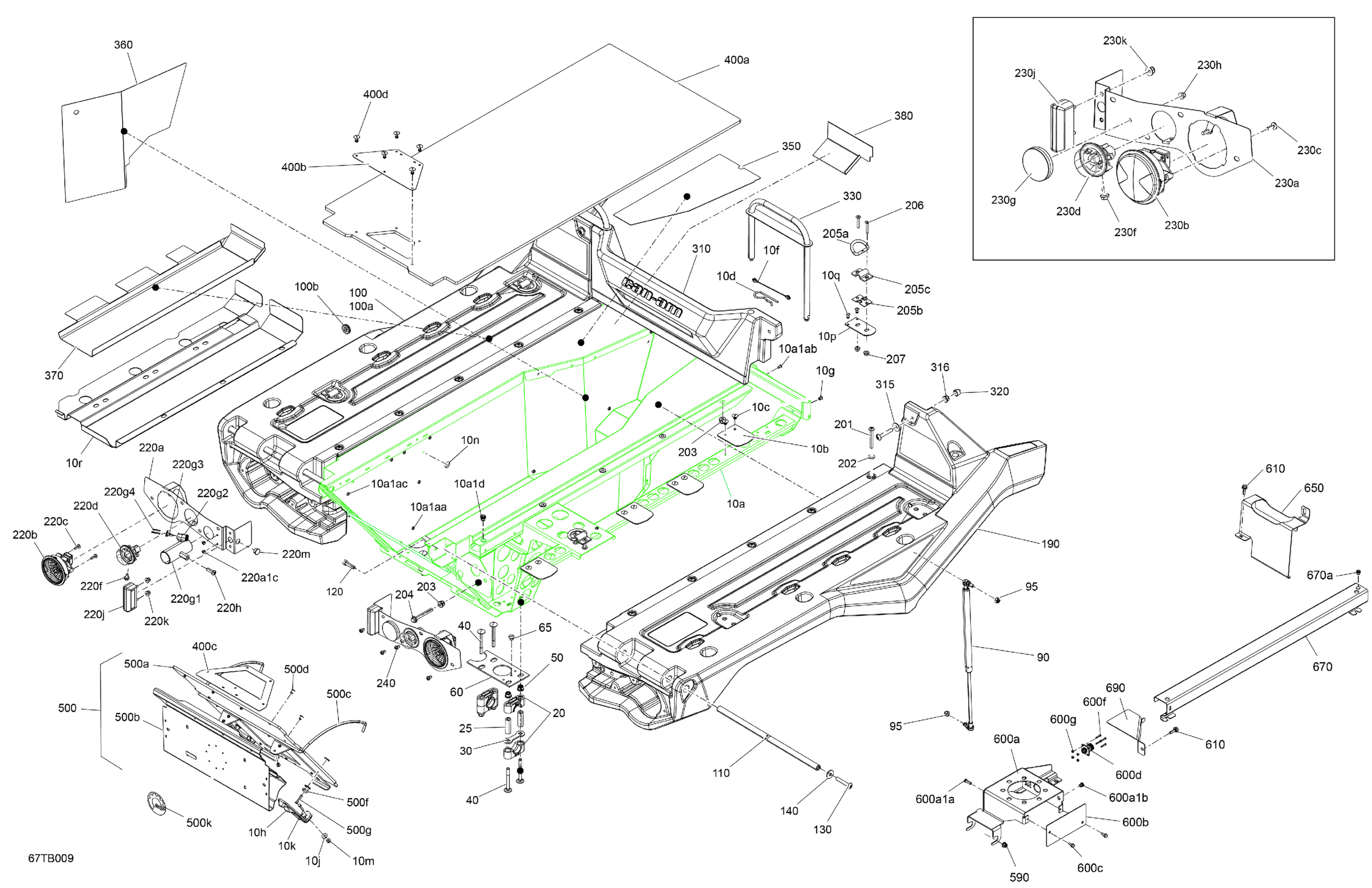

Can-Am Outlander T MAX 6X6 - 650 EFI - XT - T Regulation, 2022 Body - Cargo Platform Diagram

#

Description
Price

10a

Platform | Includes 10a to 10a1ac

708303452

Unavailable

10a1d

Clinch Nut Hexsert M8

605636002

$7.31

10a1aa

Avex Rivet

390909200

$0.29

10a1ab

Avex Rivet

390909100

$0.29

10a1ac

Avex Rivet

390909200

$0.29

10b

Linq Hole Filler

708301095

$8.42

10c

Pop Rivet 3/16"

293150103

$0.54

10d

Cotter Spring

505073670

$2.06

10f

Retainer Cable

293750069

$13.77

10g

Stavex Rivet

293150144

$0.77

10h

Hood Latch

5342952

$22.28

10j

Flat Washer

234052450

$2.06

10k

Hex.Flange Screw M5 X 20

207652044

$1.56

10m

Flange Elastic Nut M5

233251434

$1.66

10n

Black, Dart

414644300

$0.78

10p

Lashing Rings Support

705203824

$6.97

10q

Avex Rivet

390909100

$0.29

10r

Upper Heat Shield Wide

707601725

$39.97

20

Housing Half

506150400

$7.31

25

Housing Bushing

506150500

$7.49

30

Stopper Plate

506150600

$4.15

40

Carriage Bolt M8 X 70

207787044

$1.11

50

Hex. Flange Elastic Nut M8

233281414

$1.14

60

Cargo Box Hinges Reinforcement Plate

705203836

$15.35

65

Pop Rivet 3/16"

293150103

$0.54

90

Cargo Box Gas Shock

708301058

$109.20

95

Hex. Elastic Stop Nut M8

232581414

$0.47

100

LH Side Platform | Includes 100 to 100b

708302539

Unavailable

100a

Black, LH Side Platform | Model-Black

708303737

$636.89

100b

Grommet

517303756

$3.15

110

Hinge Axis

708300935

$96.89

120

Socket Head Screw M8 X 30

205083044

$0.92

130

Torx Truss Screw M8 X 50

250000761

$6.18

140

Stainless Steel Flat Washer

234082670

$1.74

190

Black, RH Side Platform | Model-Black

708303738

$526.12

201

Torx Truss M/S M8 X 40

205484056

$7.31

202

Washer

503192494

$3.11

203

Hex. Flange Elastic Nut M8

233281414

$1.14

204

Hex. Flange Screw, M8 X 65

207686544

$9.74

205a

D-Ring

708302990

$4.98

205b

Tie-Down Ring Spring

708302991

$2.75

205c

Tie-Down Ring Bracket

708302992

$2.75

206

Socket Screw M6 X 35

250001078

Unavailable

207

Hex. Flange Nut M6

233061414

$1.34

220a

Rear Bracket To IR | Includes 220a to 220a1c

708302263

Unavailable

220a1c

Avex Rivet

390909200

$0.29

220b

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

220c

Torx Screw K50 X 16

250000720

$1.39

220d

Flasher | Europe

710002964

$35.14

220f

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

220g1

Ir Lights Rear

710005353

Unavailable

220g2

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

220g3

Female Lock

409207200

$3.48

220g4

Female Terminal

278001665

$3.73

220h

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

220j

License Light

710002055

$59.99

220k

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

220m

Black, Plastic Plug

708302721

Unavailable

230a

RH Tail Light Plate | Model-T3

605356528

Unavailable

230b

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

230c

Torx Screw K50 X 16

250000720

$1.39

230d

Flasher | Europe

710002964

$35.14

230f

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

230g

Red, Reflector

705016982

$12.32

230h

Flange Elastic Nut M5

233251434

$1.66

230j

License Light

710002055

$59.99

230k

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

240

Torx Truss Screw M6 X 12

250000767

$1.66

310

Black, Front Panel Max

715006177

$299.97

315

Stainless Steel Flat Washer

234082670

$1.74

316

Hex. Flange Elastic Nut M8

233281414

$1.14

320

Cover | Model-T3

28056

$5.52

330

Locking Handle Weld

708300939

$74.58

350

Bed Heat Shield On Top

708301336

$11.83

360

Bed Heat Shield On Side

708301337

$13.97

370

Side Heat Shield

708301338

$13.97

380

Heat Shield

708302168

$13.97

400a

Middle Deck

708300959

$314.58

400b

Filler Plate

708301262

Unavailable

400c

Handle Plate

708301263

$16.89

400d

Pop Rivet 3/16”

293150108

$1.23

500

Lower Tailgate Ass'y | Includes 500 to 500k

708303328

Unavailable

500a

Lower Tailgate Inner

708303364

Unavailable

500b

Register Plate Support

708303416

$106.89

500c

Limiter Rail

708301213

$53.05

500d

Avex Rivet

390909100

$0.29

500f

Counter Roller

605449087

$4.00

500g

Rivet

293150212

$2.08

500k

BRP Logo 68 mm

219902672

$9.93

590

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

600a

Antenna Bracket | Includes 600a to 600a1b

708302944

Unavailable

600a1a

Clinch Stud M6 X 20

250300027

$1.92

600a1b

Clinch Nut M6 Hexsert

605636003

$4.12

600b

Cover To Antenna 6x6

708302273

Unavailable

600c

Hex Flange Screw M5 X 11

210251150

$1.74

600d

Power Outlet

515178856

Unavailable

600f

Socket Head Screw M3 X 16

205431660

$1.45

600g

Elastic Stop Nut M3

232531600

$2.06

610

Hex. Flange Screw M6 X 20

207662054

$0.83

650

Cable Shield Front

705206455

Unavailable

670

Cable Shield | Includes 670 to 670a

705206361

Unavailable

670a

Clinch Nut M6 Hexsert

605636003

$4.12

690

Cable Connector Shield

705206362

Unavailable
