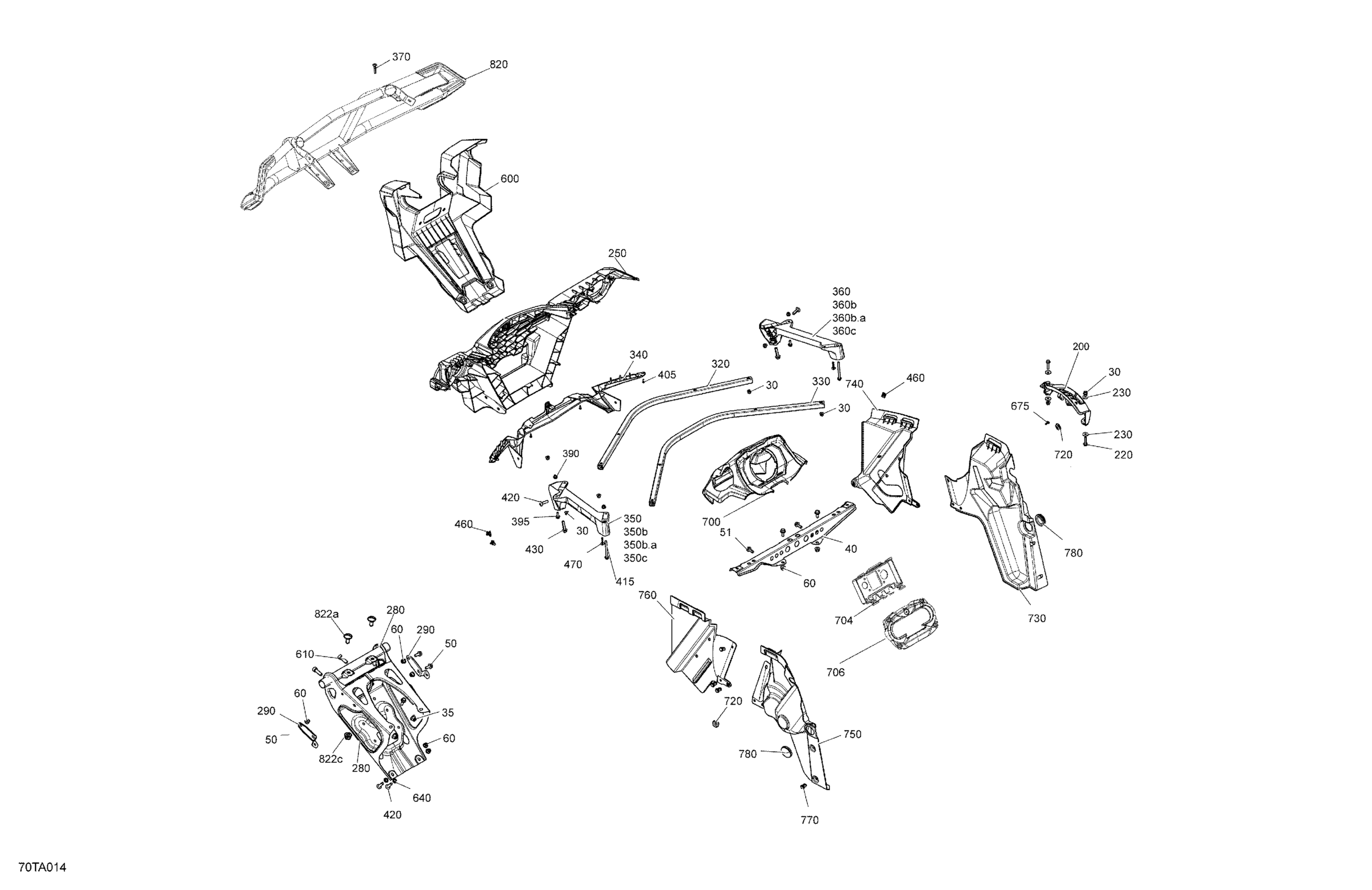

Can-Am Outlander MAX 650 EFI - DPS_XT - 2021 Body - Front Section Diagram

#

Description
Price

30

Flange Elastic Nut M6

233261434

$4.44

35

Hex. Flange Elastic Nut M8

233281434

$2.11

35

Hex. Flange Elastic Nut M10

233201434

$2.09

40

Cargo Rack Center Support

705006812

$61.99

50

Hex. Flange Screw M8 X 20

207682044

$1.15

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

60

Hex. Flange Elastic Nut M8

233281434

$2.11

200

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$26.99

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Fascia

705012822

$119.99

280

Front Bumper Support

705016893

$349.99

290

Lower Fender Support

705004565

$6.89

320

Sectional Bent Tube

705016640

$38.99

330

Bent Sectional Tube

705016092

$42.99

340

Lugage Rack Moulding

705004523

$24.49

350

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

350b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

350b.a

Hex. Elastic Nut M8 Brass

232581200

$2.22

350c

Hex. Elastic Stop Nut M6

232561600

$1.15

360

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

360b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

360b.a

Hex. Elastic Nut M8 Brass

232581200

$2.22

360c

Hex. Elastic Stop Nut M6

232561600

$1.15

370

Black, Torx Screw M6 X 35

250000646

$0.98

390

Insert Half Hex Body M6 x 1.0

250100199

$3.19

395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

405

Screw K40 X 10

241140060

$1.48

415

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

420

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Flange Screw M8 X 35

207683544

$1.69

460

Edge Clip

517302785

$0.88

470

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

600

Front Guard Plate | North America, International

705006299

$51.99

610

Hex. Screw M8 X 20

236282054

$1.47

610

Socket Screw M10 x 30 | XT

205003044

$3.17

640

Ring

705004497

$5.19

675

Phillips Screw K40 X 16

250000723

$0.98

700

Gauge Support

705013984

$19.99

703

Extruded Panel Nut M4 X 0.7

250100143

$8.49

704

Interior Gauge Support

705015548

$6.19

706

Gauge Trim

705015547

$22.49

708

Torx Head Screw M4 X 16

250000797

$2.09

720

Grommet

705003264

$4.09

730

RH Wheel Arch Protector

705013925

$19.04

740

RH Front Inner Fender

705011463

$18.49

750

LH Wheel Arch Protector

705013924

$19.04

760

LH Front Wheel Arch Protector

705017001

$16.85

780

Rubber Cover

293250242

$6.99

820

Deep Black, Bumber Kit

715004837

$223.49

822a

Carriage Bolt, M8 X 20

207782044

$1.90

822c

Hex. Flange Elastic Nut M8

233281434

$2.11
