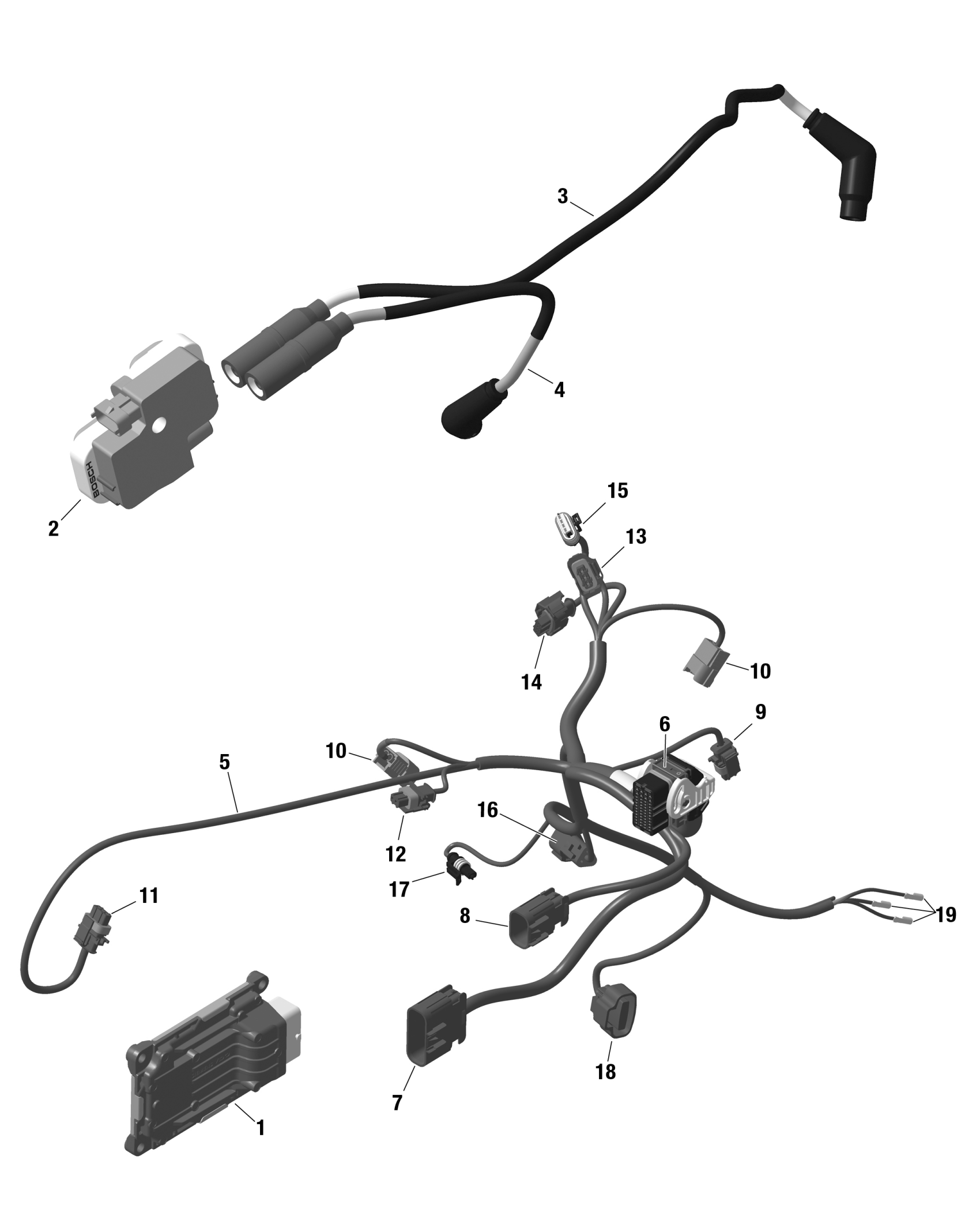

Can-Am Outlander 570 EFI 4X4 - STD - (2TPA-2TPB) 2023 ROTAX - Engine Harness And Electronic Module Diagram

Electronic Box

420666283

$710.74

Electronic Box

420666283

$710.74

Ignition Coil

278001546

$129.32

Housing

710000568

$10.83

Spark Plug Cable, 600 mm, PTO SAE | Except International

420464162

$56.89

Spark Plug Cable, 315 mm, MAG SAE | Except International

420464152

$73.05

Engine Wiring Harness | Except CARB

420464336

$406.12

Female Terminal Housing, 48 Circuits

710001588

$39.62

Housing

710001227

$12.91

Housing

710001927

$8.57

Male Housing, 2 Circuits

278001005

$15.57

Female Housing

515176129

$28.43

Male Housing, 3 Circuits

278000997

$15.57

Male Housing, 2 Circuits

278001005

$15.57

Housing Connector, 3 Circuits

278001829

$17.52

Male Connector

515176410

$51.97

Housing

710001169

$14.37

Male Housing

278002378

$10.91

Male Housing, 1 Circuit

278001012

$12.65

Male Housing, 4 Circuits

710000329

$14.75

Insulated Sheath

278001007

$3.22
