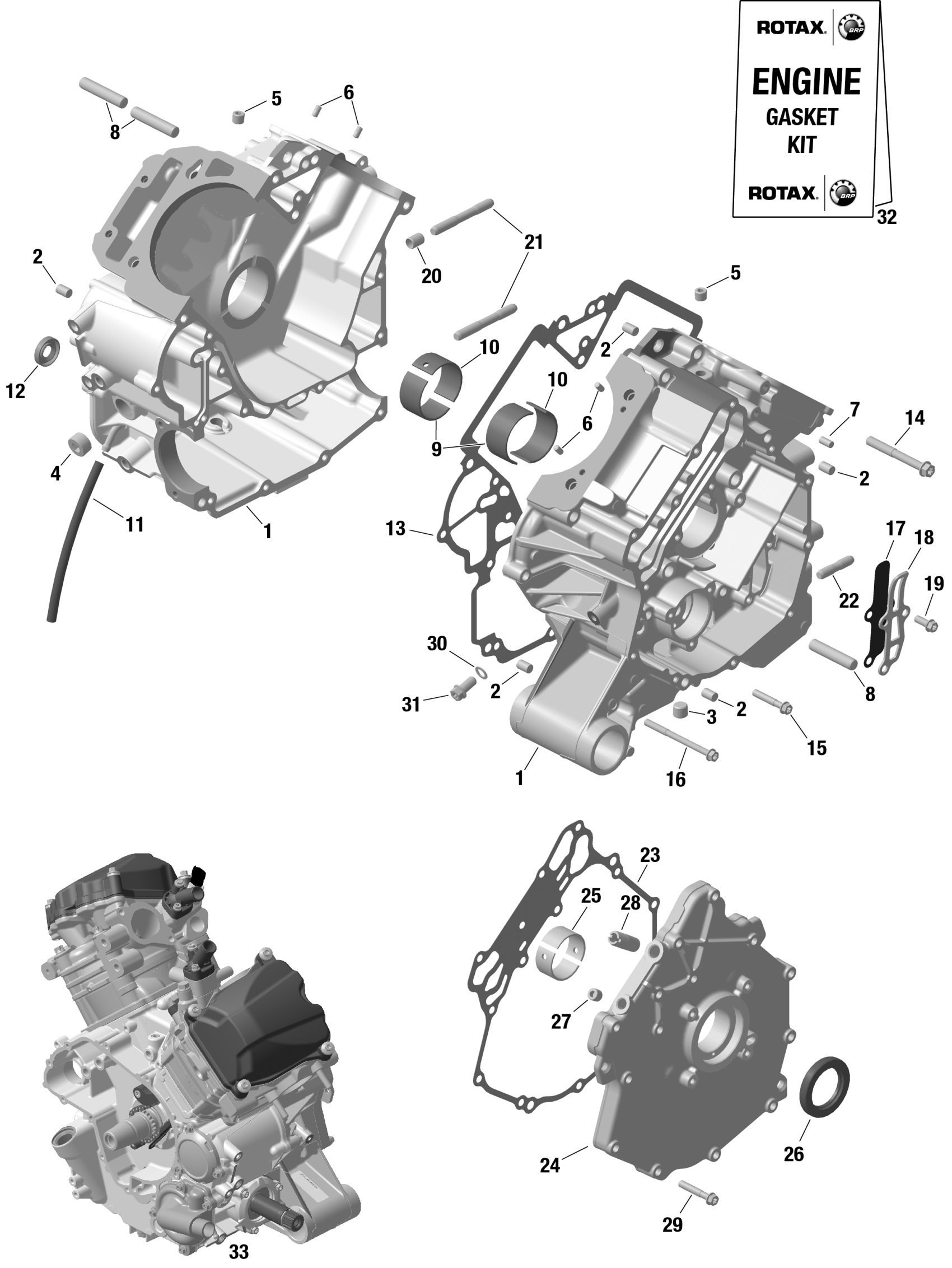

Can-Am Outlander 570 EFI 4X4 - STD - (2TPA-2TPB) 2023 ROTAX - Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1a to 14

420685317

$1,150.49

2

Center Pin 8 X 12

420632010

$4.01

3

Plug Screw M12x1,5

420840658

$7.51

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

5

Plug Screw M10 X 1

420641323

$14.28

6

Drive Pin 5 X 10

420929650

$1.68

7

Needle Pin

420932780

$7.41

8

Location Pin 10 M6x50

420229302

$3.17

9

Plain Bearing

420233960

$23.99

10

Plain Bearing

420233965

$23.99

11

Not Available As Spare Parts

XXX

Unavailable

12

Oil Seal

420650315

$11.65

13

Gasket

420651220

$35.99

14

Torx Flange Screw M8 X 65

420440402

$7.41

15

Torx Flange Screw M6 X 35

420440274

$1.01

16

Torx Flange Screw M6 X 75

420440657

$4.44

17

Reed Valve

420224721

$19.19

18

Reed Valve Stop

420224725

$11.63

19

Torx Flange Screw M6 X 16

420641048

$2.96

20

Dowel Pin 10 X 13

420929670

$11.60

21

Stud

420240816

$7.09

22

Stud

420840718

$11.11

23

Gasket

420651211

$26.49

24

PTO Cover Ass'y | Includes 25a to 29

420612335

$280.99

25

Bearing Sleeve

420233995

$20.99

26

Oil Seal

420631933

$27.49

27

Plug Screw M10 X 1

420641323

$14.28

28

Hose Nipple

420256332

$17.53

29

Torx Flange Screw M6 X 35

420440274

$1.01

30

Sealing Ring

420950141

$2.00

31

Torx Flange Screw M8 X 16

420440852

$4.12

32

Gasket Set

420684170

$391.99

33

Long Block 570

420054920

$3,779.99
