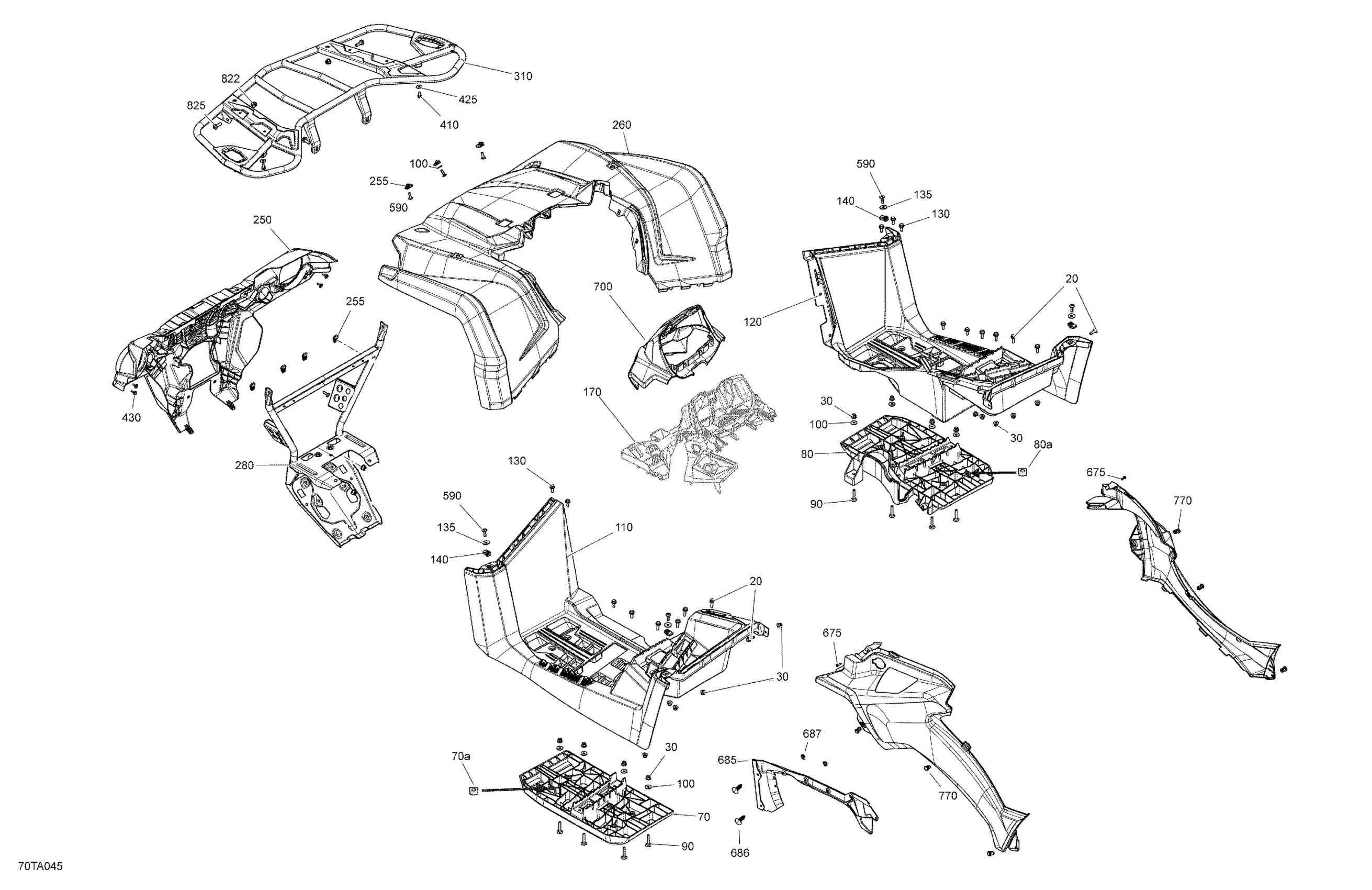

Can-Am Outlander MAX 570 EFI - STD_DPS - International, 2021 Body - Front Section Diagram

Hex. Flange Screw M6 X 20

207662054

$0.83

Flange Elastic Nut M6

233261434

$3.61

LH Structural Footboard

705011540

$108.18

Square Nut M6

232862412

$1.18

RH Structural Footboard

705011542

$95.49

Square Nut M6

232862412

$1.18

Carriage Bolt M6 X 35

207763554

$1.70

Flat Washer 6 mm

234062410

$0.64

LH Footrest Max

705003525

$117.88

RH Footrest Max

705003521

$117.88

Hex. Flange Screw M6 X 20

207662054

$0.83

Flat Washer

224061201

$1.11

Panel Nut M6 X 1.0

250100198

$1.73

Console Support Ass'y | Model-Europe/International

715006101

$52.21

Front Facia | Model-North America, International

705009334

$108.18

Panel Nut M6 X 1.0

250100198

$1.73

Viper Red, LH Front Fender | Model Viper Red

715006848

$184.30

Granite Grey, Front Fender Ass'y

715007947

$184.30

Front Frame

705017337

$236.54

Black, Front Luggage Rack

705006887

$217.13

Hex. Flange Screw M6 X 12

210261250

$1.56

Stainless Steel Flat Washer

234062670

$1.74

Screw M4 X 16

250000725

$2.87

Torx Screw M6 X 20

250000722

$1.34

Phillips Screw K40 X 16

250000723

$0.81

Deflector Body Panel

705014061

$38.78

Push Nut

732610072

$1.72

Black, Dart

293730006

$0.81

Gage Support

705007066

$40.27

Tuflok Plastic Rivet

293150230

$1.21

Elastic Flange Nut M8

233281464

$0.83

Pan Torx Screw M8 X 25

250000898

$1.74
