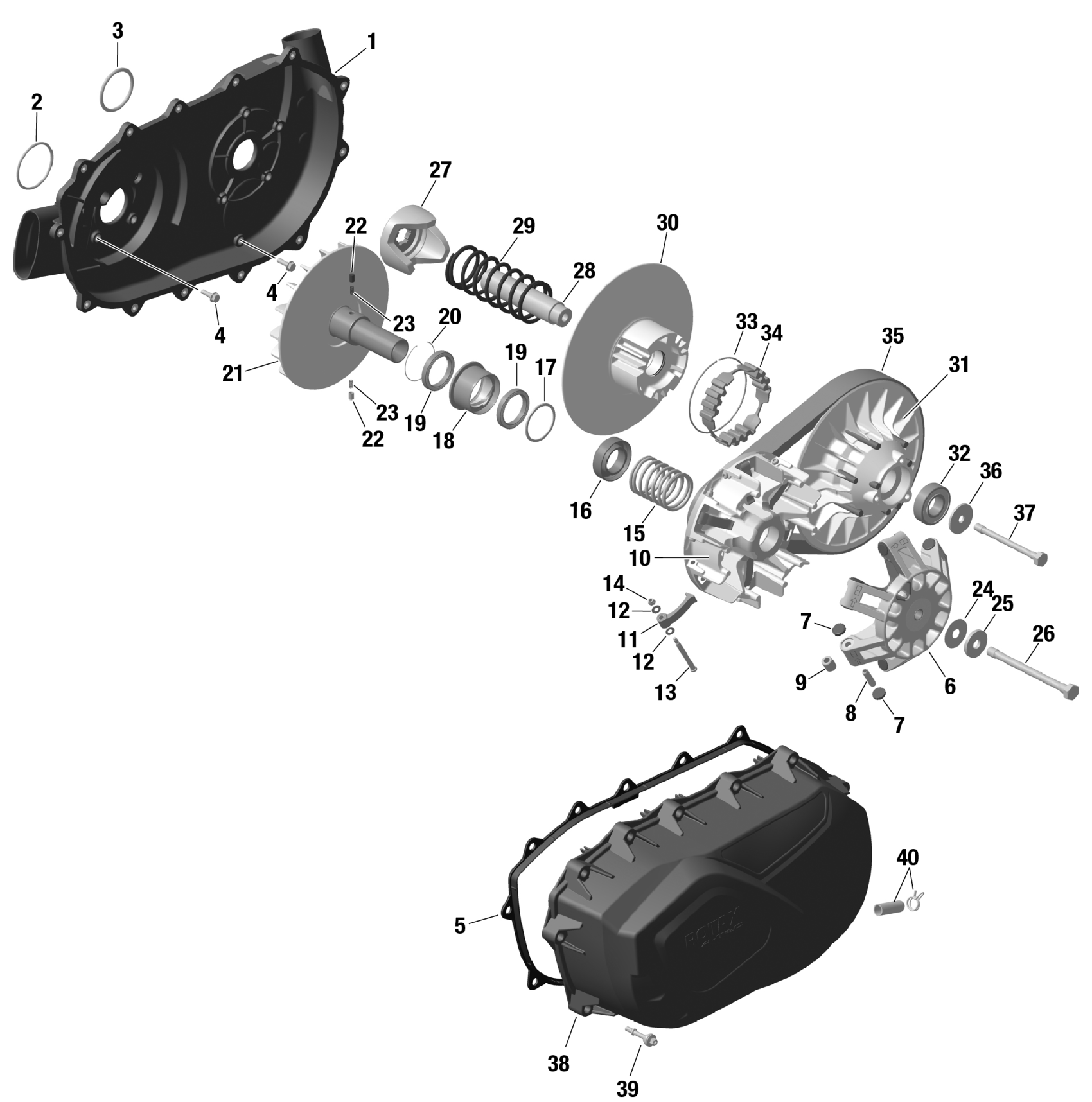

Can-Am Outlander 570 EFI - STD_DPS_XT_Mossy Oak Edition - 2021 Rotax - Transmission - 570 EFI Diagram

#

Description
Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Gasket

420430126

$41.49

6>9

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

7

Slider Shoe Set

420281296

$65.49

8

Roller Axle

417223257

$6.99

9

Roller

417223767

$11.59

10

Outer Haft

420280467

$329.99

11>14

Centrifugal Lever Kit

420248680

$144.99

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Compression Spring, Drive Pulley

420238610

$26.49

16

Seat Spring

420627578

$35.99

17

Friction Washer

420460430

$13.99

18

Drive Pulley Clutch

420257195

$114.99

19

Ball Bearing

420632377

$49.99

20

Retaining Ring

420245951

$5.31

21

Inner Half

420280374

$339.99

22

Spring Sleeve

420229577

$18.49

23

Spring

420239134

$3.06

24

Thrust Washer

420627920

$7.51

25

Spring Washer

420627768

$21.99

26

Hex. Screw M12 X 140

420641859

$24.99

27

Cam

420280701

$153.49

28

Driven Pulley Shaft

420220913

$134.99

29

Compression Spring

420238176

$35.99

30

Inner Half Ass'y

420280786

$308.49

31>34

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

31

Not Available As Spare Parts

XXX

Unavailable

32

Ball Bearing

420932421

$28.49

33

Torque Gear

420660124

$23.49

34

Retaining Ring

420245911

$5.31

35

V-Belt

422280366

$179.99

36

Thrust Washer

420627594

$13.49

37

Hex. Screw M10 X 110

420441485

$12.18

38

Variator Cover

420611397

$219.99

39

Hex Screw M6 X 30

420440568

$8.58

40

Drain Plug Kit

707001179

$9.63
