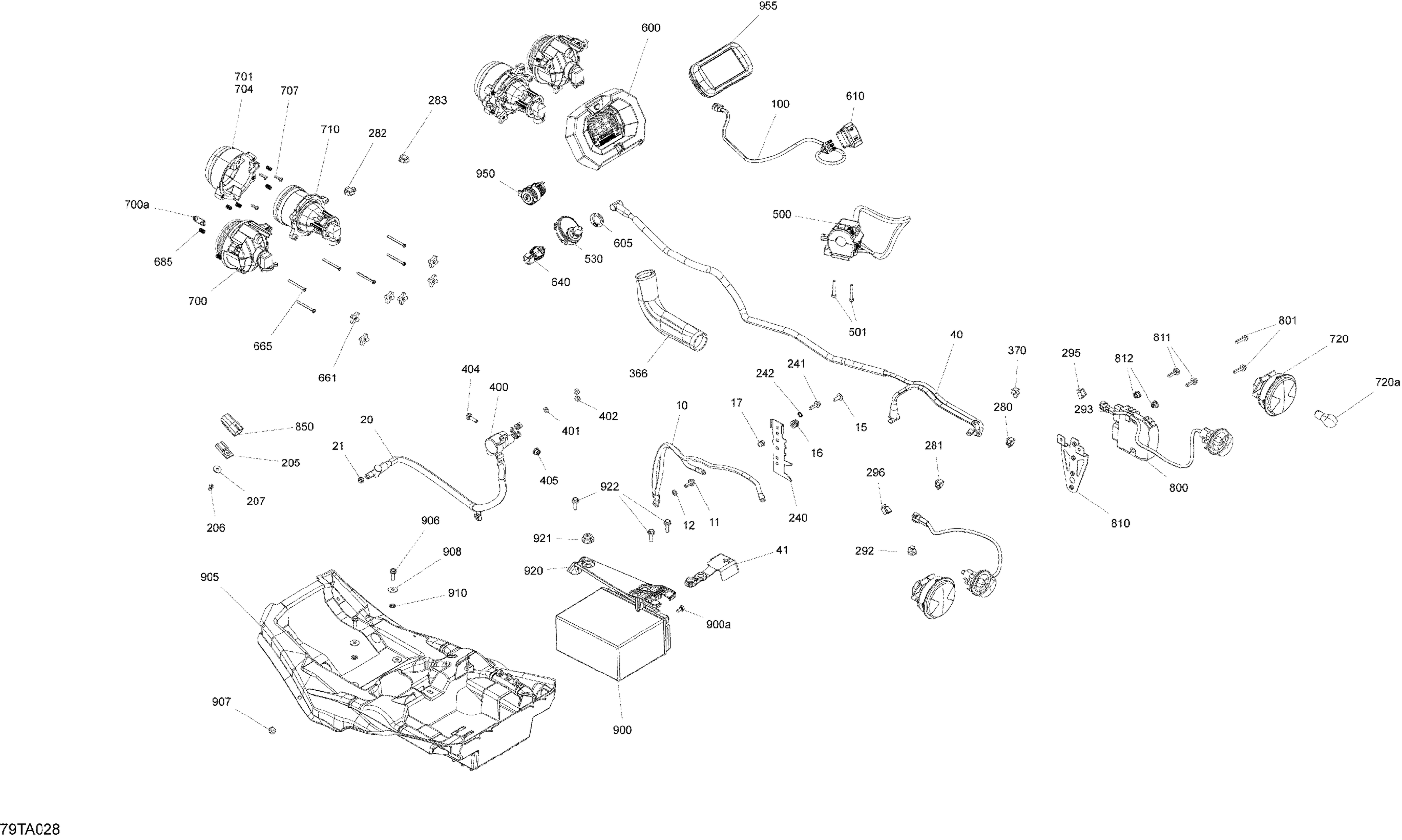

Can-Am Outlander MAX 1000R EFI - XTP_LTD - International, 2021 Electric - System Diagram

#

Description
Price

10

Ground Cable

710004382

$19.99

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

12

Lock Washer Helical M6

234161601

$1.49

15

Torx Head Screw M6 X 16

250000717

$2.19

16

Flat Washer

224061121

$1.49

17

Domed Nut M6

232361493

$2.09

20

Positive Cable

710004377

$27.99

21

Elastic Stop Nut M6

232561434

$1.99

40

Cable

710007437

$32.99

41

Battery Cable Cap

710006729

$7.20

100

Gauge Wiring Harness

710007503

$23.49

205

Clip

270000141

$11.99

206

Pop Rivet 3/16"

390402300

$1.49

207

Washer | DS 650 X

391301600

$1.49

240

Connector Bracket

710004118

$5.40

241

Hex. Flange Screw M6 X 20

210262040

$2.19

242

External Serrated Lock Washer 6 mm

234461608

$1.49

280

Clip

414227300

$1.69

281

Clip

414227300

$1.69

282

Clip

414227300

$1.69

283

Clip

414227300

$1.69

292

Clip

414227300

$1.69

293

Clip

414227300

$1.69

295

Clip

414227300

$1.69

296

Clip

414227300

$1.69

366

Soft Protection Sleeve

710007255

$2.54

370

Mount Dart

293730040

$1.49

400

Starter Relay

710007777

$49.99

401

Lock Washer Helical M6

234161601

$1.49

402

Elastic Stop Nut M6

232561434

$1.99

404

Hex. Flange Screw M6 X 20

207662054

$1.49

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

500

Switch Handle

710006134

$71.99

501

Socket Head Screw M5 X 35

205053588

$1.99

530

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

600

Multifunction Gauge MID | Model XTP

710007409

$369.99

605

Safety Nut (DESS Switch)

278002963

$3.39

610

Switch Mode | XTP

710006717

$23.49

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$59.99

661

Handle

572106600

$10.99

665

Hex. Screw K40 X 45

250000718

$2.19

685

Spring

517168600

$7.59

700

Low Beam | Includes 54 to 55

710006177

$119.99

700a

Bulb 12V 55W

715900141

$41.49

701

RH High Front Housing

710002291

$28.99

704

LH High Front Housing

710002292

$22.49

707

Phillips Screw K40 X 16

250000723

$1.49

710

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

Halogen Bulb

415129249

$42.99

720

Tail Light Ass'y | Includes 32 to 33

710001645

$84.99

720a

Bulb

520000758

$9.29

800

Voltage Regulator

710005842

$189.99

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.99

810

Rectifier Support

710001752

$9.29

811

Hex. Flange Screw M6 X 20

207662044

$2.09

812

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

850

Housing

710003006

$8.99

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$149.95

900a

Battery Bolt Kit

250000282

$7.49

905

Battery Support

710008370

$50.99

906

Hexagonal Head Screw

210262050

$2.19

907

Rubber Bumper

293830005

$8.29

908

Stainless Steel Flat Washer

234062670

$2.19

910

Push Nut

732610072

$2.29

920

Retaining Plate

710009129

$8.69

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$1.49

950

DC Outlet

710001248

$38.99

955

GPS - Call your local BRP dealership | Package LTD Europe

710005035

Unavailable
