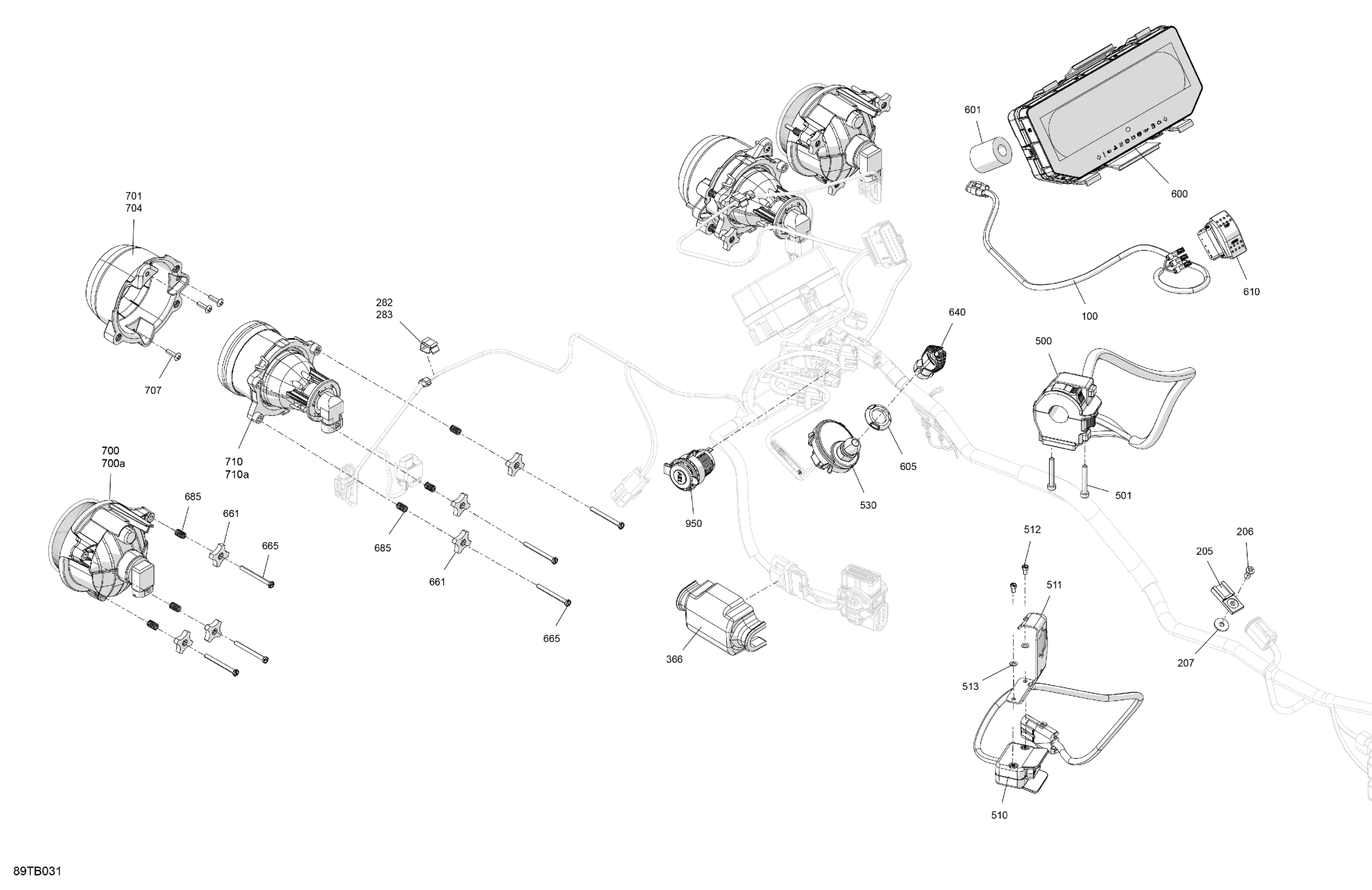

Can-Am Outlander MAX 1000R EFI - LTD - 2022 Electric - Front Section Diagram

Description

Price

100

Gauge Wiring Harness

710007503

$23.49

205

Clip

270000141

$11.49

206

Pop Rivet 3/16 X ,551

293150301

$0.77

207

Washer | DS 650 X

391301600

$0.48

282

Clip

710010204

$1.67

283

Clip

710010204

$1.67

366

Soft Protection Sleeve

710007255

$2.54

500

Switch Handle

710006134

$71.99

501

Socket Head Screw M5 X 35

205053588

$1.90

510

Winch Switch

710007327

$13.18

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$10.99

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

513

Flat Washer 4 mm

234040600

$0.55

530

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

600

Multifunction Gauge

710005253

$1,049.99

601

Ferrite

415130224

$15.89

605

Specialized Nut

278004274

$3.28

610

Switch Mode | XTP

710006717

$23.49

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

661

Handle

572106600

$10.33

665

Hex. Screw K40 X 45

250000718

$2.11

685

Spring

517168600

$7.39

700

Low Beam | Includes 54 to 55

710006177

$119.99

700a

Bulb 12V 55W

715900141

$41.49

701

RH High Front Housing

710002291

$28.99

704

LH High Front Housing

710002292

$22.49

707

Phillips Screw K40 X 16

250000723

$0.98

710

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

Halogen Bulb

415129249

$41.49

950

DC Outlet

710001248

$37.99
