04- Drive - Front - Common Parts

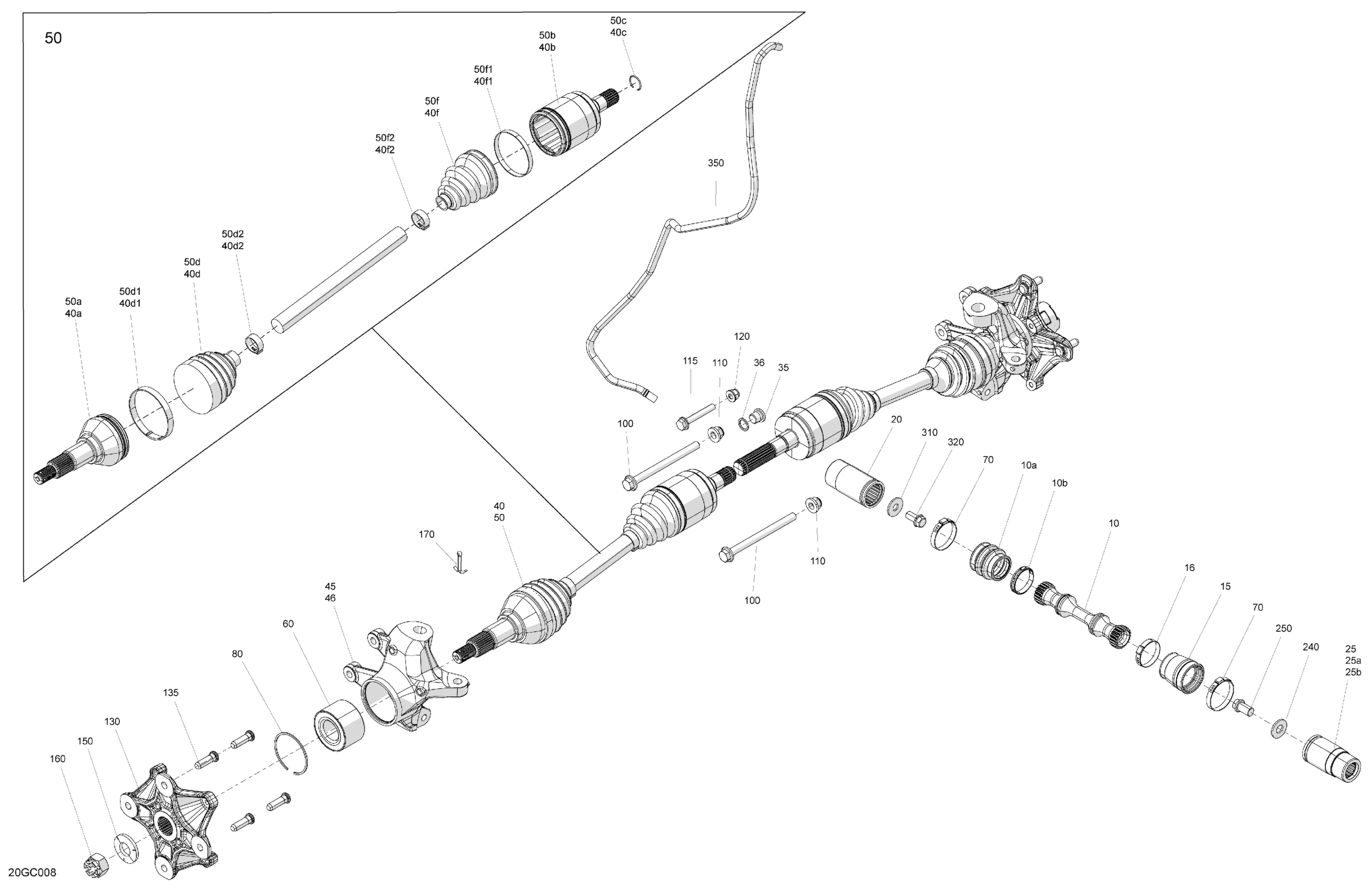

Can-Am 007 - Outlander 570 EFI - MR - North America, 2023 04- Drive - Front - Common Parts Diagram
#
10
Propeller Shaft | Includes 1 to 2
705400913
Unavailable
10a
Rubber Boot
715900118
Unavailable
10b
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
15
Rubber Boot
705401093
Unavailable
16
Oetiker Gear Clamp
293650199
Unavailable
20
Coupling Sleeve
705401969
Unavailable
25
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
25a
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
25b
Wear Ring | 4X4
705400036
Unavailable
35
Fill Level Plug | 4X4
705500504
Unavailable
36
Copper Washer | 4X4
705500506
Unavailable
40
RH Front - Premium CV Axle
705401428
Unavailable
40a
CV Joint
715900297
Unavailable
40b
RH Plunging CV Joint
715900300
Unavailable
40c
Circlip Joint | Not shown
705401349
Unavailable
40d
CV Boot Kit, Wheel Side
715900298
Unavailable
40d1
Oetiker Clamp, Large
715900262
Unavailable
40d2
Oetiker Clamp, Small
715900317
Unavailable
40f
CV Boot Kit, Differential Side
715900299
Unavailable
40f1
Oetiker Clamp, Large
715900318
Unavailable
40f2
Oetiker Clamp, Small
715900317
Unavailable
45
LH Knuckle
705403307
Unavailable
46
RH Knuckle
705403308
Unavailable
50
LH Front - Premium CV Axle
705401429
Unavailable
50a
CV Joint
715900297
Unavailable
50b
LH Plunging CV Joint
715900301
Unavailable
50c
Circlip Joint | Not shown
705401349
Unavailable
50d
CV Boot Kit, Wheel Side
715900298
Unavailable
50d1
Oetiker Clamp, Large
715900262
Unavailable
50d2
Oetiker Clamp, Small
715900317
Unavailable
50f
CV Boot Kit, Differential Side
715900299
Unavailable
50f1
Oetiker Clamp, Large
715900318
Unavailable
50f2
Oetiker Clamp, Small
715900317
Unavailable
60
Ball Bearing
293350150
Unavailable
70
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
80
Circlip
293370019
Unavailable
100
Hex. Flange Screw M10 X 125
230602546
Unavailable
110
Hex. Flange Elastic Nut M10
233201436
Unavailable
115
Hex. Flange Screw M8 X 55
207685544
Unavailable
120
Hex. Flange Elastic Nut M8
233281414
Unavailable
130
Wheel Hub
705503257
Unavailable
135
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
150
Conical Spring Washer M18
250200171
Unavailable
160
Hex. Flange Castellated Nut M18
232291413
Unavailable
170
Cotter Pin
250400071
Unavailable
240
Flat Washer M12
250200102
Unavailable
250
Hex Flange Screw M12 X 20
250001042
Unavailable
310
Flat Washer M10 | 4X4
250200014
Unavailable
320
Hex Flange Screw M10 X 20 S.Grip
250001046
Unavailable
350
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
Unavailable
