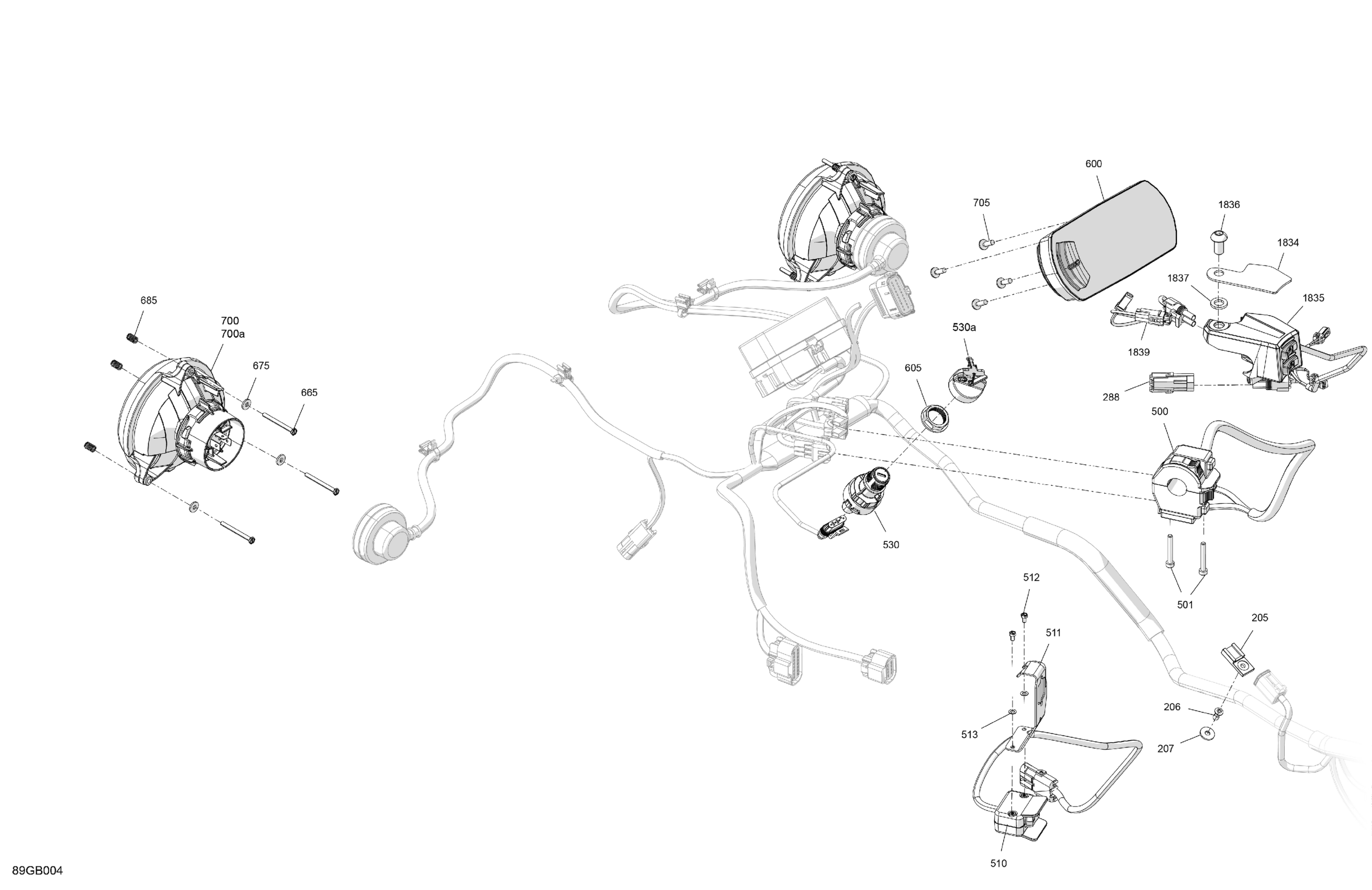

Can-Am Outlander 570 EFI - Mossy Oak Edition - (3ZNA) 2022 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

288

Connector Ass'y

710001642

$9.22

500

Multifunction Switch

710008887

$64.58

501

Socket Head Screw M5 X 35

205053588

$1.56

510

Winch Switch

710007327

$11.83

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$9.11

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

513

Flat Washer 4 mm

234040600

$0.46

530

Ignition Switch | Includes 530 to 530a

710008938

$64.58

530a

Blank Ignition Key

715900934

$17.66

600

Multifunction Gauge Compact Mono

710008108

$383.05

605

Specialized Nut

710007923

$2.05

665

Hex. Screw K40 X 45

250000718

$1.74

675

Flat Washer

517225900

$0.17

685

Spring

517168600

$6.91

700

Low Beam

710003900

$106.12

700a

Bulb, 12V 35/35W

710000871

$32.28

705

Torx Screw K50 X 16

250000720

$1.39

1834

Top Plate

715004008

$23.05

1835

Multifonction Housing Ass'y

710004990

$147.66

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.22

1837

Washer

503192496

$0.75

1839

Cable

710004567

$13.98
