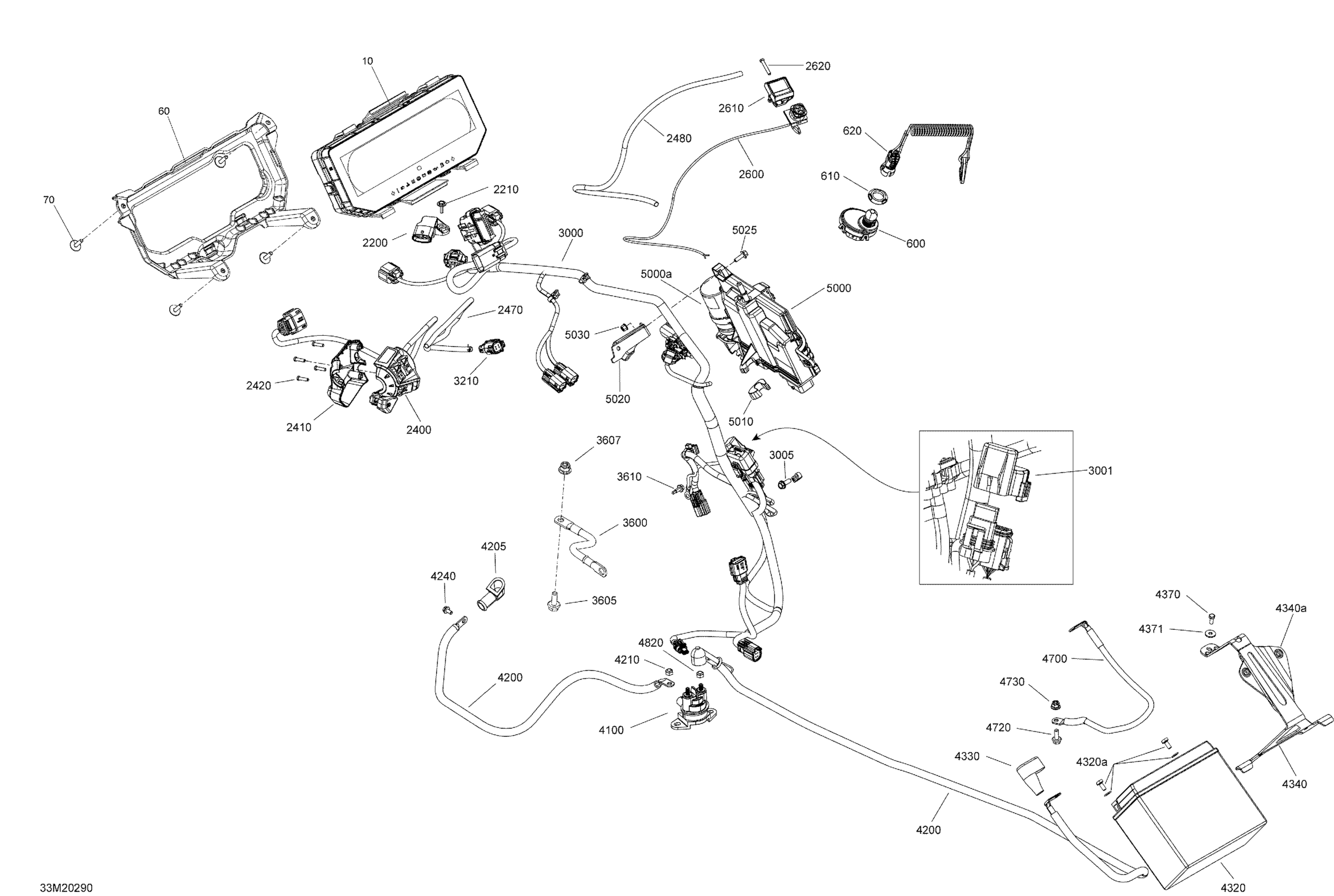

Ski-Doo 007 - MXZ 850 E-TEC - X - North America, 2020 10- Electric - System Diagram

Multifunction Gauge Full Size Mono

515178227

$559.99

Support Gauge

515178278

$7.59

Screw M4 X 16

250000725

$3.49

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Safety Nut (DESS Switch)

278002963

$3.28

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

Pressure And Temperature Sensor

707000995

$88.99

Screw M4 X 16

250000725

$3.49

LH Switch Housing

515178196

$284.99

Housing Plate

515177147

$20.99

Torx Screw

250000671

$1.01

Braided Sleeve

415130141

$55.99

Braided Sleeve

415130141

$55.99

Emergency Stop Switch

515177931

$76.49

Emergency Stop Switch Support

515177310

$9.19

Torx Screw #8-18

250000263

$1.04

Chassis Wiring Harness

515178605

$309.99

Diagnostic Cap

515178435

$8.79

Hex. Flange Screw M6 X 16

250001062

$1.57

4 Circuits Female Housing

515178177

$12.18

Ground Wire

515178248

$24.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M5 X 16

250000911

$0.85

Starter Relay

278003012

$42.49

Positive Wire

515178553

$29.99

Protector Cap

710000495

$10.99

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Screw M5 X 10

207551044

$4.12

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

Battery Bolt Kit

250000282

$7.29

Protector Cap | STD

710001817

$11.12

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

Insert

293450275

$12.99

Hex. Screw M5 X 12

207151244

$0.90

Washer | DS 650 X

391301600

$0.48

Ground Wire

515178155

$26.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Elastic Stop Nut M6

232561414

$0.55

Igniton Module

512061093

$589.99

Capacitor

515177272

$90.99

Rubber Stopper

515178430

$2.11

Module Support

515178159

$4.44

Hex. Flange Screw M5 X 16

207651646

$2.11

Flange Elastic Nut M5

233251434

$2.00
